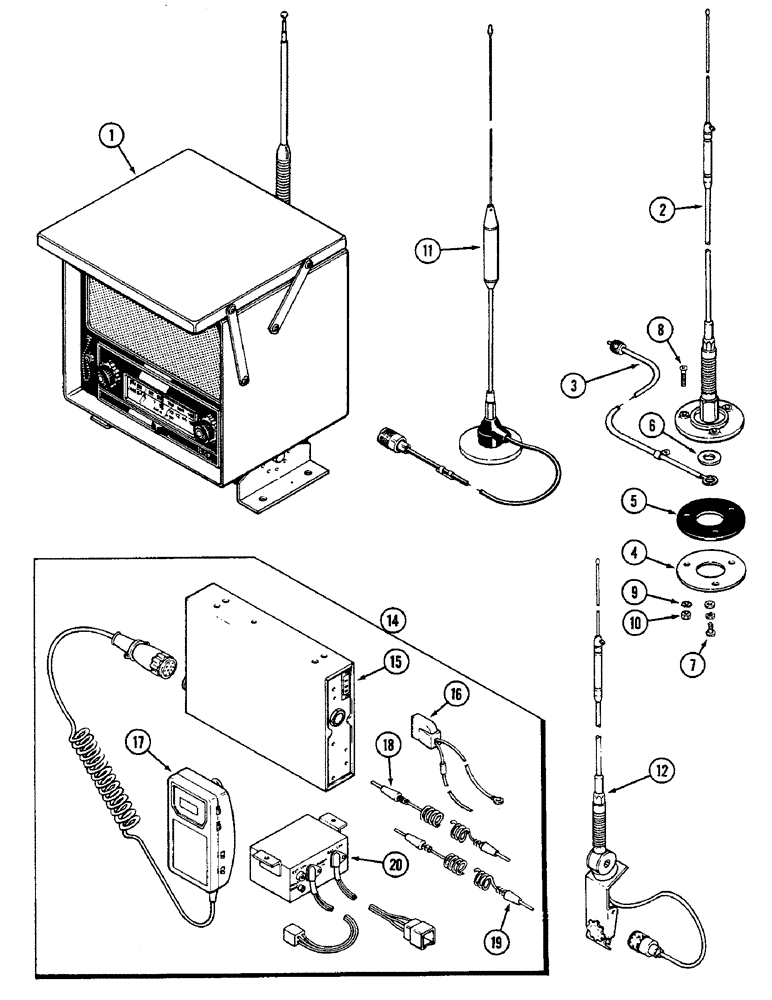

Запчасти Case IH 2290 (9-606) - CAB, FENDER MOUNTED RADIO (09) - CHASSIS/ATTACHMENTS

1

A164225

RADIO

- AM-FM (With antenna)

1шт.

2

A149939

ANTENNA

MAST ASSEMBLY - CB radio antenna (Base mounted), Includes: Ref. 3-10

1шт.

3

NSS

NOT SOLD SEPARAT

CABLE - antenna

1шт.

4

NSS

NOT SOLD SEPARAT

BASE - antenna

1шт.

5

NSS

NOT SOLD SEPARAT

FLANGE - insulator

1шт.

6

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64 inch (6 x 13 x 1 MM)

1шт.

7

182-525

SCREW,Sl Pan Hd, #10 - 32 x 3/8"

- round slotted head, no. 10-32 x 3/8 inch

1шт.

8

182-538

SCREW,Slotted Pan Hd, #10-32 x 1"

- round slotted head, no. 10-32 x 1 inch

3шт.

9

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- hex sems, No. 10-32

4шт.

11

A147274

ANTENNA - CB magnetic mounting

1шт.

12

A162517

ANTENNA

- CB radio (Roof gutter mounted)

1шт.

14

A162520

CONTROL KIT - CB radio (See note), Includes: Ref. 15-20

1шт.

15

NSS

NOT SOLD SEPARAT

UNIT - CB radio transceiver, attachment kit

1шт.

16

NSS

NOT SOLD SEPARAT

HARNESS - transceiver, cb-radio attachment kit

1шт.

17

NSS

NOT SOLD SEPARAT

MICROPHONE - CB transmitting, radio attachment kit

1шт.

18

NSS

NOT SOLD SEPARAT

WIRE - relay control, 3/32 inch diameter plug-in (2 MM), cb-radio attachment kit

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE - output, 9/64 inch diameter plug-in (3 MM), cb-radio attachment kit

1шт.

20

NSS

NOT SOLD SEPARAT

RELAY - control box, cb-radio attachment kit

1шт.
