Запчасти Case IH 2290 (2-030) - OIL FILTER AND HEAT EXCHANGER, ENGINE SERIAL NUMBER 10175026 AND AFTER, 504BDT DIESEL ENGINE (02) - ENGINE

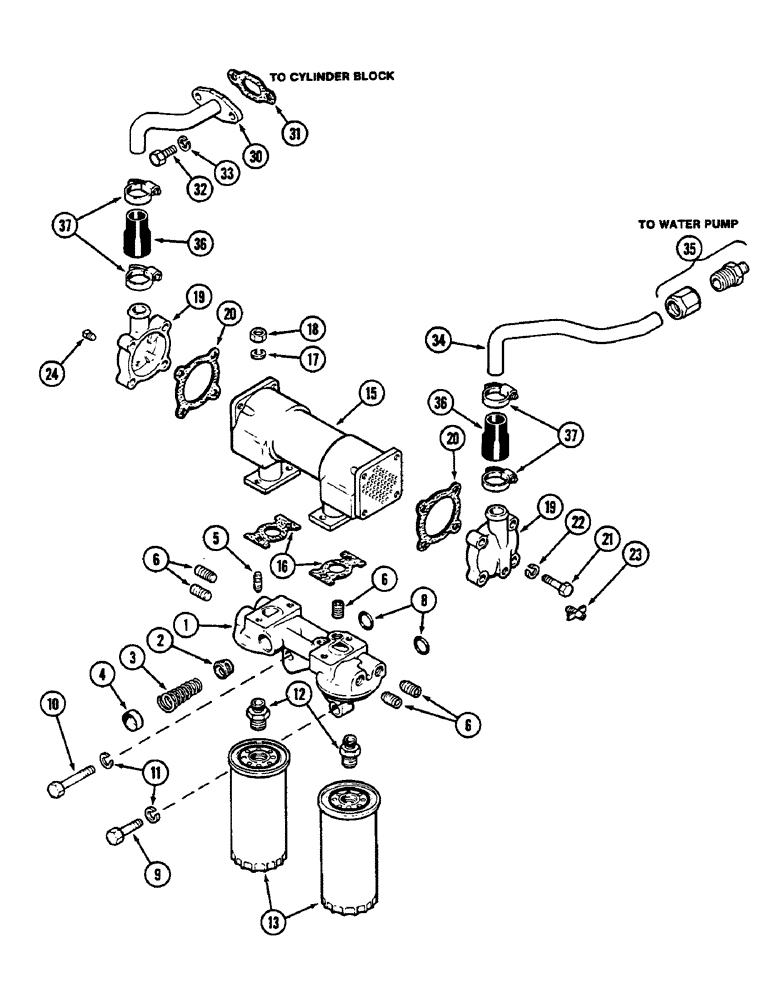

Схема запчастей Case IH 2290 - (2-030) - OIL FILTER AND HEAT EXCHANGER, ENGINE SERIAL NUMBER 10175026 AND AFTER, 504BDT DIESEL ENGINE (02) - ENGINE
6
11
16
6
23
10
9
35
5
6
18
24
20
31
15
37
12
4
19
21
17
36
13
19
3
20
2
22
34
8
37
1
30
33
32
36

Артикул

Название

Примечание

Количество

1

A64107

BASE

ASSEMBLY - oil filter (Order A154541), Includes: Ref. 2-6

1шт.

2

A21090

VALVE

- relief filter

1шт.

3

A58669

SPRING

- relief valve, 2-13/16 inch (71 MM) free length

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup type, 1-1/4 inch (32 MM)

1шт.

5

G102128

BOLT

- 3/8 NC x 1-1/2 inch

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- square socket head, 1/2 inch PT

1шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 1-1/8 x 15/16" x 3/16 inch (32 x 33 x 5 MM)

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

11

195-33

WASHER,1/2"

- 1/2 x 1-1/16 x 1/8 inch

2шт.

12

A63816

BLOCK

ADAPTER -, Serial Range: element-base

2шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - filter, oil (JI Case installed only) 6-7/8 inch long (175 MM) (Order A44081)

2шт.

13

A44081

ENGINE OIL FILTER

ELEMENT - filter, oil (Service only) 8-5/8 inch long (219 MM)

1шт.

15

A63917

COOLER

EXCHANGER - heat, oil

1шт.

16

A65359

GASKET

- heat exchanger to filter base

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

A64349

HOOD

COVER - end, heat exchanger

2шт.

20

A63920

GASKET

- cover

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

217-107

VALVE

- drain, heat exchanger

1шт.

24

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8 inch PT

1шт.

30

A64350

TUBE

- head, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

- tube

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

A166133

TUBE

- heat exchanger to water pump (Replaces A64352)

1шт.

35

222-2020

FITTING

CONNECTOR - tube

1шт.

36

A64353

HOSE

- end cover to water tubes

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 to 44 MM)

4шт.

Выбрано товаров: 31
