Запчасти Case IH 2290 (9-580) - CAB, AIR FILTER AND BLOWER (09) - CHASSIS/ATTACHMENTS

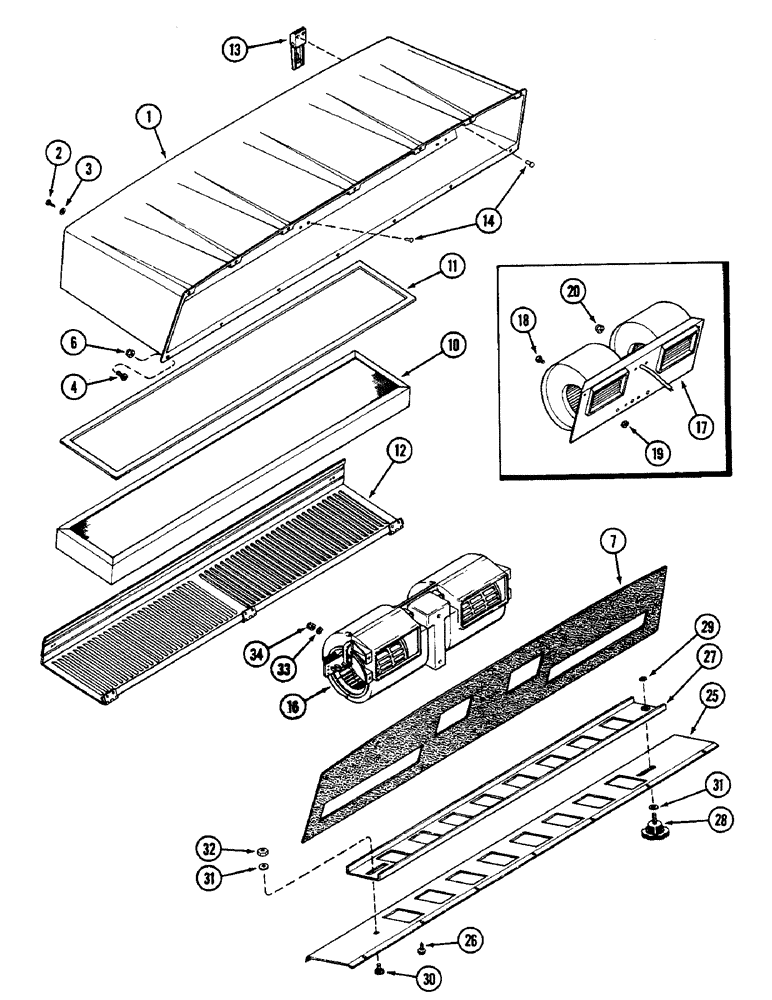

Схема запчастей Case IH 2290 - (9-580) - CAB, AIR FILTER AND BLOWER (09) - CHASSIS/ATTACHMENTS
19
31
18
31
29
3
33
34
14
25
17
11
2
12
20
28
26
7
13
4
10
30
6
16
32
27
1

Артикул

Название

Примечание

Количество

1

F64772

COVER

HOUSING - filter and blower (Replaces F64058)

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - round head, self tapping, no. 10-16 x 3/4 inch

7шт.

3

F63765

WASHER

- finishing

7шт.

4

163-37

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1", Gr 5

- hex slotted, no. 10-32 x 1 inch

7шт.

6

131-859

JAM NUT

- hex lock, 1/4 inch NC (replaces 131-71)

7шт.

7

F63592

SEAL

-, Serial Range: housing-cab

1шт.

10

F64318

AIR FILTER

FILTER - cab air

1шт.

11

F63669

SEAL

- filter to housing (Cab serial no. 12014850 and after)

1шт.

11

F64515

SEAL

- filter to housing (Prior to cab serial no. 12014850)

1шт.

12

F98302

COVER

- filter (Replaces F89926)

1шт.

13

F64066

LATCH

- filter cover

2шт.

14

151-518

RIVET,Pop, 1/8" x .440"

- pop, 1/8 inch

10шт.

16

REF

INSTRUCTION

BLOWER - cab air (See page 9-586)

1шт.

17

REF

INSTRUCTION

BLOWER - cab air (See pages 9-582 and 9-584)

1шт.

18

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex head, self tapping, no. 10-16 x 1/2 inch

2шт.

19

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

2шт.

20

353-700

BUSHING

- blower wire, 3/8 inch hole (10 MM)

1шт.

25

F64081

PLATE

- air circulating (Order F64705)

1шт.

26

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex head, self tapping, no. 10-16 x 1/2 inch

15шт.

27

F98175

DOOR

- air circulating

1шт.

28

F64253

KNOB

- door

1шт.

29

T39518

SNAP RING,#25, Ext

Ring, Snap, , knob #25, Ext

1шт.

30

111-102

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G2

BOLT - carriage, 5/16 NC x 3/4 inch (Grade 2)

1шт.

31

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 MM)

1шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex lock, 5/16 inch NC

1шт.

33

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64 inch (6 x 13 x 1 MM)

4шт.

34

86625057

NUT,#10-24, GB

NUT - lock, 1/4 inch NC

4шт.

Выбрано товаров: 27
