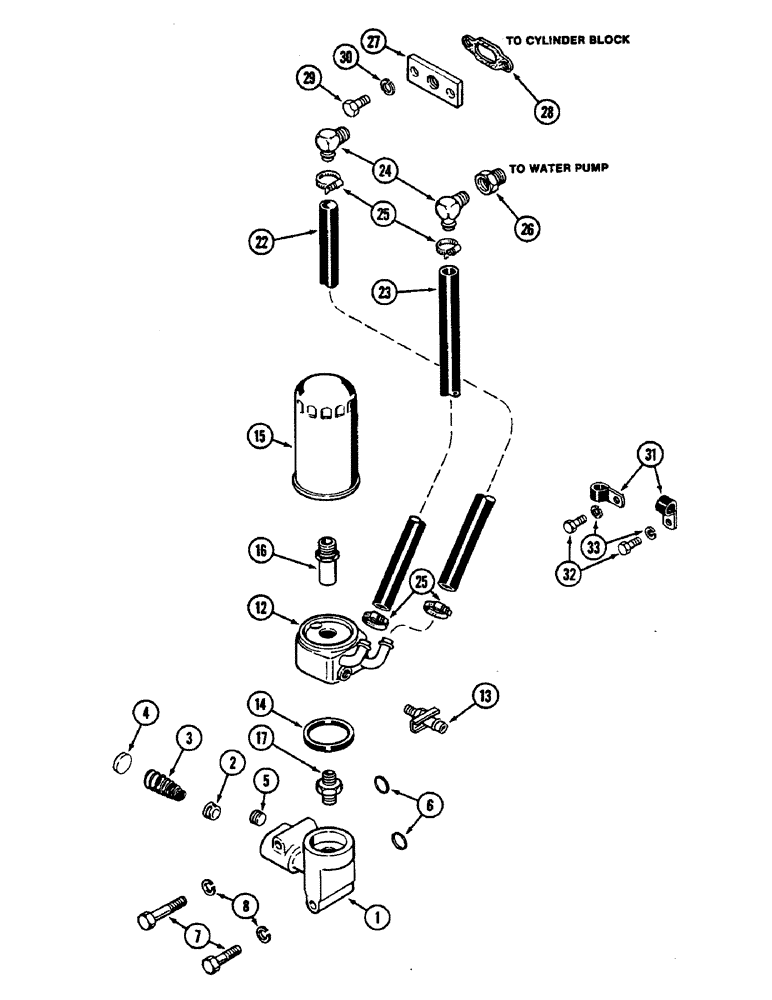

Запчасти Case IH 2290 (2-028) - OIL FILTER AND HEAT EXCHANGER, PRIOR TO ENGINE SERIAL NUMBER 10175026, 504BDT DIESEL ENGINE (02) - ENGINE

A65849

BASE

ASSEMBLY - oil filter and heat exchanger (Order A154788), Includes: Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - mounting (Reference no. A65848)

1шт.

2

A21090

VALVE

- relief

1шт.

3

A58669

SPRING

- relief valve, 2-13/16 inch free length (71 MM) (Replaces A146897)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup, 1-1/4 inch (32 MM)

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2 inch PT

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 15/16 x 1-5/16 x 1/8 inch (24 x 33 x 5 MM)

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

8

195-33

WASHER,1/2"

- 1/2 x 1 x 1/8 inch

4шт.

12

A66295

COOLER

ASSEMBLY - oil

1шт.

13

217-107

VALVE

- drain

1шт.

14

A153806

SEALING RING

- oil cooler to base, 2-21/32 x 3 x 3/16 inch square (69 x 76 x 5 MM square) (Replaces A66410)

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT - filter, oil (J I Case installed only) 6-7/8 inch long (175 MM) (Order A44081)

1шт.

15

A44081

ENGINE OIL FILTER

ELEMENT - filter, oil (Service only) 8-5/8 inch long (219 MM)

1шт.

16

A66992

ADAPTER

- upper, 1 NF external threads and 3/4 inch NF internal threads

1шт.

17

A58831

ADAPTER

- lower, 1 NC external thread and 3/4 inch NF external threads

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - oil cooler to block, 15 inch long (381 MM) (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - to water pump, 21 inch long (533 MM) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8 ID x 1 inch OD x 50 foot (16 x 25 MM x 15 M) (Cut as required)

1шт.

24

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 90 degree with barb end

2шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch (14 to 27 MM)

4шт.

26

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducing, 3/4 to 1/2 inch (To water pump)

1шт.

27

A66993

FLANGE

- outlet hose (To block)

1шт.

28

A58670

GASKET

- flange

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

NLS

NO LONGER SERVICED

CLIP - hose

2шт.

32

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.
