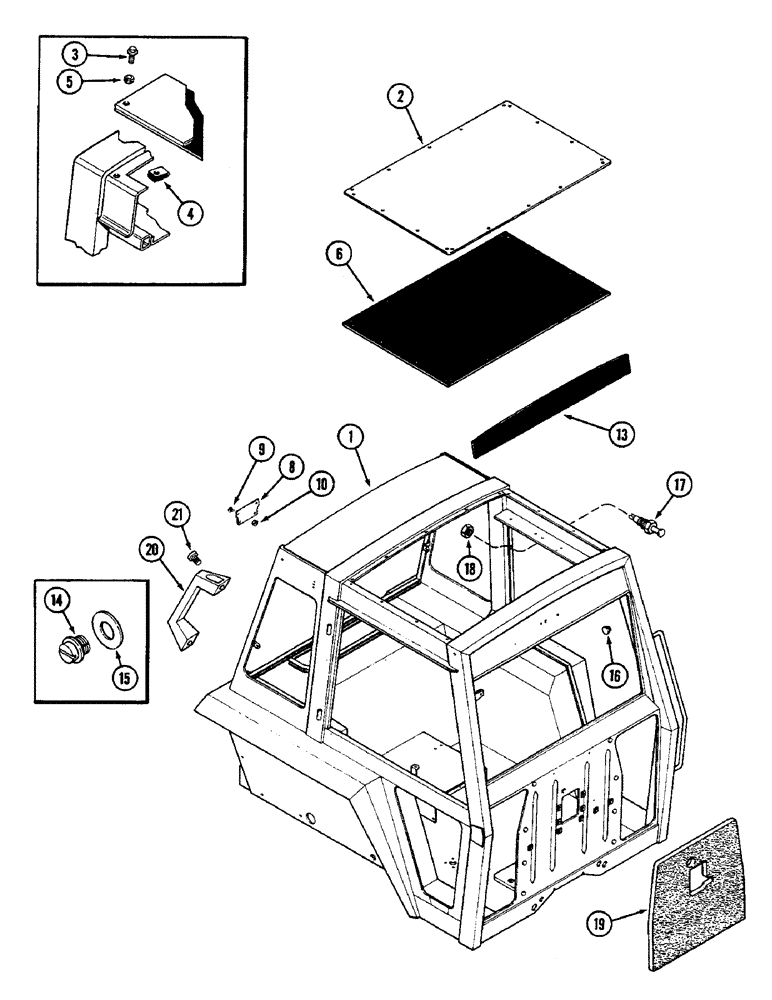

Запчасти Case IH 2290 (9-554) - CAB ASSEMBLY, P.I.N. 8841101 AND AFTER (09) - CHASSIS/ATTACHMENTS

F98292

CAB - with heater and radio speaker and antenna (Machinery item)

1шт.

F98294

SHELL

CAB - with heater, air conditioning and radio speaker and antenna (Machinery item)

1шт.

F89951

CAB - with heater (Machinery item)

1шт.

F89953

CAB - with heater and air conditioning (Machinery item)

1шт.

F89955

CAB - with heater and radio speaker and antenna (Machinery item)

1шт.

F89957

CAB - with heater, air conditioning and radio speaker and antenna (Machinery item)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab (See note), roof

1шт.

2

F64794

ROOF

- cab (Replaces F64316), frame

1шт.

3

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

- hex washer head, 1/4 NC x 1 inch, frame and roof

18шт.

4

131-617

NUT,Ret, J, 1/4"-20

-J type speed, 1/4 inch, frame and roof

18шт.

5

F64531

SEALING WASHER

WASHER - sealing, frame and roof

18шт.

6

F64781

SEAL

- roof, foam (Replaces A64532 seal and F64430 foam), frame

1шт.

8

A149306

COVER

- rear, fuel tank water trap opening, frame and roof

1шт.

9

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- slotted pan head, no. 10-24 x 1/2 inch, frame and roof

4шт.

10

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - Keps, no. 10-24, frame and roof

4шт.

13

A42582

DECAL

- front upper panel, frame and roof

1шт.

14

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes, Frame & Roof Slotted, 1/2"-13

4шт.

15

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- 1/2 x 1 x 1/16 inch (13 x 25 x 2 MM), frame and roof

4шт.

16

353-408

PLUG,Dome, .750" hole, Nylon

- push type, 3/4 inch (Front post without air conditioning), frame and roof

2шт.

17

F63895

SWITCH

- dome light, door opening, frame and roof

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

Frame and roof 5/16"-18, G5

1шт.

19

A147357

PAD

- firewall noise, frame and roof

1шт.

20

F64547

HANDLE

- rear (If equipped), frame and roof

2шт.

21

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

BOLT - pan head, 1/4 NC x 3/4 inch, frame and roof

4шт.
