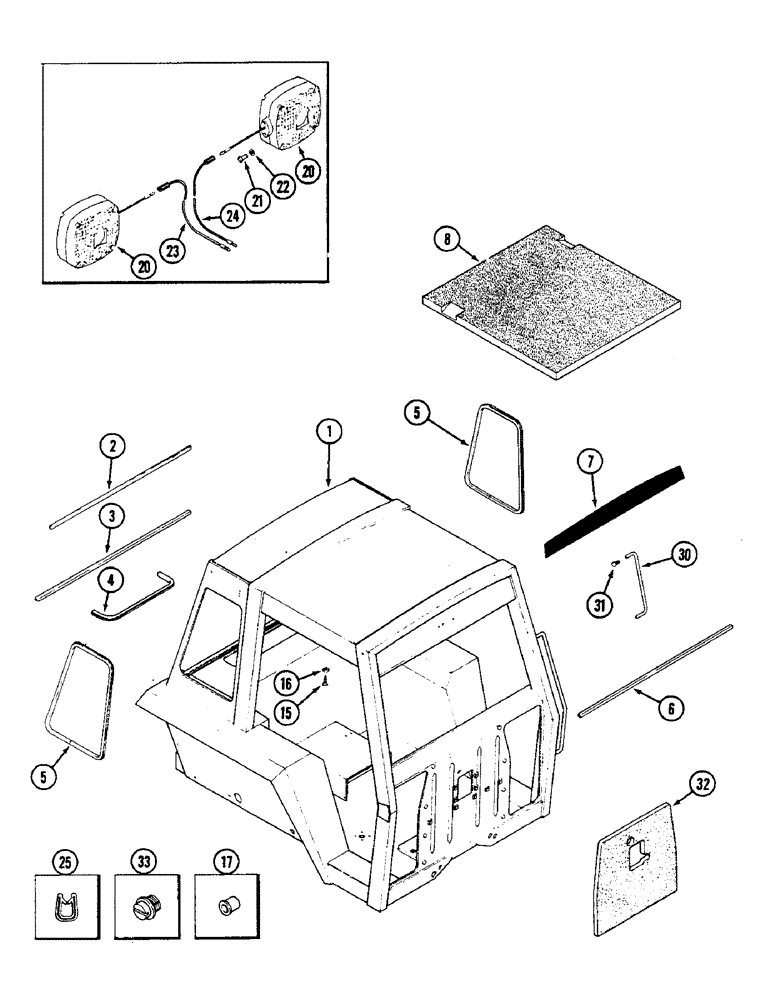

Запчасти Case IH 2290 (9-550) - 4 POST PROTECTIVE FRAME, PRIOR TO P.I.N. 8841101 (09) - CHASSIS/ATTACHMENTS

F89958

FRAME - protective (Machinery item), Includes: Ref. 1-24

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - welded (Order F89958)

1шт.

2

NSS

NOT SOLD SEPARAT

MOULDING - rear window, upper 45 inch long (1 143 MM) (Order F64277)

1шт.

3

NSS

NOT SOLD SEPARAT

MOULDING - rear window, lower 51 inch long (1 295 MM) (Order F64277)

1шт.

4

NSS

NOT SOLD SEPARAT

MOULDING - horizontal window 32-3/4 inch long (832 MM) (Order F64277)

1шт.

5

NSS

NOT SOLD SEPARAT

MOULDING - rear side window 81-1/2 inch long (2 070 MM) (Order F64277)

2шт.

6

NSS

NOT SOLD SEPARAT

MOULDING - front window 49-1/2 inch (1 257 MM) (Order F64277)

1шт.

7

A42582

DECAL

- front panel (Black)

1шт.

8

F64125

LINING

HEADLINER - foam

1шт.

15

187-188

SCREW - special, no. 10-16 x 3/4 inch

19шт.

16

F63765

WASHER

- finishing

19шт.

17

353-700

BUSHING

- Heyco

2шт.

20

REF

INSTRUCTION

LAMP - flasher warning (See page 4-166)

2шт.

21

113-38

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

SCREW - flat head, 1/4 NC x 5/8 inch

4шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

23

F63878

ELECTRICAL WIRE

WIRE - warning light, right, 120 inch long (3 048 MM)

1шт.

24

F63879

WIRE - warning light, left, 75 inch long (1 905 MM)

1шт.

25

F64277

SEAL

MOULDING - window 50 feet roll (15.2 M)

1шт.

30

A143834

HANDLE

- 4 post entrance

1шт.

31

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

32

A147357

PAD

- firewall noise

1шт.

33

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

4шт.
