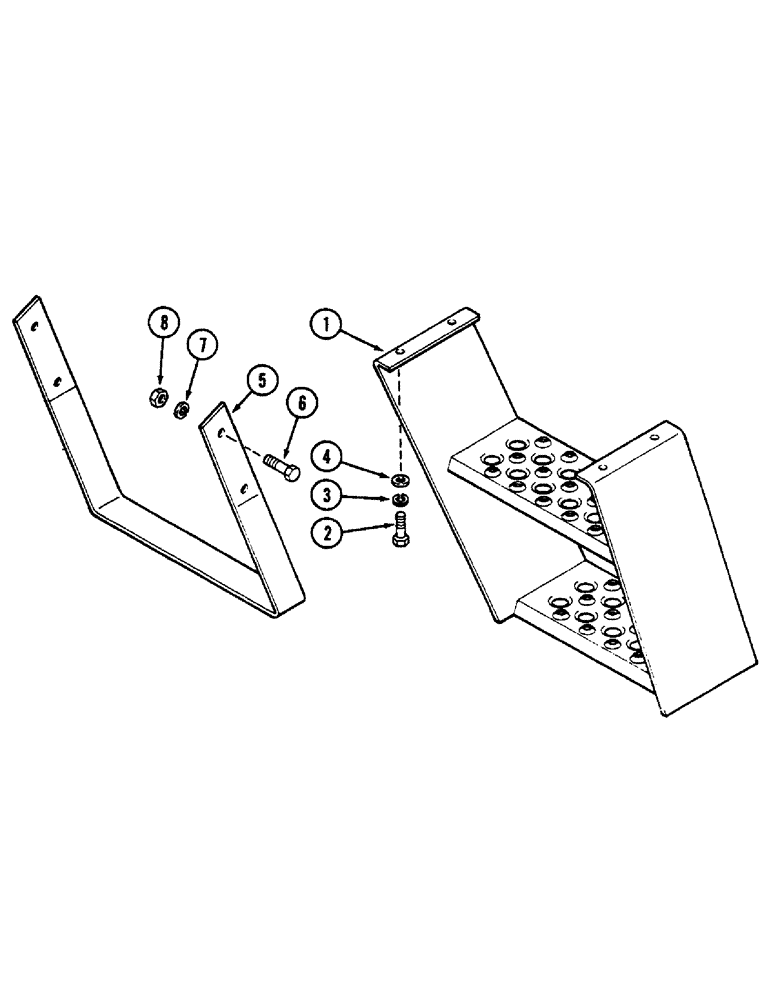

Запчасти Case IH 2290 (9-548) - STEPS (09) - CHASSIS/ATTACHMENTS

1

F89892

STEP

- mounting

1шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32 inch (11 x 22 x 2 MM)

4шт.

A67445

ATTACHMENT

- step extension (Machinery item), Includes: Ref. 5-8

1шт.

5

NSS

NOT SOLD SEPARAT

STEP - extension (Order A67445)

1шт.

6

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Step extension Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Step extension 1/2"

4шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

Step extension 1/2"-13, G5

4шт.
