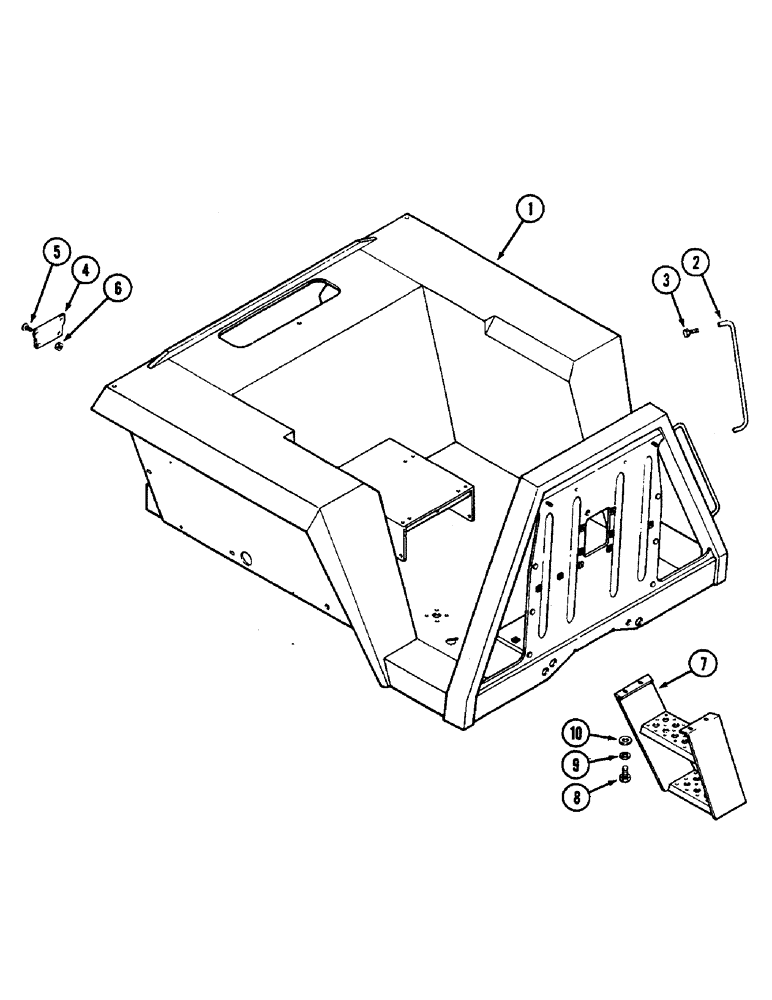

Запчасти Case IH 2290 (9-544) - PLATFORM AND FENDERS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

F98234

PLATFORM AND FENDERS - (Welded assembly)

1шт.

2

A143834

HANDLE

- mounting

1шт.

3

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

4

A149306

COVER

- rear, fuel tank water trap

1шт.

5

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, no. 10-24 x 1/2 inch

4шт.

6

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - Keps, no. 10-24

4шт.

7

F89892

STEP

- mounting

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32 inch (11 x 22 x 2 MM)

3шт.
