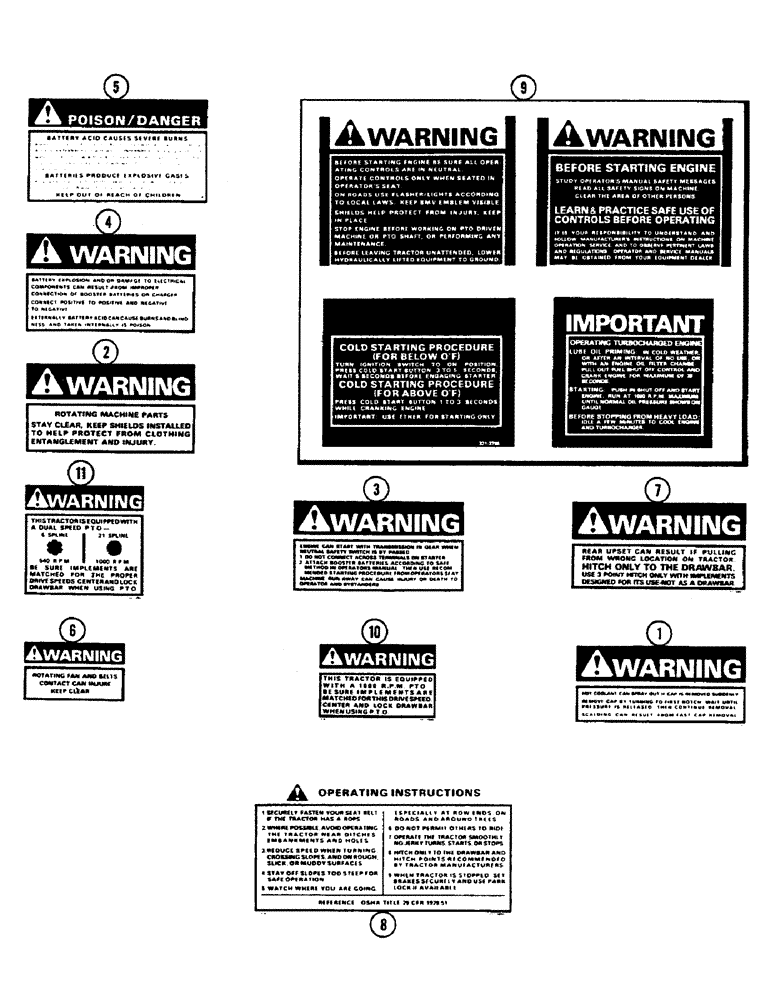

Запчасти Case IH 2290 (9-540) - DECALS, SAFETY KIT (09) - CHASSIS/ATTACHMENTS

A143220

DECAL

KIT - safety, Includes: Ref. 1-11

1шт.

1

321-3708

DECAL

- radiator (On top of hood)

1шт.

2

321-3710

DECAL

- PTO (On shield)

1шт.

3

321-3709

DECAL

- starting (On starter)

1шт.

4

321-3707

DECAL

- battery booster cables (Above battery box)

1шт.

5

321-2996

DECAL

- battery acid

2шт.

6

321-3596

DECAL

- fan belt (On side panel plate)

2шт.

7

321-3845

DECAL

- drawbar (Left rear platform)

1шт.

8

321-3895

DECAL

- OSHA (Under right rear windows)

1шт.

9

321-3766

DECAL

- operating instruction (On cab headliner)

1шт.

10

321-3900

DECAL

- 1000 RPM PTO (Not used this machine)

1шт.

11

321-3901

DECAL

- dual speed PTO (On left side of shield)

1шт.

A46520

DECAL

KIT - decal, French language (See note), Includes: Ref. 1-11, and Decals

1шт.

321-6660

DECAL

- operating instructions, french language

1шт.

1

321-5584

DECAL

- cooling system, french language

1шт.

2

321-6647

DECAL

- rotating PTO, french language

1шт.

3

321-5581

DECAL

- starting, french language

1шт.

4

321-5582

DECAL

- battery cables, french language

1шт.

5

321-5531

DECAL

- battery hazard, french language

1шт.

6

321-5604

DECAL

- fan belt, french language

2шт.

7

321-5580

DECAL

- hitch instruction, french language

1шт.

10

321-5621

DECAL

- 1000 RPM PTO, french language

1шт.

11

321-5585

DECAL

- dual speed, 540/1000 RPM, french language

1шт.

321-5791

DECAL

- hitch pin warning, french language

1шт.

321-5583

DECAL

- operating instruction (Not used this application), french language

1шт.

321-5619

DECAL

- operating instruction (Not used this application), french language

1шт.

321-5790

DECAL

- implement lift, french language

1шт.
