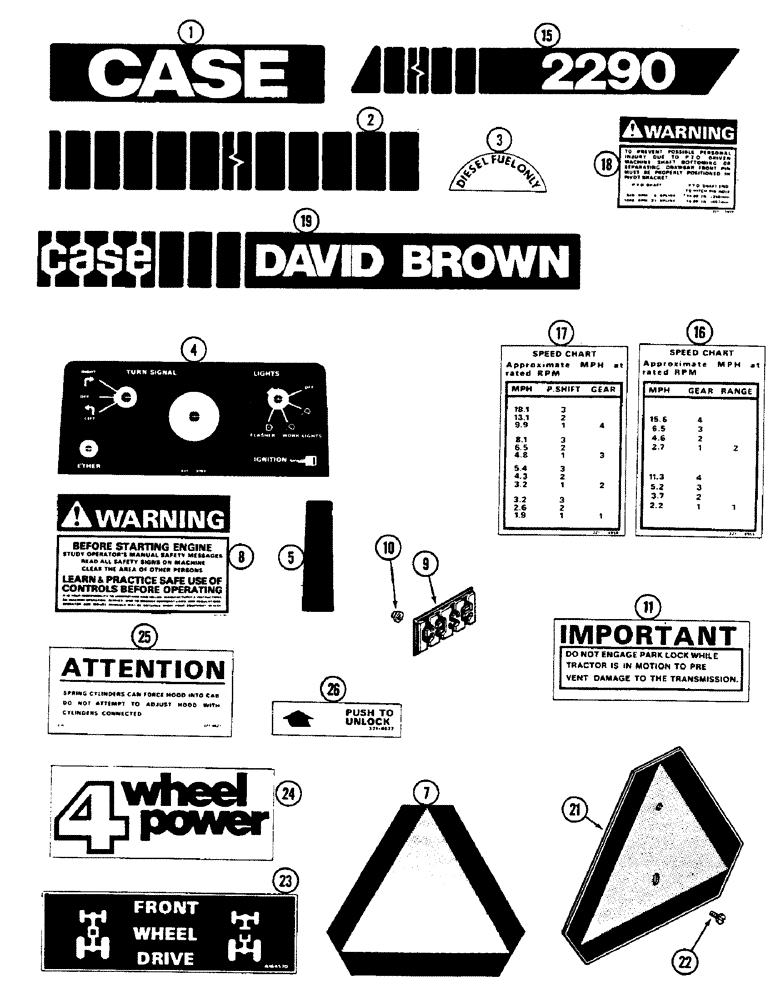

Запчасти Case IH 2290 (9-538) - DECALS, TRACTOR KIT (09) - CHASSIS/ATTACHMENTS

A46505

DECAL

KIT - decal, tractor, Includes: Ref. 1-11

1шт.

1

321-4911

DECAL

- Case (Right and left decal panel)

2шт.

2

321-4910

DECAL

- with stripes (Right and left decal panel)

2шт.

3

321-4493

DECAL

- diesel fuel (On filler cap)

1шт.

4

321-5889

DECAL

- control panel (On steering column)

1шт.

5

321-4142

DECAL

- sight line (On hood)

1шт.

7

321-4311

DECAL

- slow moving vehicle (On fuel tank) (Prior to tractor P.I.N. 9913388)

1шт.

8

321-3705

DECAL

- starting instructions

1шт.

9

321-4739

EMBLEM

MEDALLION - front, Case mark

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self thread, 1/4 inch (Medallion to grille)

2шт.

11

321-5264

DECAL

- park lock

1шт.

15

321-4914

DECAL

- 2290 (Right fender panel)

1шт.

15

321-4915

DECAL

- 2290 (Left fender panel)

1шт.

16

321-4956

DECAL

- speed chart (Mechanical shift)

1шт.

17

321-4958

DECAL

- speed chart (Power shift)

1шт.

18

321-5459

DECAL

- warning, hitch pin (Right rear platform skirt)

1шт.

19

321-5266

DECAL

- Case, David Brown (Export only)

1шт.

21

A163604

DECAL

EMBLEM - SMV (Order D123347) (Tractor P.I.N. 9913388 and after)

1шт.

22

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- Phillips pan head, 1/4-20 x 3/8 inch

2шт.

23

A164570

DECAL

- MFD control

1шт.

24

A165370

DECAL - 4 wheel power (MFD Tractor)

2шт.

25

321-4621

DECAL

- tilt hood adjust

2шт.

26

321-4622

DECAL

- hood unlatch instruction

1шт.

A46520

DECAL

KIT - decal, French language (See note), Includes: Ref. 3-26, and Decals

1шт.

3

321-5793

DECAL

- diesel fuel, french language

1шт.

8

321-6646

DECAL

- starting instructions, french language

1шт.

11

321-5789

DECAL - park lock engagement, french language

1шт.

25

321-5624

DECAL - tilt hood adjust, french language

2шт.

26

321-5625

DECAL

- hood unlatch, french language

1шт.

321-6206

DECAL - steering console (Not used this application), french language

1шт.

321-5792

DECAL - 12 speed chart (Not used this application), french language

1шт.

321-5627

DECAL - 12 speed chart (Not used this application), french language

1шт.

321-5626

DECAL - 8 speed chart (Not used this application), french language

1шт.

321-5861

DECAL - fuse location (On firewall), french language

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover), french language

1шт.
