Запчасти Case IH 2290 (2-024) - EXHAUST MUFFLER, 504BDT DIESEL ENGINE (02) - ENGINE

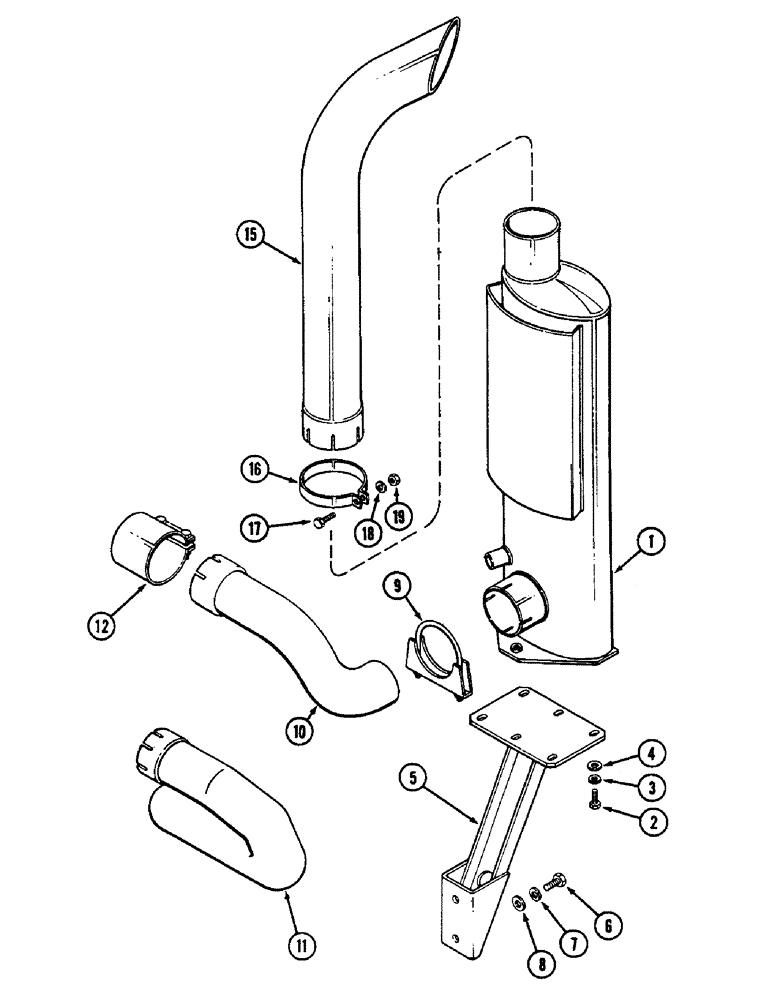

Схема запчастей Case IH 2290 - (2-024) - EXHAUST MUFFLER, 504BDT DIESEL ENGINE (02) - ENGINE
19
15
7
5
16
9
6
4
8
12
18
10
3
11
17
1
2

Артикул

Название

Примечание

Количество

1

A147065

MUFFLER

- aspirated

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

3шт.

5

A147066

SUPPORT

- muffler

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 5/64 inch (14 x 35 x 2 MM)

2шт.

9

A145577

CLAMP

- exhaust, Serial Range: pipe-muffler

1шт.

10

A147064

PIPE

- exhaust, Serial Range: turbocharger-muffler

1шт.

11

A164590

PIPE

- exhaust, trubocharger to muffler (MFD Tractor)

1шт.

12

A149249

ASSEMBLY

SEAL - clamp, exhaust, Serial Range: pipe-turbocharger

1шт.

15

A141777

EXTENSION

- muffler exhaust

1шт.

16

A162895

CLAMP

- extension

1шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

A147065

MUFFLER

horizontal

1шт.

For balance of this set up - see cat 2290 without cab book RAC8-1080 figure 22 & 23.

1шт.

A160886

exhaust, turbo to muffler, horizontal

1шт.

For balance of this set up - see cat 2290 without cab book RAC8-1080 figure 22 & 23.

1шт.

A145577

CLAMP

ex. pipe to muffler, horizontal

1шт.

For balance of this set up - see cat 2290 without cab book RAC8-1080 figure 22 & 23.

1шт.

A160891

muffler, horizontal

1шт.

For balance of this set up - see cat 2290 without cab book RAC8-1080 figure 22 & 23.

1шт.

A149352

extention pipe, horizontal muffler

1шт.

For balance of this set up - see cat 2290 without cab book RAC8-1080 figure 22 & 23.

1шт.

A160536

front support, horizontal muffler

1шт.

For balance of this set up - see cat 2290 without cab book RAC8-1080 figure 22 & 23.

1шт.

A160836

COVER

BRACKET rear support, horizontal muffler

1шт.

For balance of this set up - see cat 2290 without cab book RAC8-1080 figure 22 & 23.

1шт.

A160610

aspirator, horizontal muffler

1шт.

For balance of this set up - see cat 2290 without cab book RAC8-1080 figure 22 & 23.

1шт.

Выбрано товаров: 33
