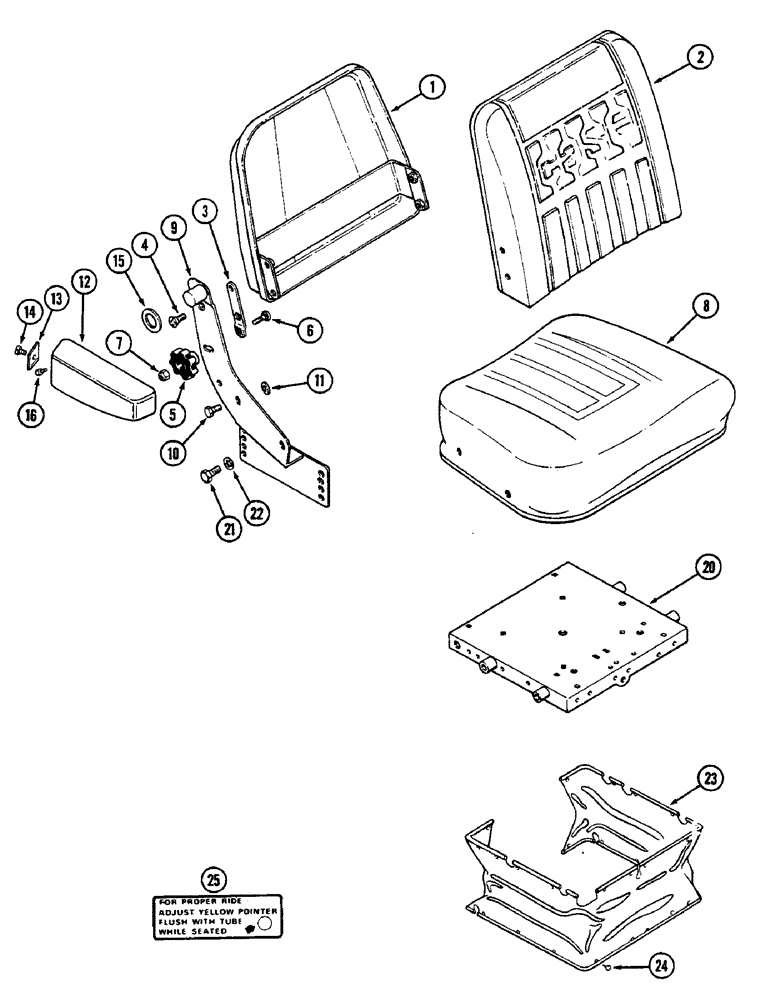

Запчасти Case IH 2290 (9-520) - SEAT, VINYL WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

A139547

SEAT

AND SUSPENSION ASSEMBLY - vinyl without swivel, Includes: Ref. 1-25, and Backrest Assy

1шт.

A45571

CUSHION

BACKREST ASSEMBLY - cushion, Includes: Ref. 1, 2, 3

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - backrest

1шт.

2

NSS

NOT SOLD SEPARAT

PAD AND COVER - backrest

1шт.

3

A47342

LINK

- tilt, backrest

2шт.

4

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head Phillips, 3/8 NC x 1 inch

2шт.

5

A45487

BUTTON

KNOB - tilt, backrest

2шт.

6

A45527

CARRIAGE BOLT

- right carriage, 3/8 NC x 1-1/2 inch

2шт.

7

131-206

NUT,3/8"-16

NUT - hex jam, 3/8 inch NC

2шт.

8

A45570

CUSHION

SEAT - cushion

1шт.

9

A45579

BRACKET

- right side (Shown)

1шт.

9

A45580

BRACKET

- left side

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex, 1/2 NC x 1-1/2 inch

2шт.

11

A45519

WASHER

SPACER - cushion

12шт.

12

A45489

ARMREST

- right (Shown)

1шт.

12

A45488

ARMREST

- left

1шт.

13

A45584

COVER

PLATE - right armrest (Shown)

1шт.

13

A45483

WASHER

COVER PLATE - left armrest

1шт.

14

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self tapping, no. 10 NC x 5/8 inch

1шт.

15

192-33

LOCK WASHER,1 1/8"

WASHER, LOCK, 1 1/8"

2шт.

16

178-17

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - hex socket head, no. 10 NC x 1/2 inch

2шт.

20

A45577

PLATE

- upper housing

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

23

A45576

BOOT

COVER - suspension

1шт.

24

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2 inch

24шт.

25

321-3721

DECAL

- instruction

1шт.
