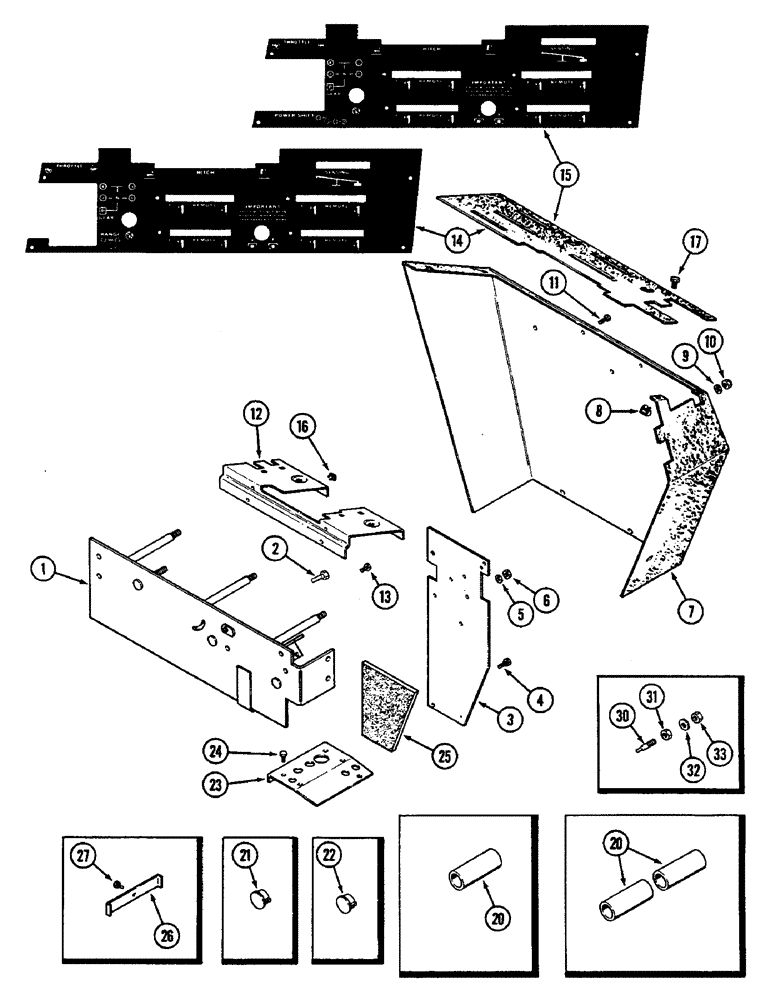

Запчасти Case IH 2290 (9-508) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

A165870

SUPPORT

- control console (Replaces A143809)

1шт.

2

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

3

A141562

SUPPORT

- gear shift

1шт.

4

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex self tapping, 1/4 x 3/4 inch

1шт.

5

195-2029

WASHER,7/16" x 1 1/4" x .134"

- 7/16 x 1-1/4 x 5/32 inch (11 x 32 x 4 MM)

2шт.

6

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex jam center lock, 3/8 inch

3шт.

7

A145028

GUARD

SHROUD - console

1шт.

8

131-102

SPRING NUT,Ret, 1/4"-20

4шт.

9

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 MM)

3шт.

10

129-883

NUT,Crown, 3/8"-16

- hex low crown, 3/8 inch

3шт.

11

187-1900

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex self tapping lock

6шт.

12

A145149

SUPPORT

- console cover

1шт.

13

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

14

A141668

COVER

- console (With mechanical shift) (Includes decal)

1шт.

15

A141669

COVER

- console (With power shift) (Includes decal)

1шт.

16

A67319

NUT

- console cover hold down

6шт.

17

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex self tapping, 1/4 x 3/4 inch

8шт.

20

A67318

BUSHING

SPACER - control lever (See insets)

1шт.

21

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16 inch (In platform)

2шт.

22

353-410

PLUG,Dome, .875" hole, Nylon

- nylon, 7/8 inch (In platform) (without hitch)

2шт.

23

A145830

PLATE

- shift cable mounting

1шт.

24

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - hex, 3/8 NC x 1 inch

6шт.

25

A147799

FOAM

- console shift support

1шт.

26

A147896

STRAP

- retaining

1шт.

27

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

A67606

KIT

- range shift stop (Prior to P.I.N. 9928940), Includes: Ref. 30-33

1шт.

30

A176565

STRUT

STUD - shift stop

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

1шт.

32

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16 inch (9 x 17 x 2 MM)

1шт.

33

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex lock, 5/16 inch NC

1шт.
