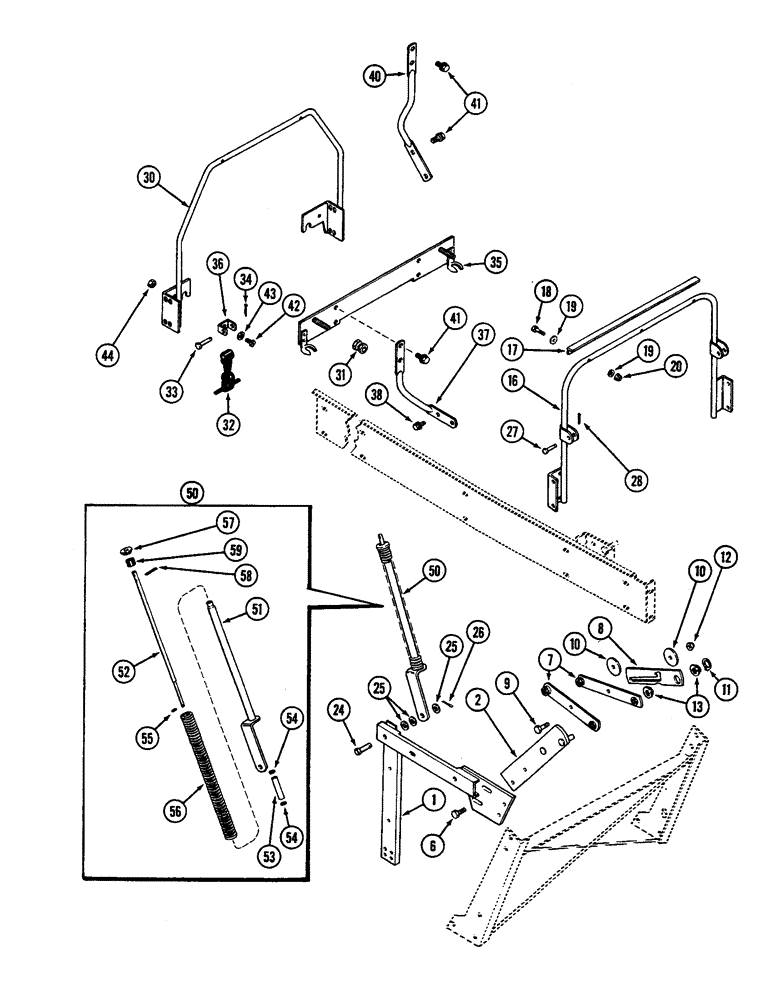

Запчасти Case IH 2290 (9-500) - HOOD SUPPORTS, HINGE AND LATCH, WITH HOOD LATCH-HOOK SYSTEM (09) - CHASSIS/ATTACHMENTS

1

A145678

CHANNEL

- hood, left

1шт.

1

A145679

CHANNEL

- hood, right (Shown)

1шт.

2

NLS

NO LONGER SERVICED

- hinge support, right (Shown)

1шт.

2

A147613

BRACKET

- hinge support, left

1шт.

6

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

7

A163392

LINK

- hood tilt (Replaces A160669)

4шт.

8

A147632

LEVER

- hood lock

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

10

195-2174

WASHER,13/32" x 2" x .109"

- 3/8 x 2 x 1/8 inch (10 x 51 x 3 MM)

2шт.

11

B18208

SNAP RING,#100, Ext

hood lock #100, Ext

1шт.

12

131-206

NUT,3/8"-16

NUT - elastic lock, 3/8 inch NC

1шт.

13

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Replaces A143129) Push, 1/2"

8шт.

16

A147125

BRAKE

BRACE - hood and cylinder

1шт.

17

A149068

BRACKET

ANGLE - center brace

1шт.

18

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

6шт.

19

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

9шт.

20

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

6шт.

24

141-63

CLEVIS PIN,1/2" x 1 11/16'"

PIN - cylinder to support (1/2 inch)

2шт.

25

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64 inch (14 x 35 x 3 MM)

4шт.

27

141-13

CLEVIS PIN,1/4" x 1.594"

PIN - upper, 1/4 inch

2шт.

28

132-17

COTTER PIN,1/16" x 2"

PIN - cotter, 1/16 x 1-1/8 inch

2шт.

30

A164608

BRACE

- hood support, rear

1шт.

31

A147282

SPOOL

- hood lock

2шт.

32

A164624

HOOK

- rubber

2шт.

26

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

2шт.

33

141-66

CLEVIS PIN,5/16" x 1 13/16"

PIN - clevis

2шт.

34

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

35

A164661

SUPPORT

- rear, hood

1шт.

36

A164613

BRACKET

- anchor hood

2шт.

37

A164609

ROD

- hood support, right rear

1шт.

38

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

40

A164611

ROD

- hood support, left rear

1шт.

41

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

42

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

BOLT - anchor bracket pan head, 5/16 NC x 5/8 inch NC

2шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

44

9635082

NUT,5/16" - 18, Gr 5

2шт.

50

A147817

GAS STRUT,952.5mm Extended, 609.6mm Compressed

ASSEMBLY - hood lift, Includes: Ref. 51-59

2шт.

51

NSS

NOT SOLD SEPARAT

CYLINDER - hood lift (Order A147817)

1шт.

52

NSS

NOT SOLD SEPARAT

SHAFT - cylinder (Order A147817)

1шт.

53

A147819

PISTON ASSY.

PISTON - lift cylinder

1шт.

54

195-522

WASHER,5/16"

- 3/8 x 3/4 x 1/16 inch (10 x 19 x 2 MM)

2шт.

55

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

1шт.

56

NSS

NOT SOLD SEPARAT

SPRING - hood lift

1шт.

57

A147820

RETAINER

- spring lift

1шт.

58

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

59

A166395

SEAL

- bumper

1шт.
