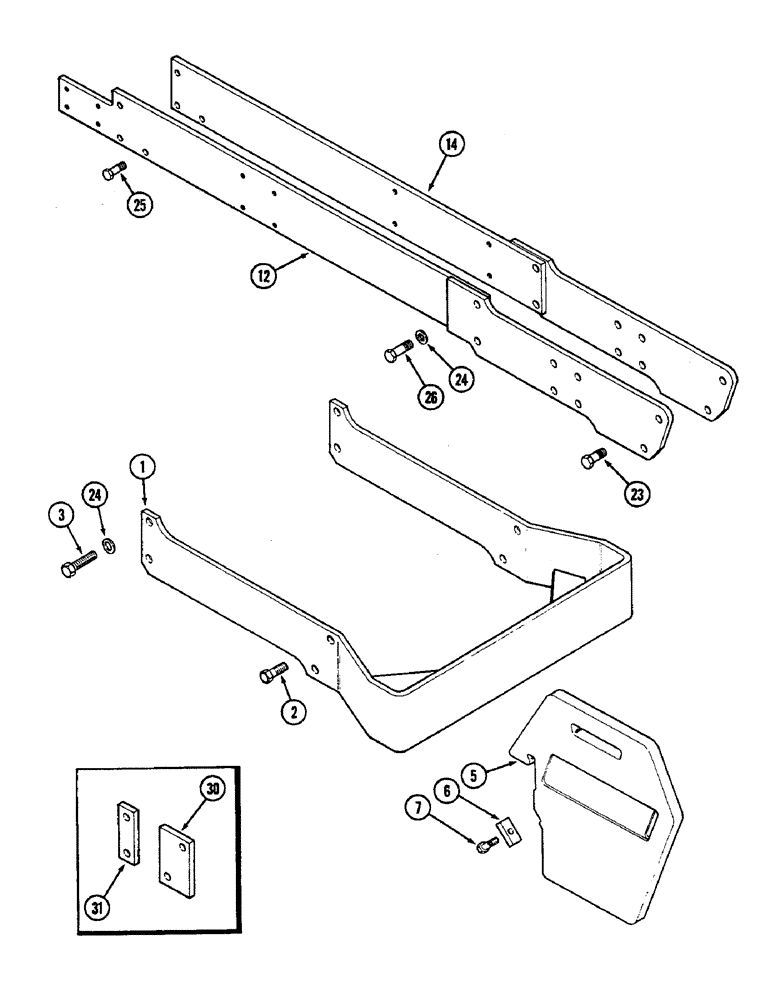

Запчасти Case IH 2290 (9-494) - WEIGHT SUPPORT FRAME AND SIDE RAILS, WITH 24-3/16 INCH (614 MM) INSIDE WIDTH OF WEIGHT SUPPORT FRAME (09) - CHASSIS/ATTACHMENTS

A67488

FRAME

ATTACHMENT - support front end weight (Machinery item), Includes: Ref. 1, 2, 3

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - support, 24-3/16 inch (614 MM) inside width

1шт.

2

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex, 3/4 NC x 2-1/2 inch, front of frame

4шт.

3

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Rear frame Hex, 3/4"-10 x 3", G5

4шт.

A67373

WEIGHT

ATTACHMENT - front end (Machinery item), Includes: Ref. 5, 6, 7

1шт.

5

NSS

NOT SOLD SEPARAT

WEIGHT - 75 pounds (35 kg) (Order A67373)

1шт.

6

A145919

CLAMP

- weight

1шт.

7

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

12

A160534

RAIL

- side, right, 67-49/64 inch (1 721 MM)

1шт.

14

A163959

RAIL

- side, left, 67-49/64 inch (1 721 MM)

1шт.

23

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Used without weight, support frame Hex, 3/4"-10 x 1 3/4", G5

4шт.

24

A26462

WASHER

- hardened, 49/64 x 1-1/4 x 5/64 inch (20 x 32 x 2 MM)

4шт.

25

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

6шт.

26

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

A67489

KIT

SPACER ATTACHMENT - front end support (Machinery item), spacer used with A147088 and A147089 rails and A67488 frame attachment, Includes: Ref. 30, 31

1шт.

30

A160542

BUSHING

SPACER - front end support frame, used on the front of the frame, kit used with A147088 and A147089 rails and A67488 attachment

2шт.

31

A160543

PLATE

SUPPORT - front end support frame, used on the rear of the frame, spacer kit used with A14708 and A147089 rails and A67488 attachment

2шт.
