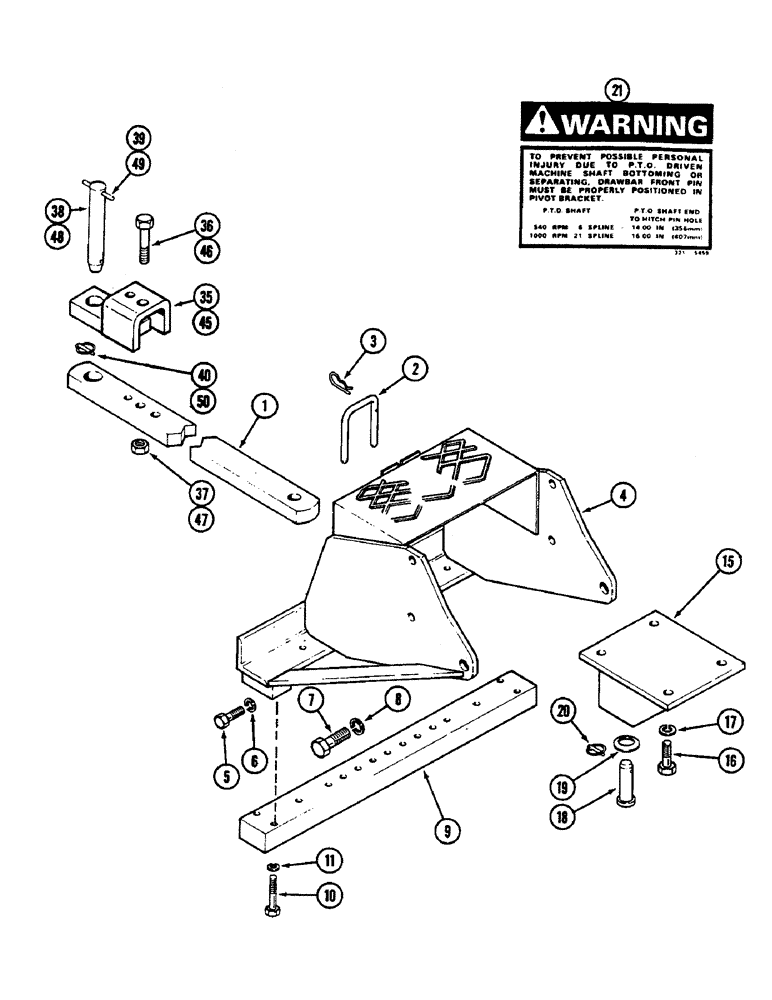

Запчасти Case IH 2290 (9-488) - DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A137939

DRAWBAR, SWINGING

DRAWBAR

1шт.

2

A135985

RETAINER

- drawbar swing

1шт.

3

136-166

COTTER PIN,Int, 9/32" x .120"

PIN - cotter, internal hairpin type 1

1шт.

4

A143961

BRACKET - support, drawbar swing

1шт.

5

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

113-917

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd

2шт.

8

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

9

A141571

BAR

- support, drawbar rear

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

15

A160747

BRACKET

- front support and pivot (Replaces A137932)

1шт.

16

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

18

A137940

PIN,25.4mm OD x 95.25mm L

- pivot, drawbar

1шт.

19

A160059

WASHER

- pivot pin

1шт.

20

A30338

PIN

- klik

1шт.

21

321-5459

DECAL

- drawbar pin

1шт.

A64384

ATTACHMENT

YOKE ATTACHMENT - drawbar (Machinery item) (Prior to transmission serial no. 10205163)

1шт.

35

A64201

YOKE

- (Order ref 45, 46 and 47)

1шт.

36

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- hex, 3/4 NC x 3-3/4 inch (Grade 8)

2шт.

37

129-572

NUT,3/4"-10, G8

2шт.

38

A65764

PIN

ASSEMBLY - implement

1шт.

39

135-817

GROOVED PIN,3/8" x 3 1/4", Type E

Pin, Grooved, 3/8" x 3 1/4", Type E

1шт.

40

A30338

PIN

- klik

1шт.

A67493

CLEVIS

YOKE ATTACHMENT - drawbar (Machinery item) (Transmission serial no. 10205163 and after)

1шт.

45

A161230

CLEVIS

YOKE - drawbar (Replaces A160726)

1шт.

46

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch (Grade 8)

1шт.

46

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex, 5/8 NC x 2-3/4 inch (Grade 8)

1шт.

47

129-183

NUT,5/8"-11, G8

- hex, 64 inch NC

1шт.

47

129-563

NUT,5/8"-11, G8

- hex, 5/8 inch NC

1шт.

48

A65764

PIN

ASSEMBLY - implement

1шт.

49

135-817

GROOVED PIN,3/8" x 3 1/4", Type E

Pin, Grooved, 3/8" x 3 1/4", Type E

1шт.

50

A30338

PIN

- klik

1шт.
