Запчасти Case IH 2290 (2-020) - TURBOCHARGER ASSEMBLY, 504BDT DIESEL ENGINE, PRIOR TO ENGINE SERIAL NUMBER 10333257 (02) - ENGINE

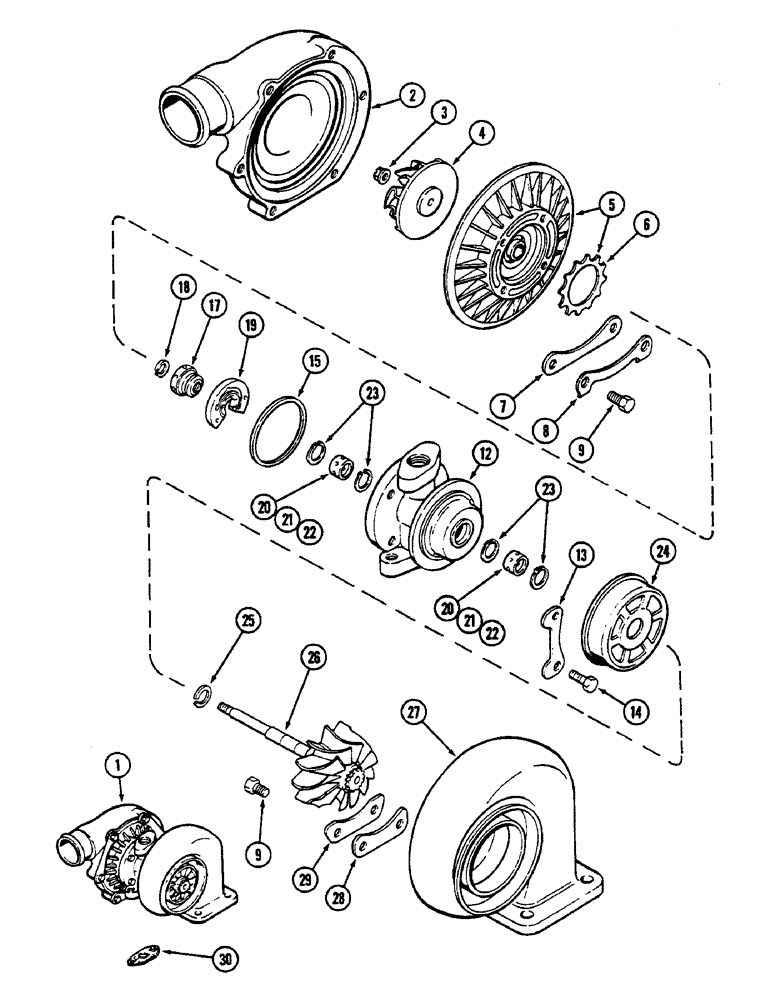

Схема запчастей Case IH 2290 - (2-020) - TURBOCHARGER ASSEMBLY, 504BDT DIESEL ENGINE, PRIOR TO ENGINE SERIAL NUMBER 10333257 (02) - ENGINE
7
3
23
24
2
14
20
20
13
6
26
30
27
23
9
18
12
29
22
15
25
8
4
21
22
5
19
9
17
28
1
21

Артикул

Название

Примечание

Количество

A44052

TURBOCHARGER

TURBOCHARGER ASSEMBLY - remanufactured (Order A48190)

1шт.

A48190

REMAN-TURBOCHARGER

Remanufactured, TURBOCHARGER

1шт.

A48189

CORE-TURBOCHARGER

Return Number

1шт.

A44051

CORE-TURBOCHARGER

RETURN NUMBER - use this part number to return turbocharger core for credit

1шт.

1

A66770

NO LONGER SERVICED

TURBOCHARGER ASSEMBLY - new (Order A157336), Includes: Ref. 2-29

1шт.

2

A45097

HOUSING

HOUSING - compressor

1шт.

3

A48398

NUT

NUT - lock, compressor

1шт.

4

A45015

IMPELLER

IMPELLER

1шт.

5

A45095

PLATE

PLATE ASSEMBLY - back

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

7

A44838

CLAMP

CLAMP - compressor housing

3шт.

8

A44839

PLATE

PLATE - lock, compressor housing clamp

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

12шт.

12

A44825

HOUSING

HOUSING - center

1шт.

13

A44820

PLATE

PLATE - lock, center housing to back plate

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

15

A44833

RING

RING - seal, back plate to center housing

1шт.

17

A156846

COLLAR

COLLAR - thrust, compressor

1шт.

18

A44828

RING

RING - piston, compressor, 1/2 inch OD (13 MM)

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

BEARING - journal, center (Standard) (See A45344 kit)

2шт.

21

A44849

BUSHING

BEARING - journal, center, 0.005 inch undersize (0.13 MM) (See A45345 kit)

2шт.

22

A44850

BUSHING

BEARING - journal, center, 0.010 inch undersize (0.25 MM) (See A45346 kit)

2шт.

23

A44827

RING

RING - snap, journal bearing

4шт.

24

A45091

GUARD

SHROUD - center housing side wheel

1шт.

25

A44829

RING

RING - piston, turbine housing, 23/32 inch OD (18 MM)

1шт.

26

A44841

WHEEL

WHEEL - turbocharger shaft

1шт.

27

A44846

HOUSING

HOUSING - turbocharger

1шт.

28

A44823

CLAMP

CLAMP - turbocharger to turbine housing

3шт.

29

A44824

PLATE

PLATE - lock, turbocharger to turbine housing

3шт.

30

A58892

GASKET,1.59mm Thk

GASKET - oil drain tube

1шт.

A45344

KIT

KIT - repair, center bearing (Standard) (Includes refs 15, 18, 20, 23, 25, and 30)

1шт.

A45345

KIT

KIT - repair, center bearing, 0.005 inch undersize (0.13 MM) (Includes ref 15, 18, 19 21, 23, 25 and 30)

1шт.

A45346

KIT

KIT - repair, center bearing, 0.010 inch undersize (0.25 MM) (Includes ref 15, 18, 19, 22, 23, 25 and 30)

1шт.

Выбрано товаров: 34
