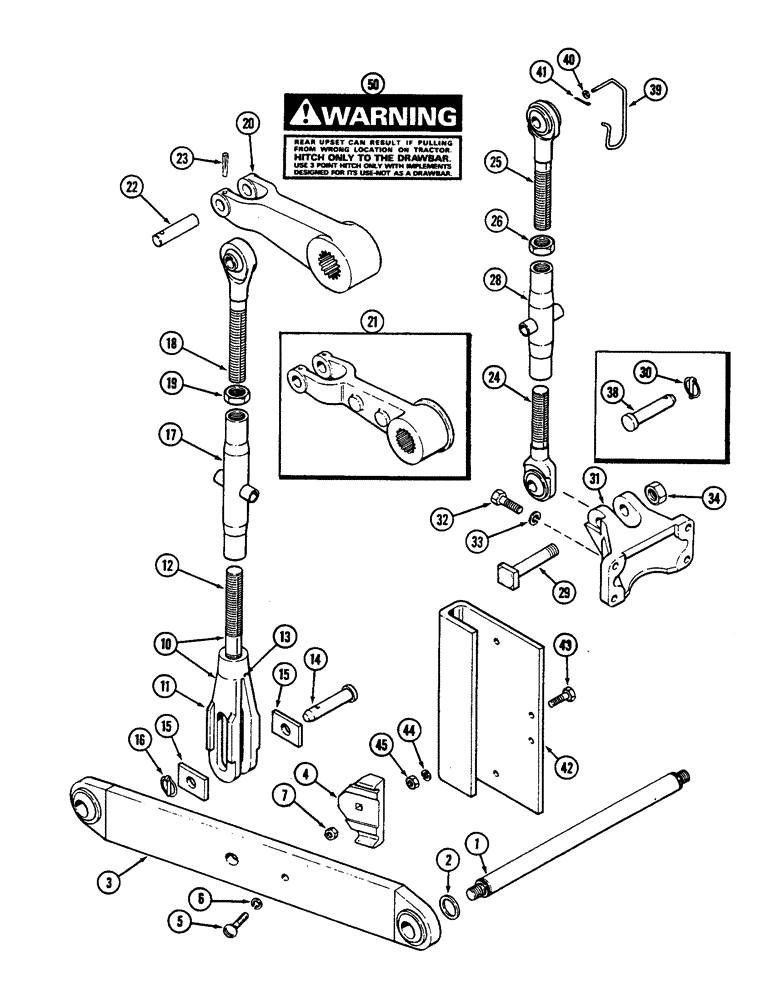

Запчасти Case IH 2290 (9-478) - HITCH DRAFT ARMS AND LIFT LINKS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SHAFT - draft arms and springs (See Figure 9-476)

1шт.

2

A62435

WASHER

- spacer

2шт.

3

A143194

ARM

- draft, hitch

2шт.

4

A162756

BLOCK

- sway, draft arm (Replaces A143196 and A162647)

2шт.

5

111-504

CARRIAGE BOLT,Short NK, 1/2"-13 x 2 1/2", G5

BOLT - round head square neck, 1/2 NC x 2-1/2 inch

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

A137947

YOKE

ASSEMBLY - draft arm, lift link, Includes: Ref. 11, 12, 13

2шт.

11

A137078

YOKE

- draft arm

1шт.

12

A137948

SCREW,Yoke, 1 1/4" - 12 x 6"

PIN - draft arm

1шт.

13

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

14

A67342

PIN

- draft arm yoke

2шт.

15

A67343

PLATE

- stop, yoke pin

4шт.

16

A64204

PIN

- klik

2шт.

17

A137080

TURNBUCKLE

- adjusting, lift link

2шт.

18

A137949

LIFT LINK END ASSY

- upper link

2шт.

19

129-372

NUT,Jam, 1 1/4"-12, G5, LH

- hex jam, 1-1/4 inch NF

2шт.

20

A164592

ARM

- lift, rockshaft (P.I.N. 9926232 and after)

2шт.

21

A57494

ARM

- lift, rockshaft (Prior to P.I.N. 9926232)

2шт.

22

A164588

PIN

- link to lift arm (P.I.N. 9926232 and after)

2шт.

22

A32268

PIN

- link to lift arm (Prior to P.I.N. 9926232)

2шт.

23

135-766

GROOVED PIN,1/4" x 2", Type E

Pin, Grooved, 1/4" x 2", Type E

2шт.

24

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- lower, turnbuckle

1шт.

25

A34198

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper, turnbuckle

1шт.

26

129-132

NUT,1 1/4"-12, G5

1шт.

28

A67344

TURNBUCKLE

- adjusting

1шт.

29

A164279

BOLT,1" - 8 x 5", Gr 8

- square head, upper screw to bracket, 1 NC x 5 inch

1шт.

30

A64204

PIN

- klik (1 in tool box)

2шт.

31

A165801

BRACKET

- mounting, turnbuckle (Replaces A66496)

1шт.

32

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(Replaces 166-115) Hex, 5/8"-11 x 2", G5

4шт.

33

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

34

131-163

LOCK NUT,1"-8, GA

NUT - lock, 1 inch NC

1шт.

38

A33432

PIN

- implement (In tool box)

1шт.

39

A141058

HOOK

- turnbuckle link storage

1шт.

40

195-515

WASHER,#12

- 1/4 x 1/2 x 1/32 inch (6 x 13 x 1 MM)

1шт.

41

132-329

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

42

A143193

STOP

- sway, draft arm

2шт.

43

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

44

92-8

LOCK WASHER,1/2"

4шт.

45

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

50

321-3845

DECAL

- warning, hitch instruction

1шт.
