Запчасти Case IH 2290 (8-458) - DEPTH SENSING CONTROL LINKAGE (08) - HYDRAULICS

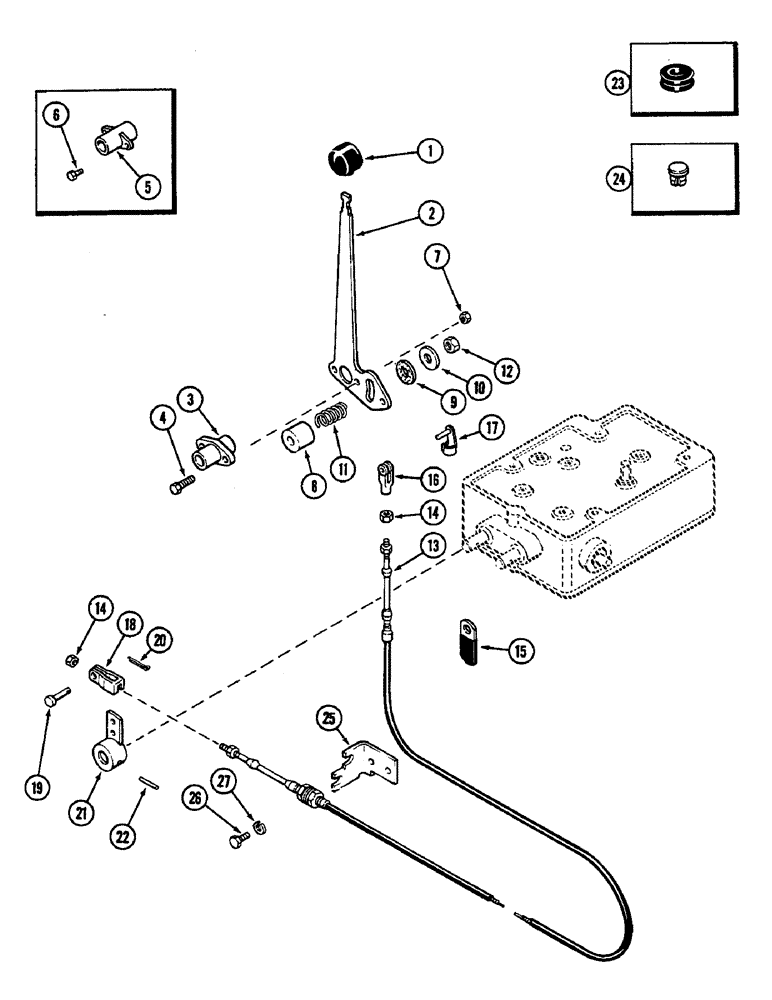

Схема запчастей Case IH 2290 - (8-458) - DEPTH SENSING CONTROL LINKAGE (08) - HYDRAULICS
18
9
21
3
26
13
2
10
16
8
15
14
11
19
7
6
14
1
5
20
25
23
24
4
17
12
22
27

Артикул

Название

Примечание

Количество

1

A139945

KNOB

- hand lever

1шт.

2

A141391

LEVER

- hand

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - lever pivot (Replaces A141371)

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Used with A160500 bearing) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

5

A141371

BEARING

- lever (Order A160500)

1шт.

6

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

(Used with A141371 bearing) Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

A160623

BUSHING

SPACER - lever

1шт.

9

A61069

DISC

- friction

1шт.

10

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 5/64 inch (11 x 32 x 2 MM)

1шт.

11

A65583

SPRING

- friction disc

1шт.

12

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex jam, 3/8 inch NC

1шт.

13

A67299

CABLE

- control, hand, Serial Range: lever-valve

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

- Keps, no. 10 NF

2шт.

15

A37179

CLIP

-, Serial Range: cable-transmission

1шт.

16

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to hand lever

1шт.

17

A149683

PIN

- spring, yoke to hand lever

1шт.

18

A160819

YOKE

- cable to valve lever

1шт.

19

141-51

CLEVIS PIN,3/16" x .580"

PIN - yoke, 3/16 inch

1шт.

20

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

21

A63037

LEVER

- control valve

1шт.

22

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

23

A145925

GROMMET

- cable

1шт.

24

A67295

PLUG

- cable, 9/16 inch diameter head (14 MM)

1шт.

24

A162961

PLUG

- cable, 3/4 inch diameter head (19 MM)

1шт.

25

A160811

BRACKET

- control cable (Replaces A160639)

1шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

Выбрано товаров: 28
