Запчасти Case IH 2290 (2-016) - INTAKE MANIFOLD, 504BDT DIESEL ENGINE (02) - ENGINE

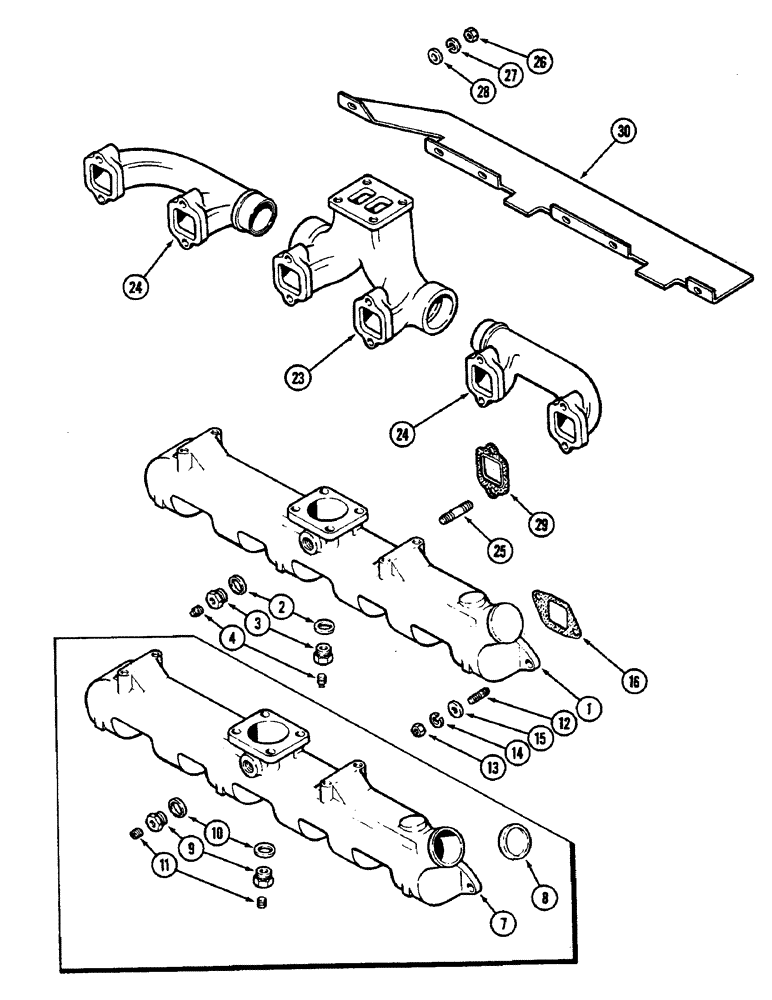

Схема запчастей Case IH 2290 - (2-016) - INTAKE MANIFOLD, 504BDT DIESEL ENGINE (02) - ENGINE
14
25
3
7
23
30
2
13
4
28
24
8
10
27
1
16
15
11
26
29
24
9
12

Артикул

Название

Примечание

Количество

1

A154446

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 2, 3, 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

3

L10283

PLUG

- heater hole

2шт.

4

221-1849

PLUG

- square head, 1/8 inch PT

2шт.

7

A66087

MANIFOLD

ASSEMBLY - intake (Order A154446), Includes: Ref. 8-11

1шт.

8

41-1042

PLUG,Cup, 2 5/8"

- cup type, 2-5/8 inch (67 MM)

1шт.

9

L10283

PLUG

- heater hole plug

2шт.

10

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

11

221-1041

PLUG

- slotted headless, 1/8 inch PT

2шт.

12

A59077

STUD

- intake manifold, 3/8 NC x 1-13/16 inch

12шт.

13

25-166

NUT,3/8"-16, G5, Hvy

- hex, 3/8 inch NC

12шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

15

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

12шт.

16

A58662

MANIFOLD GASKET

- intake manifold

6шт.

23

A76322

MANIFOLD

- exhaust, center section

1шт.

24

A65917

MANIFOLD

- exhaust, end section

2шт.

25

A140924

STUD

- exhaust manifold, 3/8 NC x 5/8 inch

12шт.

26

131-903

NUT,3/8"-16

NUT - hex Seez Pruf, 3/8 inch NC, exhaust manifold

12шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Exhaust manifold 3/8"

12шт.

28

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM) (Heat shield), exhaust manifold

6шт.

29

A58895

GASKET

- exhaust manifold (Replace A140252)

6шт.

30

A76351

GUARD

SHIELD - heat, exhaust manifold

1шт.

Выбрано товаров: 22
