(8-426) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER 4 CIRCUIT

Запчасти Case IH 2290 (8-426) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER 4 CIRCUIT (08) - HYDRAULICS

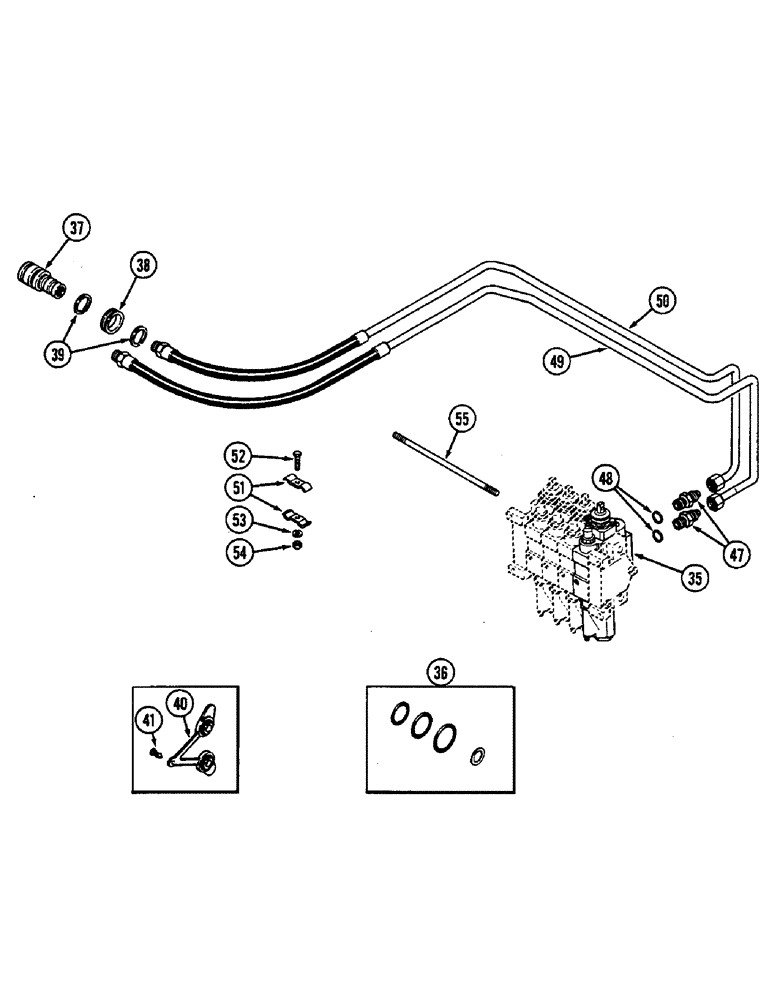

Схема запчастей Case IH 2290 - (8-426) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER 4 CIRCUIT (08) - HYDRAULICS
51
47
41
53
35
48
54
52
36
40
39
55
37
38
50
49
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A67589

ATTACHMENT - remote hydraulics, no. 4 circuit (Continued from Figure 8-424), Includes: Ref. 35-55

1шт.

35

REF

INSTRUCTION

BODY - remote valve (See Figure 8-434)

1шт.

36

A47576

KIT

- seal, with shims (See page 8-434)

1шт.

37

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See page 8-434)

2шт.

38

A139805

RETAINER

- coupling

2шт.

39

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

40

A145468

PLUG

- remote coupling dust

1шт.

41

A162364

FASTENER

- dust plug

1шт.

47

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 48

2шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 MM)

1шт.

49

A145907

HOSE

- no. 7 remote coupling

1шт.

50

A145908

HOSE

- no. 8 remote coupling

1шт.

51

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

52

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

53

92-5

LOCK WASHER,5/16"

1шт.

54

9635082

NUT,5/16" - 18, Gr 5

1шт.

55

A147508

STUD

- valve mounting, 3/8 NC x 11-3/4 inch

3шт.
