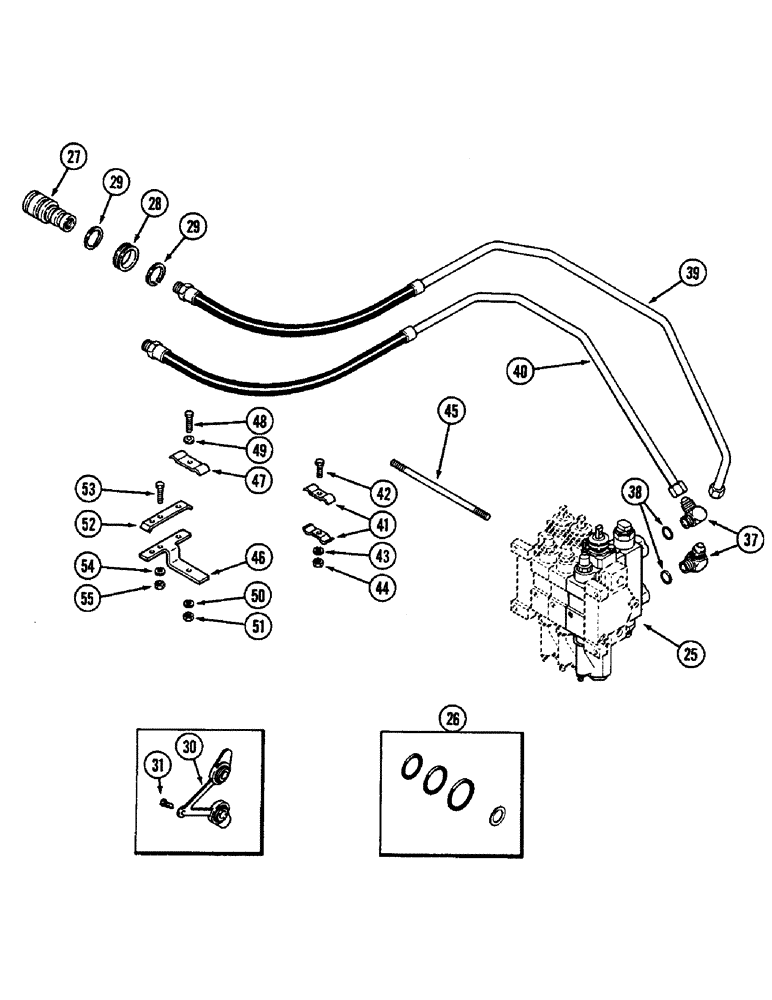

Запчасти Case IH 2290 (8-414) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER 3 CIRCUIT, WITH LOCKOUT (08) - HYDRAULICS

A165649

VALVE

ATTACHMENT - remote hydraulics, no. 3 circuit (Continued from Figure 8-412), Includes: Ref. 25-55

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - lockout (See Figure 8-438)

1шт.

26

A47576

KIT

- seal, with shims (See Figure 8-428)

1шт.

27

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See page 8-452)

2шт.

28

A139805

RETAINER

- coupling

2шт.

29

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

30

A145468

PLUG

- remote coupling dust

1шт.

31

A162364

FASTENER

- dust plug

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 38

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 MM)

1шт.

39

A165387

HOSE

- no. 5 remote coupling

1шт.

40

A165388

HOSE

- no. 6 remote coupling

1шт.

41

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

A147507

STUD

- valve mounting, 3/8 NC x 9-7/8 inch

3шт.

46

A147771

BRACKET

- tube clamp support

1шт.

47

A17542

CLAMP

- tube

1шт.

48

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

49

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)

1шт.

50

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

51

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

52

A147772

CLAMP

- tube

1шт.

53

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

54

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

55

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
