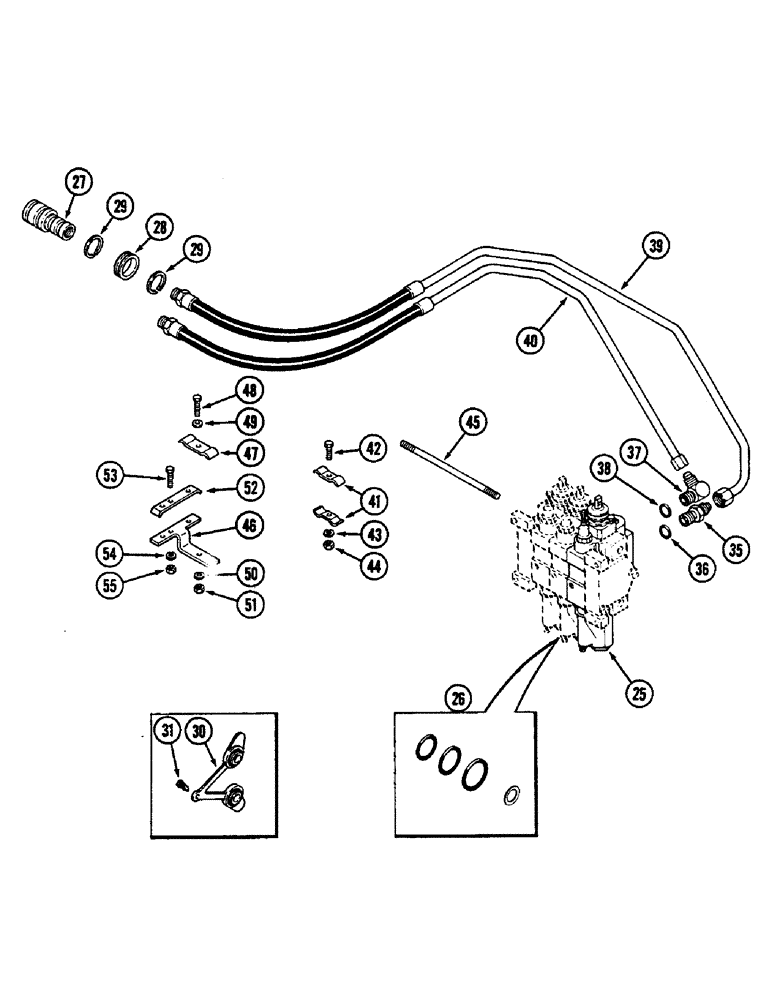

Запчасти Case IH 2290 (8-406) - REMOTE HYDRAULICS, REMOTE ATTACHMENT, NUMBER 3 CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A67388
ATTACHMENT
- remote hydraulics, no. 3 circuit (Continued from Figure 8-404), Includes: Ref. 25-55
1шт.
25
REF
INSTRUCTION
BODY - remote valve (See page 8-430)
1шт.
26
A47576
KIT
- seal, with shims (See Figure 8-428)
1шт.
27
REF
INSTRUCTION
COUPLING - remote hydraulic, female (See page 8-452)
2шт.
28
A139805
RETAINER
- coupling
2шт.
29
A137976
SNAP RING,#150, 1.408", Ext
RING - snap, coupling to cab
4шт.
30
A145468
PLUG
- remote coupling dust
1шт.
31
A162364
FASTENER
- dust plug (Replaces A143300)
1шт.
35
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR ASSEMBLY - tube, Includes: Ref. 36
1шт.
36
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 MM)
1шт.
37
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
ASSEMBLY - 90 degree, Incl. Ref. 38
1шт.
38
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 MM)
1шт.
39
A145905
HOSE
- no. 5 remote coupling
1шт.
40
A145906
HOSE
- no. 6 remote coupling
1шт.
41
A63323
CLAMP
-, Serial Range: tube-tube
2шт.
42
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
43
92-5
LOCK WASHER,5/16"
1шт.
44
9635082
NUT,5/16" - 18, Gr 5
1шт.
45
A147507
STUD
- valve mounting, 3/8 NC x 9-7/8 inch
3шт.
46
A147771
BRACKET
- tube clamp support
1шт.
47
A17542
CLAMP
- tube
1шт.
48
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1шт.
49
195-102
WASHER,1/4"
- 5/16 x 3/4 x 1/16 inch (8 x 19 x 2 mm)
1шт.
50
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
1шт.
51
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
1шт.
52
A147772
CLAMP
- tube
1шт.
53
113-17
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
2шт.
54
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
55
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
2шт.
Выбрано товаров: 29
