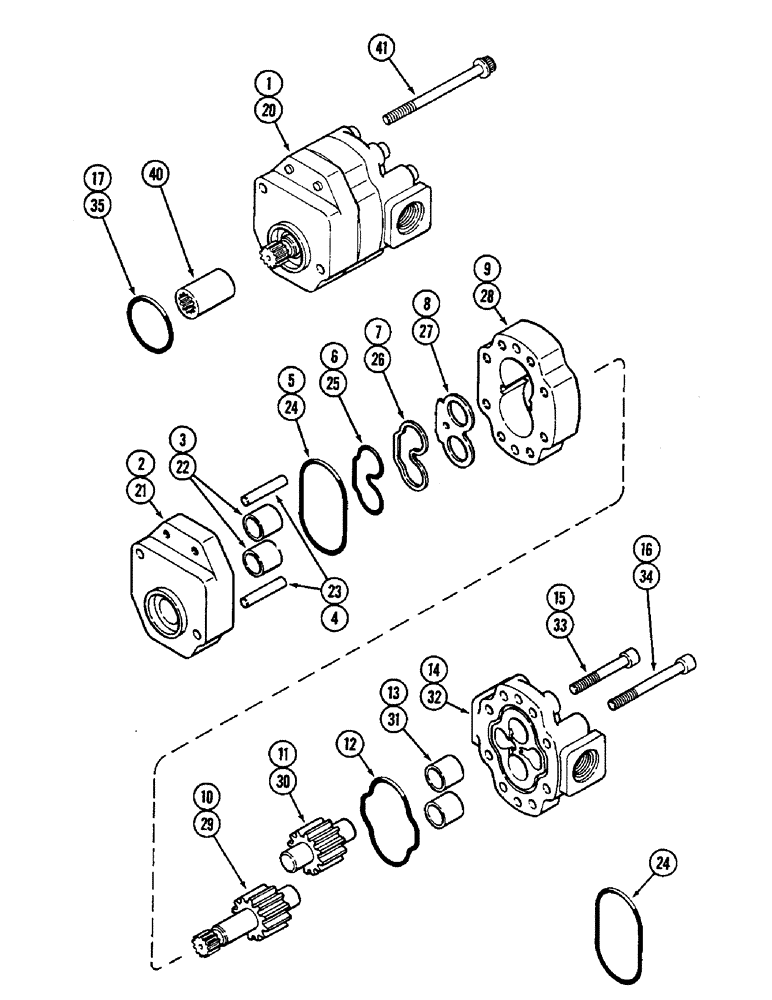

Запчасти Case IH 2290 (8-384) - HYDRAULICS, GEAR AND PISTON PUMP ASSEMBLY, PRIOR TO TRANSMISSION SERIAL NUMBER 16210895 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A163166
PUMP
ASSEMBLY - complete, hydraulic (Transmission serial no. 10265818 through 16210894) (Continued from Figure 8-382)
1шт.
1346425C1
REMAN-HYD PUMP
2290 PRIOR TO TRANSMISSION SERIAL NUMBER 16210895, Hydraulic Transmission Serial no. 10265818 though 16210894 (1/79-12/83), Reman for New PN A163166
1шт.
1346426C1
CORE-HYDRAULIC PUMP
Return Number
1шт.
A160318
PUMP
ASSEMBLY - gear and piston (Prior to transmission serial no. 10265818) (Order A163166), Includes: Ref. 1-41 and Kits
1шт.
1
A47311
PUMP
ASSEMBLY - gear (Used with A160318 pump) (Order A47928), Includes: Ref. 2-17 and Kit
1шт.
84372945R
REMAN-HYD PUMP
2290 PRIOR TO TRANSMISSION SERIAL NUMBER 16210895 (1/79-12/83), Reman for New PN A47311
1шт.
84372945C
CORE-HYDRAULIC PUMP
Return Number
1шт.
2
NSS
NOT SOLD SEPARAT
COVER - front
1шт.
3
NSS
NOT SOLD SEPARAT
BUSHING - front cover
2шт.
4
NSS
NOT SOLD SEPARAT
DOWELS - body locating
2шт.
5
NSS
NOT SOLD SEPARAT
O-RING - front cover
1шт.
6
NSS
NOT SOLD SEPARAT
SEAL - rubber
1шт.
7
NSS
NOT SOLD SEPARAT
SEAL - teflon
1шт.
8
NSS
NOT SOLD SEPARAT
PLATE - wear
1шт.
9
NSS
NOT SOLD SEPARAT
BODY - pump
1шт.
10
NSS
NOT SOLD SEPARAT
GEAR - drive
1шт.
11
NSS
NOT SOLD SEPARAT
GEAR - idler
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - rear cover
1шт.
13
NSS
NOT SOLD SEPARAT
BUSHING - rear cover
2шт.
14
NSS
NOT SOLD SEPARAT
COVER - rear
1шт.
15
NSS
NOT SOLD SEPARAT
SCREW - short
6шт.
16
NSS
NOT SOLD SEPARAT
SCREW - long
4шт.
17
F98069
O-RING
- gear pump to piston pump (See note)
1шт.
A47428
KIT
- seal, gear pump
1шт.
20
A47928
PUMP
ASSEMBLY - gear (Used with A163166 pump), Includes: Ref. 21-35 and Kit
1шт.
84372945R
REMAN-HYD PUMP
2290 PRIOR TO TRANSMISSION SERIAL NUMBER 16210895 (1/79-12/83), Reman for New PN A47928
1шт.
84372945C
CORE-HYDRAULIC PUMP
Return Number
1шт.
21
NSS
NOT SOLD SEPARAT
COVER - front
1шт.
22
NSS
NOT SOLD SEPARAT
BUSHING - front cover
2шт.
23
NSS
NOT SOLD SEPARAT
DOWELS - body locating
2шт.
24
NSS
NOT SOLD SEPARAT
SEAL - front and rear cover
2шт.
25
NSS
NOT SOLD SEPARAT
SEAL - rubber
1шт.
26
NSS
NOT SOLD SEPARAT
SEAL - teflon
1шт.
27
NSS
NOT SOLD SEPARAT
PLATE - wear
1шт.
28
NSS
NOT SOLD SEPARAT
BODY - pump
1шт.
29
NSS
NOT SOLD SEPARAT
GEAR - drive
1шт.
30
NSS
NOT SOLD SEPARAT
GEAR - idler
1шт.
31
NSS
NOT SOLD SEPARAT
BUSHING - rear cover
2шт.
32
NSS
NOT SOLD SEPARAT
COVER - rear
1шт.
33
NSS
NOT SOLD SEPARAT
SCREW - short
6шт.
34
NSS
NOT SOLD SEPARAT
SCREW - long
4шт.
35
F98069
O-RING
- gear pump
1шт.
A47643
SEAL
KIT - seal, gear pump
1шт.
40
A47312
COUPLING, BREAK AWAY
COUPLING - gear pump to valve block
1шт.
41
A47412
SCREW,M8 x 100mm
- Ferry cap, M8 x 100 MM
2шт.
Выбрано товаров: 45
