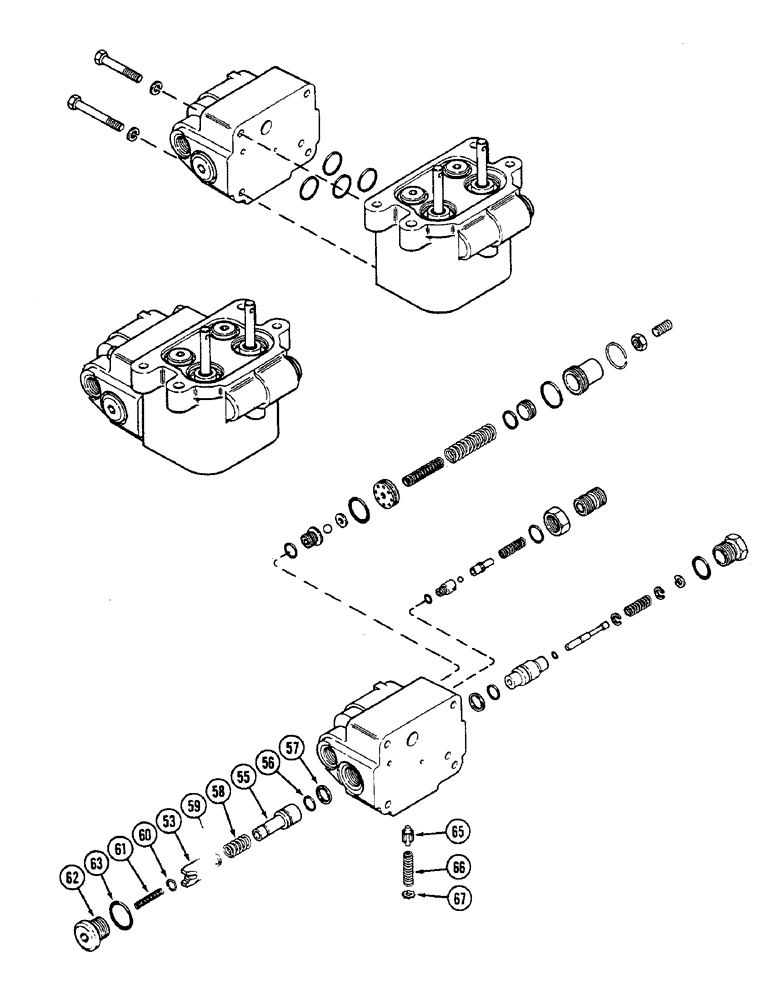

Запчасти Case IH 2290 (7-338) - POWER BRAKE VALVE (07) - BRAKES

G103198

VALVE

ASSEMBLY - power brake (Continued from Figure 7-336) (Prior to tractor P.I.N. 9916383, Order G105178, Figure 7-342), Includes: Ref. 53-67 and Cover Assy, Pressure Assy

1шт.

G103366

COVER

ASSEMBLY - valve (Continued from Figure 7-336), Includes: Ref. 53-67

1шт.

G101095

VALVE

PRESSURE REGULATOR ASSEMBLY, Includes: Ref. 53-57

1шт.

53

G100793

SPOOL

- pressure regulator

1шт.

G101096

PISTON

ASSEMBLY - pressure regulator

1шт.

55

NSS

NOT SOLD SEPARAT

PISTON - pressure regulator

1шт.

56

D26872

O-RING

- 1/2 x 5/8 x 1/16 inch (13 x 16 x 2 MM) (Order A18414)

1шт.

57

G100797

RING

SEAL - ring, 11/16 x 3/4 x 1/16 inch (18 x 19 x 2 MM)

1шт.

58

G100795

SPRING

- regulator piston, 5/8 OD x 1-5/32 inch free length (16 x 29 MM)

1шт.

59

G102104

WASHER

- orifice, 7/16 x 9/16 x 3/64 inch (11 x 14 x 1 MM)

1шт.

60

G100792

RING

- retaining

1шт.

61

G100794

SPRING

- piston pressure, 1/4 OD x 1-1/2 inch free length (6 x 38 MM)

1шт.

62

86625138

PLUG,7/18" - 14

Assy, Piston, Includes Ref. 63 Hex Soc, 7/8"-14 ORB

1шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32 inch (19 x 16 x 2 MM)

1шт.

65

G101106

VALVE POPPET

POPPET - low pressure sump

1шт.

66

G101155

SPRING

- low pressure sump, 3/8 OD, 1-13/32 inch free length (10 x 36 MM)

1шт.

67

A58439

RETAINER

- spring, low pressure sump

1шт.
