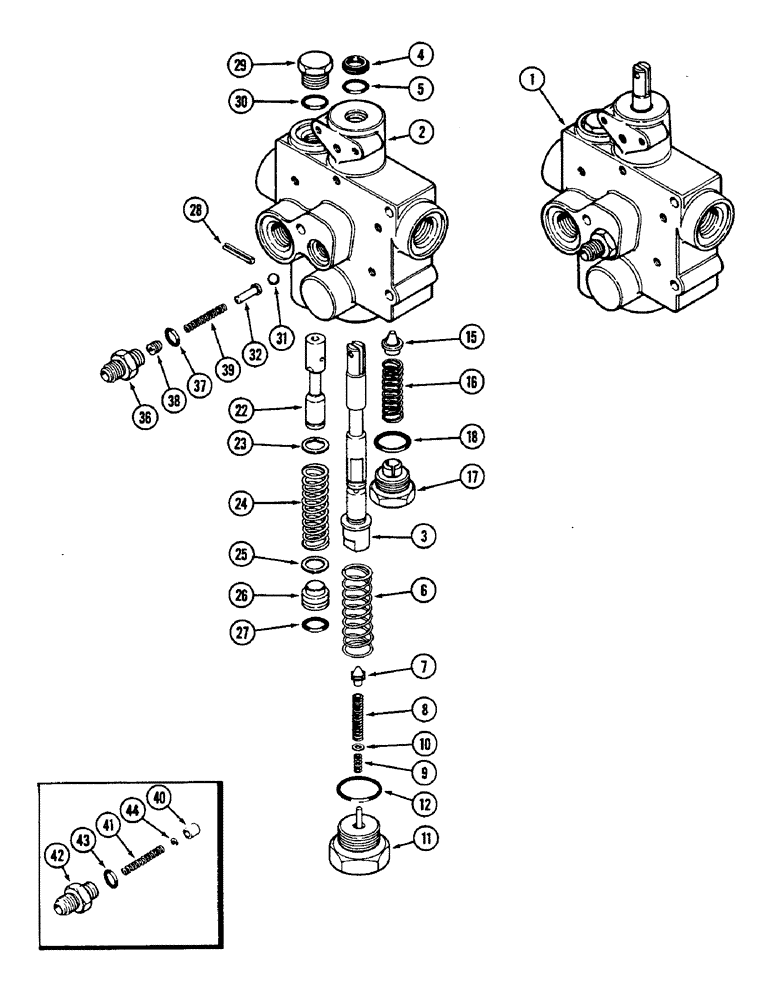

Запчасти Case IH 2290 (6-320) - REGULATOR VALVE ASSEMBLY, PTO AND CLUTCH CONTROL (06) - POWER TRAIN

1

A139767

VALVE

ASSEMBLY - regulator, Includes: Ref. 2-44

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - Includes relief valve seat (Reference no. A139752)

1шт.

3

A139748

SPOOL

- control, PTO

1шт.

4

A63660

RING

- wiper, spool

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool seal, 5/8 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.

6

A139739

SPRING

- return, spool

1шт.

7

A61991

POINT

- modulator, control spool

1шт.

8

A141647

SPRING

- primary, modulator, 1-55/64 inch (47 MM) free length

1шт.

9

A139738

SPRING

- secondary, modulator, 5/8 inch (16 MM) free length

1шт.

10

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

11

A139689

PLUG

ASSEMBLY - modulator (1-3/16-12 inch thread), Includes: Ref. 12

1шт.

12

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64 inch (27 x 33 x 3 MM)

1шт.

15

A60687

VALVE POPPET

POPPET - relief valve

1шт.

16

A60286

SPRING

- relief valve

1шт.

17

A139173

PLUG

ASSEMBLY - relief valve (7/8-14 inch thread), Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM)

1шт.

22

A139708

SPOOL

- pressure regulator

1шт.

23

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

24

A60274

SPRING

- regulator spool

1шт.

25

A149281

SHIM

- regulator spring, 1/64 inch (0.40 MM)

1шт.

26

A149282

PLUG

- regulator spring

1шт.

27

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- plug, 11/16 x 7/8 x 3/32 inch (17 x 22 x 2 MM)

1шт.

28

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll, 3/16 x 1-1/4 inch (5 x 32 MM)

1шт.

29

214389

PLUG,3/4" - 16 ORB

Assy, Regulator spool, Includes Ref. 30 Hex Hd, 3/4"-16 ORB

1шт.

31

211-28

BALL,13/32" Dia

- detent, 13/32 inch diameter (10 MM) (Replaces 211-11)

1шт.

32

A161859

SPRING

PIN - detent spring guide

1шт.

36

A169229

HYD CONNECTOR

CONNECTOR ASSEMBLY - clutch tube (Replaces A160659), Includes: Ref. 37, 38

1шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

38

A160657

SET SCREW,3/8" - 16

- set

1шт.

39

A141647

SPRING

- detent (Replaces A145118)

1шт.

40

A139754

SPOOL

- detent (Early production) (Order A160659)

1шт.

41

A145118

SPRING

- detent (Early production) (Order A160659)

1шт.

42

A145117

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - (Early production) (Order A160659), Includes: Ref. 43

1шт.

43

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (12 x 16 x 2 mm)

1шт.

44

A149941

WASHER

- spring (Early production) (Order A160659)

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM)

1шт.
