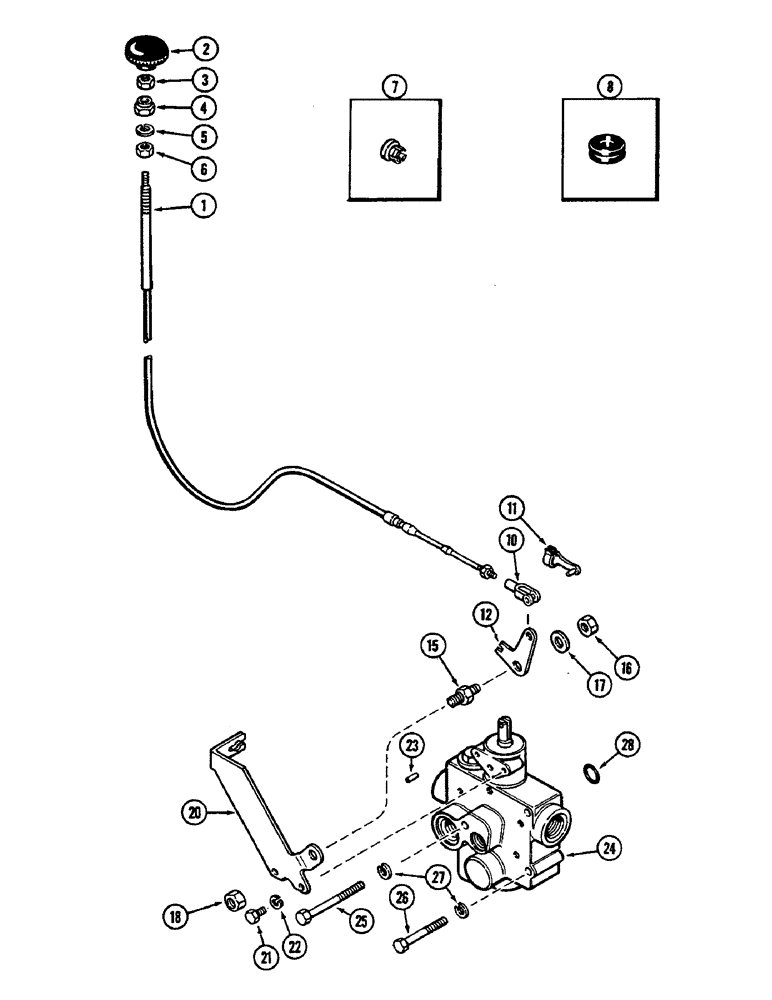

Запчасти Case IH 2290 (6-318) - PTO CONTROL LINKAGE (06) - POWER TRAIN

1

A160693

CABLE

- control, PTO regulator valve (Replaces A145221)

1шт.

2

A164571

KNOB

- control (Replaces A149966)

1шт.

3

129-121

NUT,1/4"-28, G5

1шт.

4

A149967

NUT

- face

1шт.

5

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

6

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

7

A67295

PLUG

- control cable

1шт.

8

A141389

GROMMET

- control cable

1шт.

10

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to lever

1шт.

11

A149683

PIN

-, Serial Range: yoke-lever

1шт.

12

A143665

LEVER

- valve plunger

1шт.

15

A160040

STUD

- lever pivot

1шт.

16

131-1306

JAM NUT,Jam, 3/8"-16

NUT - lock, 3/8 inch NC

1шт.

17

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 MM)

1шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

20

A160692

BRACKET

- cable mounting (Replaces A143666)

1шт.

21

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

23

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

1шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - regulator, PTO control (See Figure 6-320)

1шт.

25

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

1шт.

26

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1 x 1/8 inch (19 x 13 x 3 MM)

1шт.
