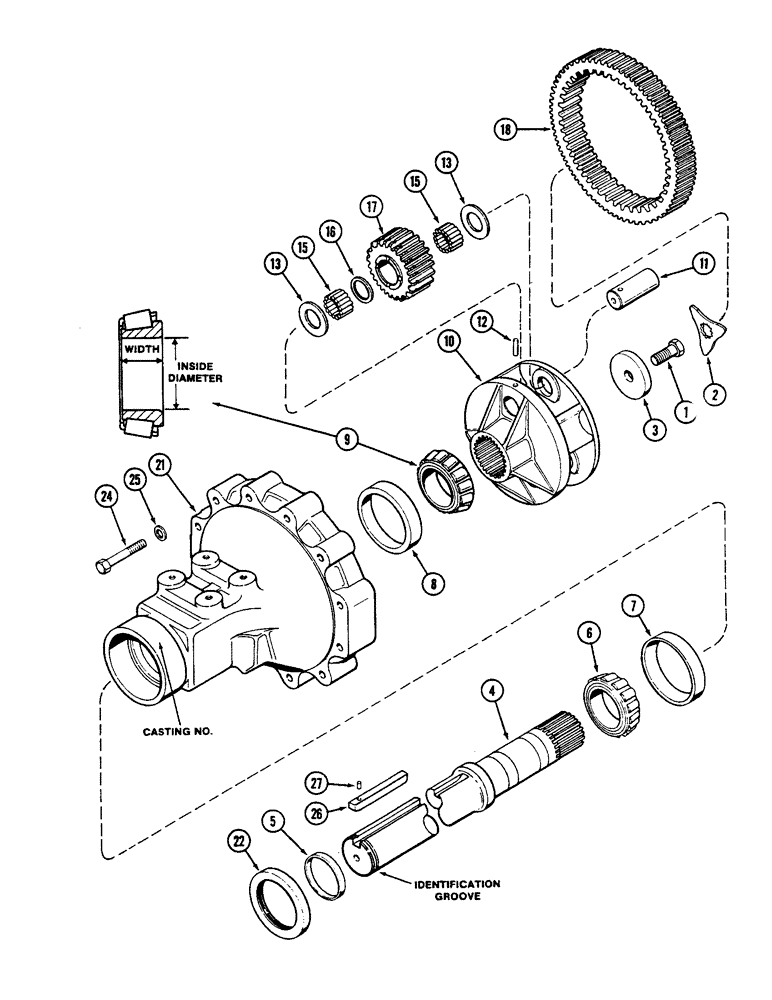

Запчасти Case IH 2290 (6-296) - REAR AXLE, HOUSING AND PLANETARY GEARS, 120 INCH LONG AXLE (3048 MM) (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex, 7/8 NC x 2-1/4 inch (Grade 8)

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining rear axle

2шт.

4

A155225

SHAFT

- rear axle, with identification groove, 44-9/16 inch (1 132 MM) (See note)

2шт.

4

A153278

SHAFT

ASSEMBLY - rear axle, without identification groove (Replaces A153429) (Order A155225, A157334 and A154957) (See note)

2шт.

5

A67368

RING

- wear, outer oil seal

1шт.

6

A34340

ROLLER BEARING

CONE - bearing, outer (3-11/32 inch ID) (85 MM)

2шт.

7

A34343

BEARING CUP

CUP - bearing, outer, 5-57/64 inch OD (150 MM)

2шт.

8

A50324

BEARING CUP

CUP - bearing, inner, 5-1/4 inch OD (133 MM) (See note)

2шт.

8

A34343

BEARING CUP

CUP - bearing, inner, 5-57/64 inch OD (150 MM) (See note)

2шт.

9

PA34339

NUT

CONE - bearing, inner, 3-1/4 ID x 1-9/16 inch wide (83 x 40 MM) (See note)

2шт.

9

A157334

ROLLER BEARING,3.25" ID x 1.8375"

CONE - bearing, inner, 3-1/4 ID x 1-27/32 inch wide (83 x 47 MM) (See note)

2шт.

9

A67333

CONE

- bearing, inner, 3-3/16 ID x 1-27/32 inch wide (81 x 47 MM) (See note)

2шт.

9

A154885

ROLLER BEARING,3.1875" ID x 1.5625"

CONE - bearing, inner, 3-3/16 ID x 1-9/16 inch wide (81 x 40 MM) (See note)

2шт.

10

A150254

CARRIER

- planetary gear

2шт.

11

A151449

PIN,40.35mm OD x 115.82mm L

- planetary gear, with 3/8 inch hole (10 MM)

6шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A63228

WASHER

- planetary pin roller, 1-39/64 x 3 x 1/32 inch (41 x 76 x 1 MM)

12шт.

15

A46423

KIT

BEARING KIT - roller, planetary gear (19 needles per kit)

4шт.

16

A63227

SPACER

- roller bearing separator, 1-21/32 x 2-13/64 x 19/64 inch (42 x 56 x 8 MM)

6шт.

17

A150253

GEAR

- planetary, rear axle

6шт.

18

A140811

GEAR

- planetary ring

2шт.

21

A154877

HOUSING

- rear axle (Casting no. A154877) (See note)

2шт.

21

A148731

HOUSING

- rear axle (Casting no. A148730) (Order 1 each of A154877, A154885, A50324) (See note)

2шт.

22

A154957

OIL SEAL

- oil, rear axle (Used with A155225 shaft)

2шт.

22

A67367

OIL SEAL

- oil, rear axle (Used with A153278 shaft)

2шт.

24

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch (Grade 8)

24шт.

25

A64303

WASHER

- 41/64 x 1-1/16 x 1/16 inch (16 x 27 x 2 MM)

24шт.

26

A34890

BUCKET TOOTH KEY

KEY - wheel to shaft, 5/8 square x 6 inch long (16 x 152 MM)

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
