Запчасти Case IH 2290 (6-294) - REAR AXLE, HOUSING AND PLANETARY GEARS, SHORT AXLE 96 INCH (2438 MM) (06) - POWER TRAIN

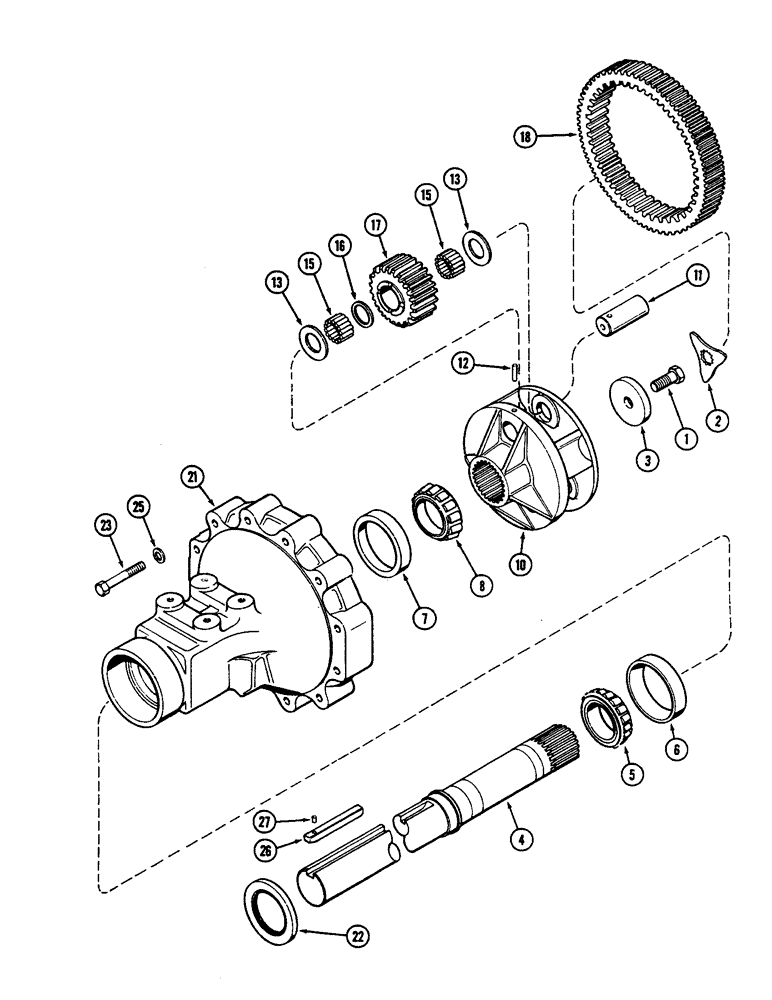

Схема запчастей Case IH 2290 - (6-294) - REAR AXLE, HOUSING AND PLANETARY GEARS, SHORT AXLE 96 INCH (2438 MM) (06) - POWER TRAIN
15
11
18
15
13
27
2
17
5
12
23
26
10
1
8
22
4
25
16
3
7
6
13
21

Артикул

Название

Примечание

Количество

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- hex, 7/8 NC x 2-1/4 inch (Grade 8)

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A151250

SHAFT

- rear axle (Order A151843)

2шт.

5

A34339

BEARING

CONE - bearing, outer 3-1/4 inch ID (83 MM)

2шт.

6

A50324

BEARING CUP

CUP - bearing, outer 5-1/4 inch OD (133 MM)

2шт.

7

A67331

CUP

- bearing, inner 5-7/64 inch OD (130 MM)

2шт.

8

A67332

ROLLER BEARING,3.149" ID x 1.3386"

CONE - bearing, inner 3-9/64 inch (80 MM)

2шт.

10

A148732

CARRIER

- planetary gear

2шт.

11

A151449

PIN,40.35mm OD x 115.82mm L

- planetary gear, with 3/8 inch hole (10 MM)

6шт.

12

138-2066

PIN,3/8" x 1 1/2", Coiled

6шт.

13

A63228

WASHER

- planetary pin roller, 1-39/64 x 3 x 1/32 inch (40.64 x 76.2 x 0.76 MM)

12шт.

15

A43664

KIT

BEARING KIT - roller, planetary gear (Pack of 38) (Order A46421)

2шт.

16

A63227

SPACER

- roller bearing separator, 1-21/32 x 2-13/64 x 1/32 inch (42 x 56 x 1 MM)

6шт.

17

A150253

GEAR

- planetary, rear axle 2.620 / 2.610

6шт.

18

A140811

GEAR

- planetary, ring

2шт.

21

A148730

HOUSING

- rear axle

2шт.

22

A155226

OIL SEAL

- oil, rear axle

2шт.

23

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch (Grade 8)

24шт.

25

A64303

WASHER

- 41/64 x 1-1/16 x 1/16 inch (16 x 27 x 2 MM)

24шт.

26

A34890

BUCKET TOOTH KEY

KEY - rear wheel to axle shaft, 5/8 square x 6 inch long (16 x 152 MM)

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

Выбрано товаров: 22
