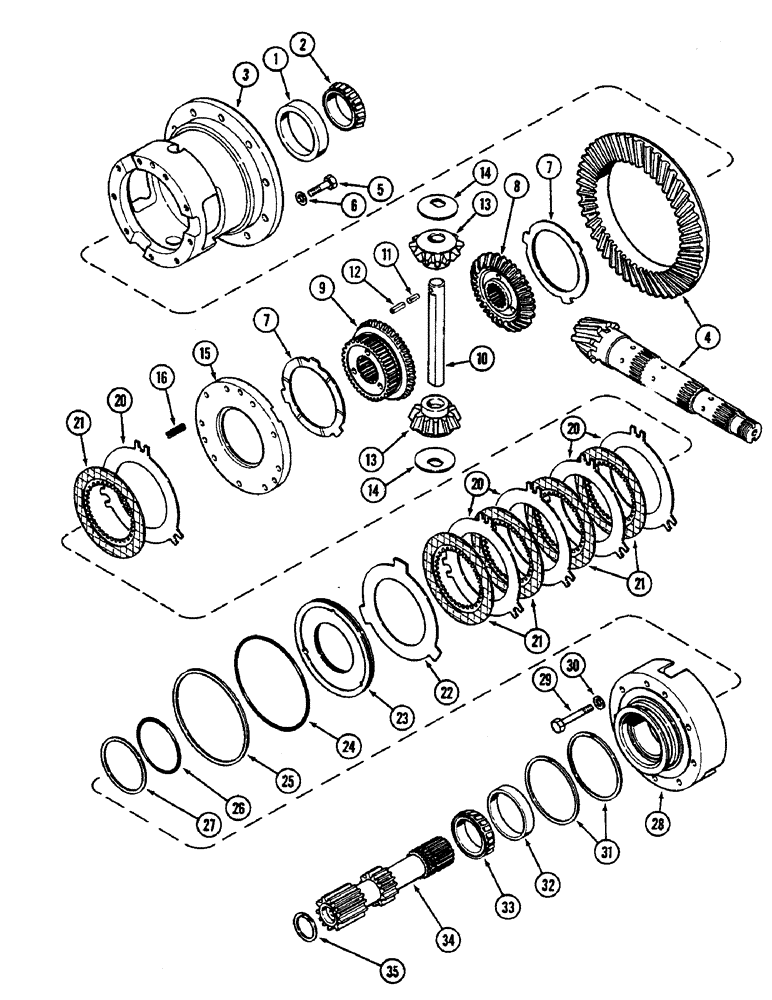

Запчасти Case IH 2290 (6-286) - DIFFERENTIAL ASSEMBLY, PINION GEAR, CLUTCH AND CAGE, TRANSMISSION SERIAL NUMBER 10270795 AND AFTER (06) - POWER TRAIN

1

A67327

BEARING CUP,120 mm OD x 25 mm

CUP - bearing, cage 4-3/4 inch OD (121 MM)

1шт.

2

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

CONE - bearing, cage 1-5/32 inch ID (29 MM)

1шт.

3

A154030

CAGE

- differential gear

1шт.

Part of ring gear cage kit, P/N A156654

1шт.

4

REF

INSTRUCTION

GEAR SET - spiral bevel and countershaft (Matched set) (Order A168188 and A46937 kit, see Figure 6-220)Is for Without M F D

1шт.

4

A168189

GEAR

SET - spiral bevel and countershaft (Matched set) (Replaces A159488) (MFD Tractors)Gear Set is for use on units with M F D

1шт.

5

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch (Grade 8)

10шт.

6

A64303

WASHER

- 41/64 x 1-1/16 x 1/16 inch (16 x 27 x 2 MM)

10шт.

7

A153988

THRUST WASHER,137.92mm ID x 191.52mm OD x 2.39mm Thk

- thrust

2шт.

Part of ring gear cage kit, P/N A156654

1шт.

8

A154890

GEAR

- bevel, left

1шт.

9

A154891

GEAR

- bevel, right

1шт.

10

A154645

PIN

- differential pinion

1шт.

Part of ring gear cage kit, P/N A156654

1шт.

11

A159573

GROOVED PIN,3/8" x 1", Type A

Pin, Grooved, 3/8" x 1", Type A

1шт.

12

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, (9 x 32 mm) 3/8" x 1 1/4", Slotted

1шт.

13

A154889

GEAR

- pinion

2шт.

14

A154535

WASHER

- thrust

2шт.

Part of ring gear cage kit, P/N A156654

1шт.

15

A154013

PLATE

- reaction, differential lock

1шт.

Part of ring gear cage kit, P/N A156654

1шт.

16

A152187

SPRING

- differential lock return, 15/32 inch diameter (12 MM) x 1-19/32 inch free length (40 MM)

3шт.

20

A67334

PLATE

- clutch, steel

5шт.

21

A136340

PLATE

- clutch, sintered

5шт.

22

A67335

PLATE

- piston return

1шт.

23

A146670

PISTON

- differential lock

1шт.

24

A150753

O-RING,7.84" ID x 0.107"

- 7-13/16 x 7-29/32 x 3/32 inch (198 x 201 x 2 MM)

1шт.

25

A146682

RING

- seal, 8-9/32 inch OD (210 MM)

1шт.

26

A150754

O-RING,4.718" ID x 0.107"

- 4-11/16 x 4-25/32 x 3/32 inch (119 x 121 x 2 MM)

1шт.

27

A146683

RING

- seal, 4-15/32 inch ID (114 MM)

1шт.

28

A142728

HOUSING

CAGE - differential lock

1шт.

29

26-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

- hex, 1/2 NC x 3-1/2 inch (Grade 8)

9шт.

30

A150672

WASHER

- 17/32 x 7/8 x 1/8 inch (13 x 22 x 3 MM)

9шт.

31

A67370

RING

- seal, differential lock (59/64 inch width) (23 MM)

2шт.

32

L33303

BEARING CUP

CUP - bearing, cage, differential lock (4-17/32 inch OD) (115 MM)

1шт.

33

L33297

ROLLER BEARING

CONE - bearing, cage, differential lock (2-61/64 inch ID) (75 MM)

1шт.

34

A148727

SHAFT

- brake and sun gear

2шт.

35

A63195

SNAP RING,#215, 2.060", Ext Spiral

RING - snap, sun gear shaft

2шт.

A156654

KIT

- ring gear cage, Includes: Refs. 3, 7, 10, 14 and 15 (Order components)

1шт.
