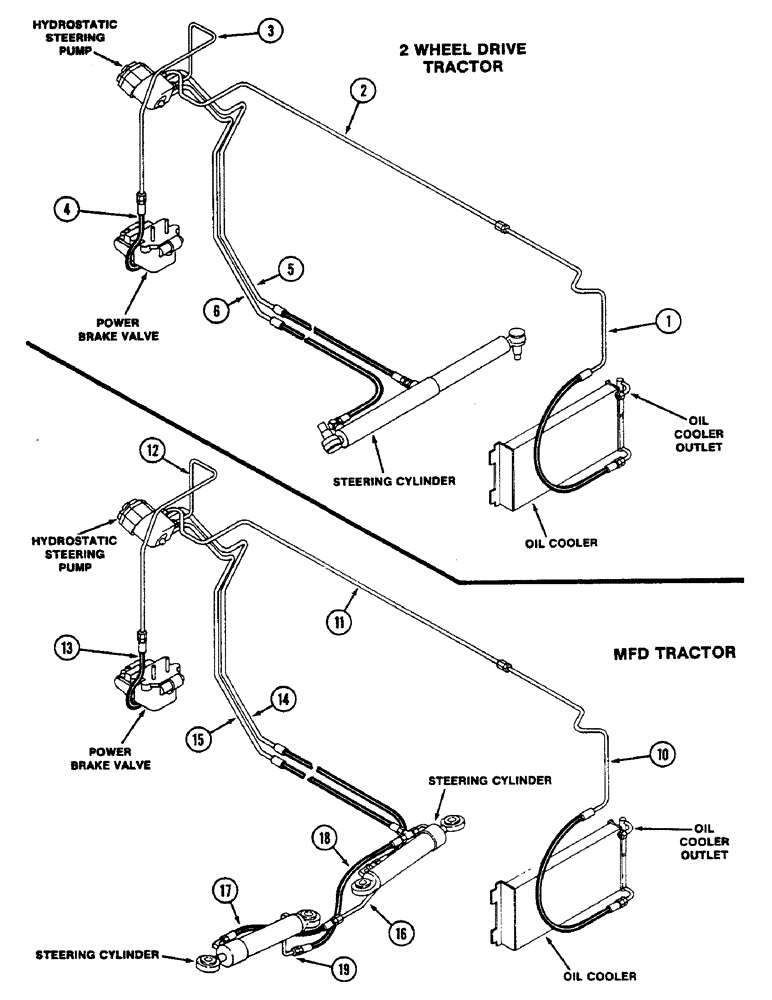

Запчасти Case IH 2290 (1-018) - PICTORIAL INDEX, STEERING HYDRAULICS, 2 WHEEL DRIVE, MECHANICAL FRONT DRIVE, MFD (00) - PICTORIAL INDEX

1

Oil Cooler Inlet Hose, Page 5-175

1шт.

2

Oil Cooler to Steering Pump Tube, Page 5-175

1шт.

3

Pump to Valve Hose Tube, Page 5-175

1шт.

4

Pump Tube to Valve Hose, Page 5-175

1шт.

5

Left Steering Cylinder Hose, Page 5-175

1шт.

6

Right Steering Cylinder Hose, Page 5-175

1шт.

10

Oil Cooler Inlet Hose, Page 5-175, mechanical front drive

1шт.

11

Oil Cooler to Steering Pump Tube, Page 5-175, mechanical front drive

1шт.

12

Pump to Valve Hose Tube, Page 5-175, mechanical front drive

1шт.

13

Pump Tube to Valve Hose, Page 5-175, mechanical front drive

1шт.

14

Left Steering Cylinder Hose, Page 5-175, mechanical front drive

1шт.

15

Right Steering Cylinder Hose, Page 5-175, mechanical front drive

1шт.

16

Left Steering Tube, Page 5-177, mechanical front drive

1шт.

17

Steering Hydraulic Hose, Page 5-177, mechanical front drive

1шт.

18

Steering Hydraulic Hose, Page 5-177, mechanical front drive

1шт.

19

Right Steering Tube, Page 5-177, mechanical front drive

1шт.
