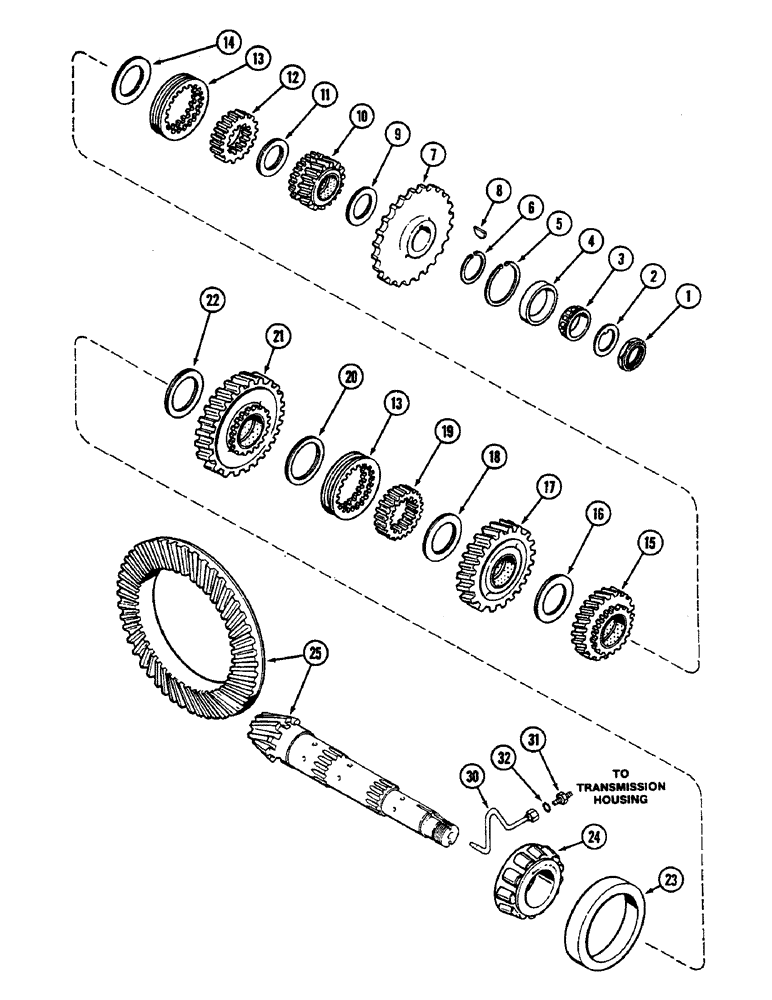

Запчасти Case IH 2290 (6-278) - TRANSMISSION COUNTERSHAFT, PRIOR TO TRANSMISSION SERIAL NUMBER 10237494 (06) - POWER TRAIN

1

A60019

NUT

- bearing lock

1шт.

2

A28170

WASHER

- bearing

1шт.

3

R32217

ROLLER BEARING,50 mm ID x 21.5 mm

CONE - bearing, countershaft front, 1-31/32 inch ID (50 MM)

1шт.

4

R32216

BEARING CUP,82 mm OD x 17 mm

CUP - bearing, countershaft front, 3-15/64 inch OD (82 MM)

1шт.

5

A152194

RING

- snap, bearings

1шт.

6

A150930

RING

- snap, park lock gear, 0.078 (1.98 MM)

1шт.

6

A152278

RING

- snap, park lock gear, 0.088 inch (2.24 MM)

1шт.

6

A152279

RING

- snap, park lock gear, 0.098 inch (2.49 MM)

1шт.

6

A152280

RING

- snap, park lock gear, 0.108 inch (2.74 MM)

1шт.

6

A152281

RING

- snap, park lock gear, 0.118 inch (3.0 MM)

1шт.

6

A152282

RING

- snap, park lock gear, 0.128 inch (3.25 MM)

1шт.

6

A152283

RING

- snap, park lock gear, 0.138 inch (3.51 MM)

1шт.

7

A154376

GEAR

- park lock

1шт.

8

126-136

WOODRUFF KEY,#23, 5/16" x 1 3/8", HT

KEY - Woodruff, 5/16 x 1-3/8 inch

1шт.

9

A152706

WASHER

- thrust, 0.109 inch (3 MM)

1шт.

10

A152290

GEAR

- driver, fourth (19 and 31 teeth) (Prior to transmission serial no. 10207446) (Order A157205)

1шт.

10

A154183

GEAR

- driven, fourth (19 and 31 teeth) (Transmission serial no. 10207446 and after) (Order A157205)

1шт.

11

A152705

WASHER

- thrust, 0.203 inch (5 MM)

1шт.

12

A153892

HUB

- third and fourth gear (39 internal, 31 external teeth)

1шт.

13

A152320

COLLAR

- shift, sliding

2шт.

14

A152704

WASHER

- thrust, 0.156 inch (4 MM)

1шт.

15

A152288

GEAR

- driven, third (29 and 31 teeth) (Prior to transmission serial no. 10207446) (Order A157204)

1шт.

15

A154182

GEAR

- driven, third (29 and 31 teeth) (Transmission serial no. 10207446 and after) (Order A157204)

1шт.

16

A152703

WASHER, THRUST

WASHER - thrust, 0.436 inch (11 MM)

1шт.

17

A152696

GEAR

- driven second (29 and 31 teeth) (Prior to transmission serial no. 10207446) (Order A157203)

1шт.

17

A154181

GEAR

- driven second (29 and 31 teeth) (Transmission serial no. 10207446 and after) (Order A157203)

1шт.

18

A152702

WASHER

- thrust, 0.156 inch (4 MM) (Replaces A152703)

1шт.

19

A153891

HUB

- first, second and reverse gear (43 internal, 31 external teeth)

1шт.

20

A152701

WASHER

- thrust, 0.156 inch (4 MM)

1шт.

21

A152691

GEAR

- driven, first (42 and 31 teeth) (Prior to transmission serial no. 10207446) (Order A157202)

1шт.

21

A154180

GEAR

- driven, first (42 and 31 teeth) (Transmission serial no. 10207446 and after) (Order A157202)

1шт.

22

A152700

WASHER

- thrust, 0.250 inch (6 MM)

1шт.

23

CASA140553

CUP

- bearing, countershaft gear, 6-3/4 inch OD (171 MM)

1шт.

24

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - bearing, countershaft gear, 3 inch ID (76 MM)

1шт.

25

A153904

GEAR

SET - pinion and countershaft (Matched set) (Order A155644 and A155636)

1шт.

30

A154742

TUBE

- countershaft lube, internal (Transmission serial no. 10204528 and after)

1шт.

31

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

CONNECTOR - straight, 1/4 tube x 7/16-20 inch

1шт.

32

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64 inch (9 x 13 x 1 MM)

1шт.
