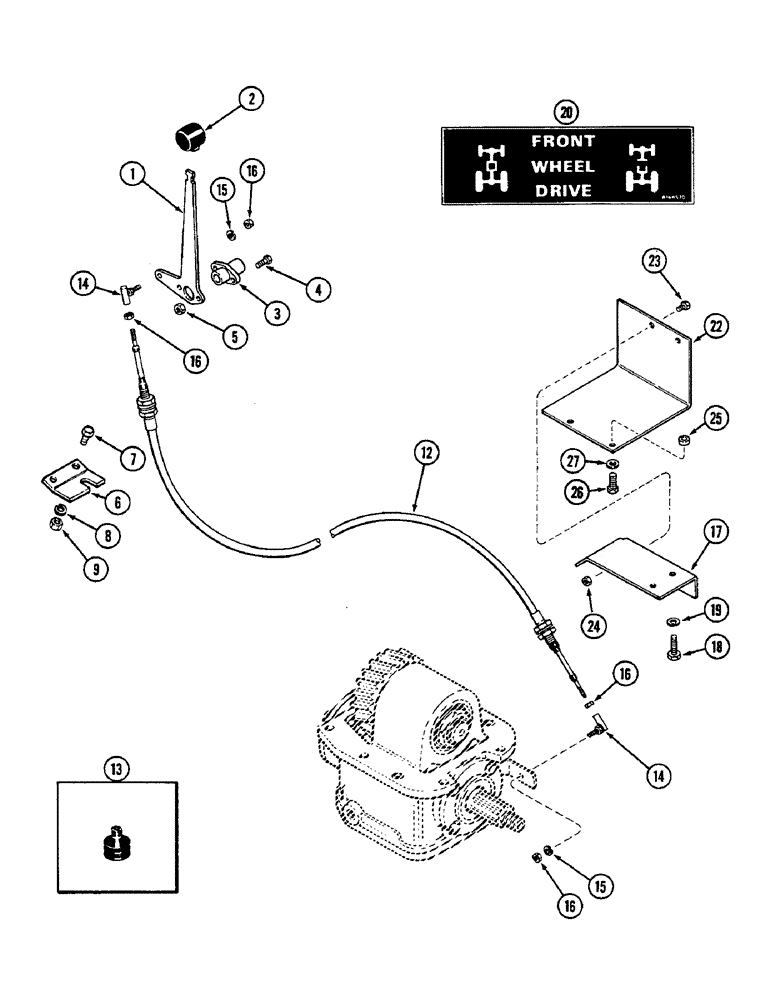

Запчасти Case IH 2290 (6-272) - ENGAGING CONTROL, MFD TRACTORS (06) - POWER TRAIN

1

A164096

LEVER

- engaging control (Carraro no. 110420)

1шт.

2

A139945

KNOB

- control lever (Carraro no. 23113)

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - control lever

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Bearing to lever Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

6

A164807

BRACKET

- console (Replaces A164177)

1шт.

7

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Bracket to console Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

8

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64 inch (11 x 25 x 2 MM)

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

12

S108254

CABLE

- control

1шт.

13

A145931

BELLOWS

BOOT - control cable (Replaces L77821 grommet)

1шт.

14

A60604

BALL JOINT

JOINT - ball, 5/16 inch NF

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Ball joint to lever 5/16"

2шт.

16

86637933

JAM NUT,5/16" - 24, Gr 5

Jam, 5/16"- 24, G5, Ball joint to cable

4шт.

17

A163386

BRACKET

- cable (See note)

1шт.

18

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket to clutch housing Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

A164570

DECAL

- MFD control

1шт.

22

A167208

GUARD

SHIELD - external shift lever (Replaces A164621)

1шт.

23

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

D75086

BUSHING

SPACER - shield

2шт.

26

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

27

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 1/16 inch (7 x 16 x 2 mm)

2шт.
