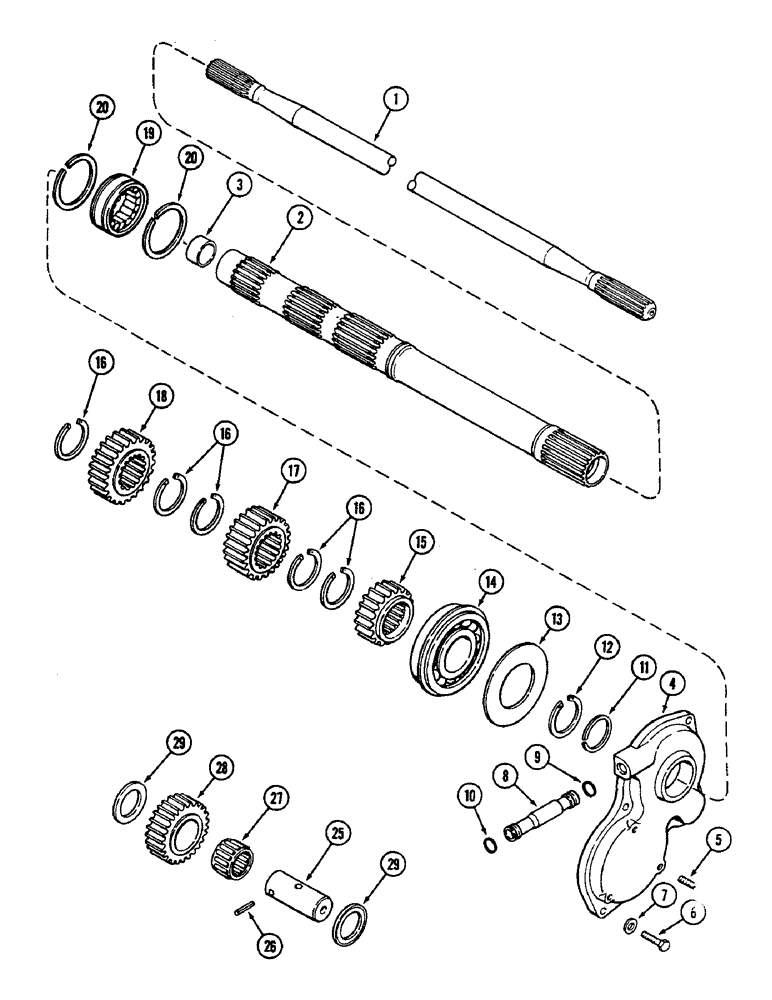

Запчасти Case IH 2290 (6-270) - MECHANICAL SHIFT TRANSMISSION, DRIVE AND REVERSE IDLER SHAFTS (06) - POWER TRAIN

1

A150822

SHAFT

- PTO and hydraulic pump drive, front

1шт.

2

A151979

SHAFT

ASSEMBLY - drive, Includes: Ref. 3

1шт.

3

A65421

BUSHING,28.57mm ID x 35.81mm OD x 19.05mm L

- drive shaft

1шт.

4

A151230

RETAINER

- bearing

1шт.

5

178-432

SET SCREW,Hex Soc, 1/4"-20 x 1"

SCREW - hex socket head, 1/4-20 x 1 inch

3шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

7

A50820

WASHER

- 27/64 x 3/4 x 7/64 inch (11 x 19 x 3 MM)

4шт.

8

A153811

TUBE

- oil (Replaces A142239)

1шт.

9

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16 inch (13 x 16 x 2 MM) (Order G102845)

1шт.

10

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 x 11/16 x 1/16 inch (14 x 18 x 2 MM)

1шт.

11

A151228

RING

- seal

2шт.

12

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, shaft on shaft

1шт.

13

A64764

GUARD

SHIELD - oil, 2-3/8 x 4-21/64 x 3/64 inch (60 x 110 x 1 MM)

1шт.

14

A58098

BALL BEARING,1.9685" ID x 4.58" OD x 1.063"

BEARING - drive shaft

1шт.

15

A140364

SEAL

GEAR - drive, reverse (19 teeth)

1шт.

16

A150932

RING

- snap, gear

5шт.

17

A140363

SEAL

GEAR - driver, low range (20 teeth)

1шт.

18

A140362

RING

GEAR - driver, high range (23 teeth)

1шт.

19

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

BEARING - roller, drive shaft rear

1шт.

20

A28153

RING

- snap, rear bearing

2шт.

25

A142055

SHAFT

- reverse idler

1шт.

26

135-358

GROOVED PIN,1/4" x 1 1/4", Type F

Pin, Grooved, 1/4" x 1 1/4", Type F

1шт.

27

A142052

NEEDLE BEARING,1.375" ID x 1.751" OD x 1.25"

BEARING - needle

1шт.

28

A140365

SEAL

GEAR - reverse idler (22 teeth)

1шт.

29

A152713

THRUST WASHER

WASHER - thrust, 0.141 inch (4 MM)

2шт.
