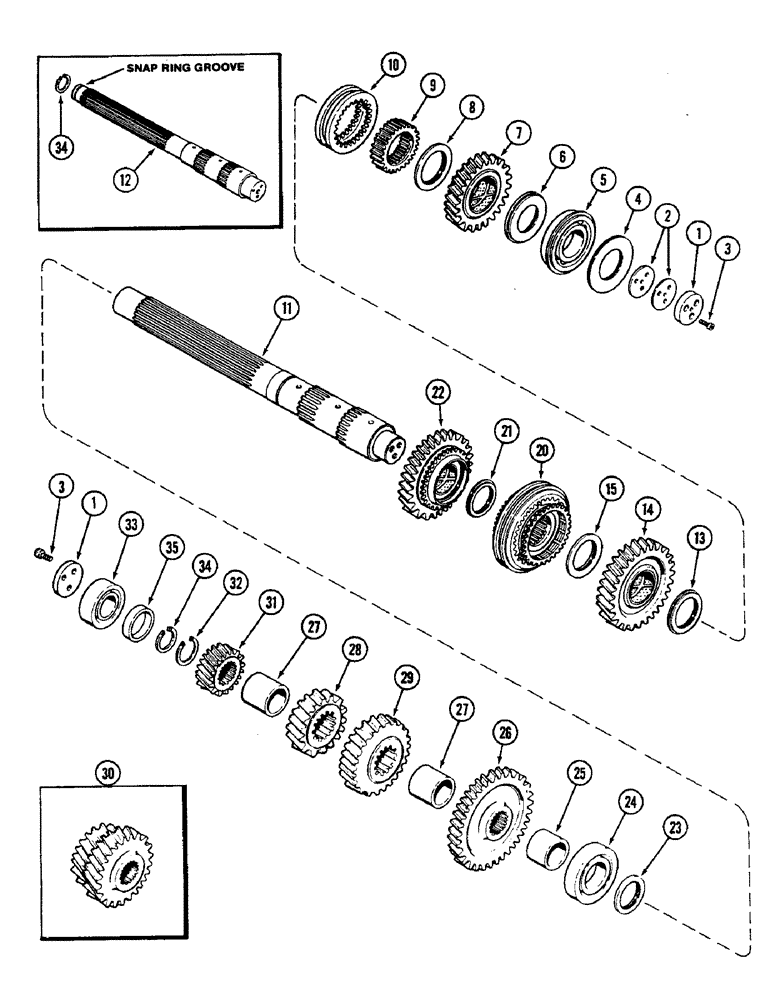

Запчасти Case IH 2290 (6-268) - MECHANICAL SHIFT TRANSMISSION, INTERMEDIATE SHAFT (06) - POWER TRAIN

1

A150007

PLATE

- retaining

2шт.

2

A150006

SHIM

- plate, 0.005 inch (0.127 MM)

1шт.

2

A150005

SHIM

- plate, 0.007 inch (0.178 MM)

1шт.

3

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

SCREW - hex socket head nyloc, 3/8 x 7/8 inch

6шт.

4

A142034

GUARD

SHIELD - oil

1шт.

5

A76512

BALL BEARING,2.1654" ID x 5.09" OD x 1.1417"

BEARING - ball, front 2-5/32 inch ID (55 MM)

1шт.

6

A152712

WASHER

- thrust, 0.387 inch (10 MM)

1шт.

7

A154184

GEAR

- driven, reverse (36 external teeth) (Replaces A150080)

1шт.

8

A152711

WASHER

- thrust, 0.187 inch (45 MM)

1шт.

9

A140372

HUB

- shaft pinion, first, second and reverse (43 internal and 31 external teeth)

1шт.

10

A152320

COLLAR

- shaft sliding

1шт.

11

A155048

SHAFT

- intermediate (Used without snap ring)

1шт.

12

A150444

SHAFT

- intermediate (Used with snap ring)

1шт.

13

A152710

WASHER

- thrust, 0.141 inch (4 MM)

1шт.

14

A152698

GEAR

- driven, low range (46 external teeth)

1шт.

15

A152709

WASHER

- thrust, 0.141 inch (4 MM)

1шт.

20

A152318

SYNCHRONIZER

- hi/lo range (39 internal and 39 external teeth)

1шт.

21

A152708

WASHER

- thrust, 0.141 inch (4 MM)

1шт.

22

A152315

GEAR

- driven, hi range (42 external teeth)

1шт.

23

A152707

WASHER

- thrust, 0.234 inch (6 MM)

1шт.

24

A142054

ROLLER BEARING,54.99mm ID x 120mm OD x 29mm W

BEARING - roller, center 2-5/32 inch ID (55 MM)

1шт.

25

A151823

BUSHING

SPACER - fourth gear and center bearing, 2-9/64 x 2-1/2 x 1-45/64 inch (54 x 63 x 43 MM)

1шт.

26

A150003

GEAR

- driver, fourth (33 internal and 40 external teeth)

1шт.

27

A151822

SPACER

- drive gear, 2-9/64 x 2-1/2 x 2-1/4 inch (54 x 63 x 43 MM)

2шт.

28

A155486

GEAR

- driver (20 teeth) (Transmission serial no. 1024095 and after) (Order A168042)

1шт.

29

A155487

GEAR

- driver (30 teeth) (Transmission serial no. 10240925 and after) (Order A168041)

1шт.

30

A150440

GEAR

- driver, (20 and 30 external teeth and 33 internal splines) (Prior to transmission serial no. 10240925) (Order 1-A155486 and 1-A155487)

1шт.

31

A150530

GEAR

- driver, first (17 external and 33 internal teeth) (Order A168040)

1шт.

32

A150930

RING

- snap, Serial Range: gears-shaft

1шт.

33

A67350

BALL BEARING,49.99mm ID x 90mm OD x 30.16mm W

BEARING - ball, rear 1-31/32 inch ID (50 MM)

1шт.

34

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, rear bearing (Used with A150444 shaft)

2шт.

35

A153624

BUSHING

SPACER - first drive gear

1шт.
