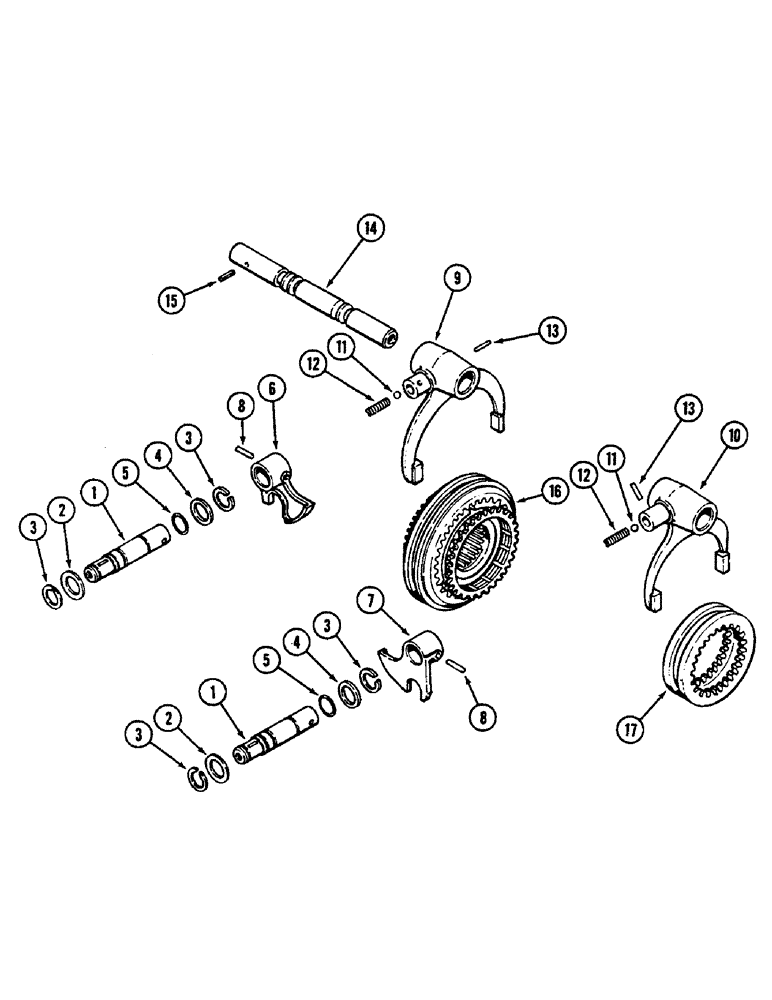

Запчасти Case IH 2290 (6-266) - MECHANICAL SHIFT TRANSMISSION, RANGE AND REVERSE SHIFT MECHANISM (06) - POWER TRAIN

1

A140904

SHAFT

- shifter

2шт.

2

F67231

WASHER

- 1-1/32 x 1-1/2 x 1/16 inch (26 x 38 x 2 MM)

2шт.

3

A37235

SNAP RING,#100, .941", Ext

RING - snap, shifter shaft

4шт.

4

A153915

WASHER

- inner, 1 x 1-1/4 x 1/32 inch (25 x 32 x 1 MM) (Order A155861)

2шт.

5

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- 13/16 x 1 x 3/32 inch (21 x 25 x 2 MM)

2шт.

6

A146894

LEVER - shift, range

1шт.

7

A146893

LEVER - shift, reverse

1шт.

8

138-2040

PIN,1/4" x 1 1/2", Coiled

2шт.

9

A152332

FORK

- gear shifter, range

1шт.

10

A152333

FORK

- gear shifter, reverse

1шт.

11

211-12

BALL,7/16 Dia

- 7/16 inch diameter (11 MM)

2шт.

12

A26530

SPRING

- detent, forks (1-9/16 inch free length) (40 MM)

2шт.

13

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN - roll, 1/4 x 7/8 inch

2шт.

14

A154776

RAIL

- shifter

1шт.

15

135-365

GROOVED PIN,5/16" x 1", Type F

PIN - groove, Type C, 5/16 x 1 inch

1шт.

16

A152318

SYNCHRONIZER

- Hi/lo range

1шт.

17

A152320

COLLAR

- sliding, reverse shift

1шт.
