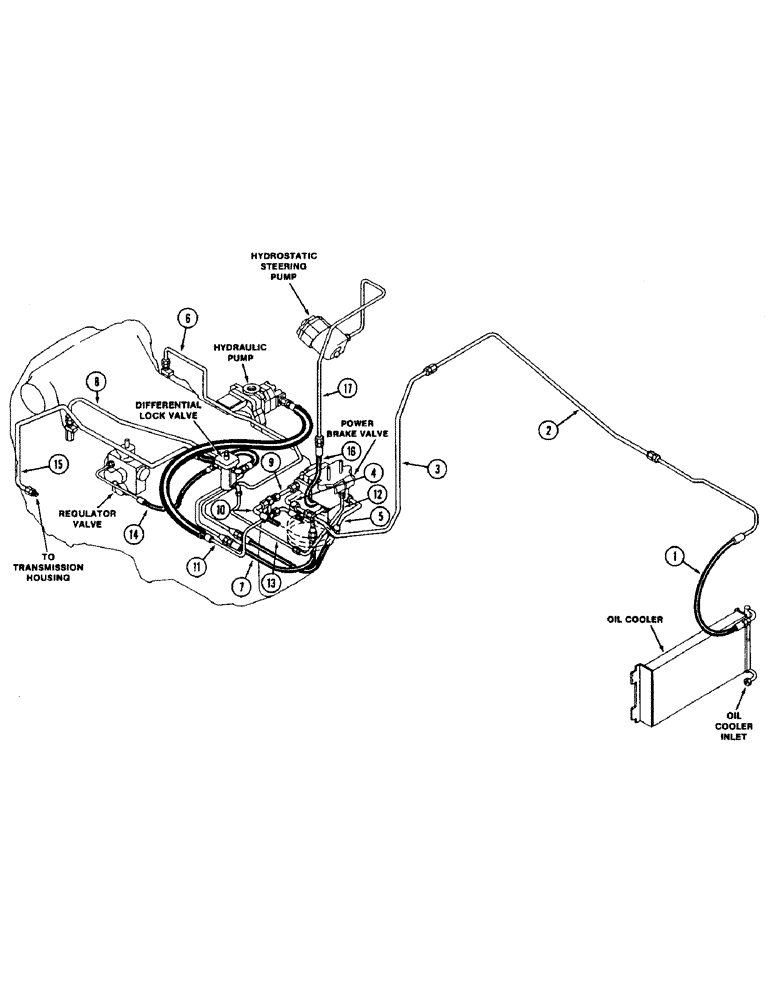

Запчасти Case IH 2290 (1-016) - PICTORIAL INDEX, BRAKE HYDRAULICS (00) - PICTORIAL INDEX

1

Oil Cooler Outlet Tube, Page 5-175

1шт.

2

Oil Cooler Outlet Center Tube, Page 5-175

1шт.

3

Oil Cooler Outlet to Brake Valve Tube, Page 5-175

1шт.

4

Brake Valve Sump Manifold Tube, Page 5-175

1шт.

5

Left Front Brake Hose, Page 7-333

1шт.

6

Left Rear Brake Tube, Page 7-333

1шт.

7

Right Front Brake Hose, Page 7-333

1шт.

8

Right Rear Brake Tube, Page 7-333

1шт.

9

Valve Inlet Tube, Page 7-335

1шт.

10

Wave Delay Hose, Page 7-335

1шт.

11

Hydraulic Pump to Valve Hose, Page 7-335

1шт.

12

Front Brake Valve to Lock Valve Tube, Page 7-349

1шт.

13

Rear Brake Valve to Lock Valve Tube, Page 7-349

1шт.

14

Regulator Valve to Differential Lock Valve Hose, Page 7-349

1шт.

15

Lock Valve to Transmission Housing Hose, Page 7-349

1шт.

16

Pump Tube to Valve Hose, Page 5-175

1шт.

17

Pump to Valve Hose Tube, Page 5-175

1шт.
