Запчасти Case IH 2290 (6-264) - MECHANICAL SHIFT TRANSMISSION, FOOT CLUTCH LINKAGE (06) - POWER TRAIN

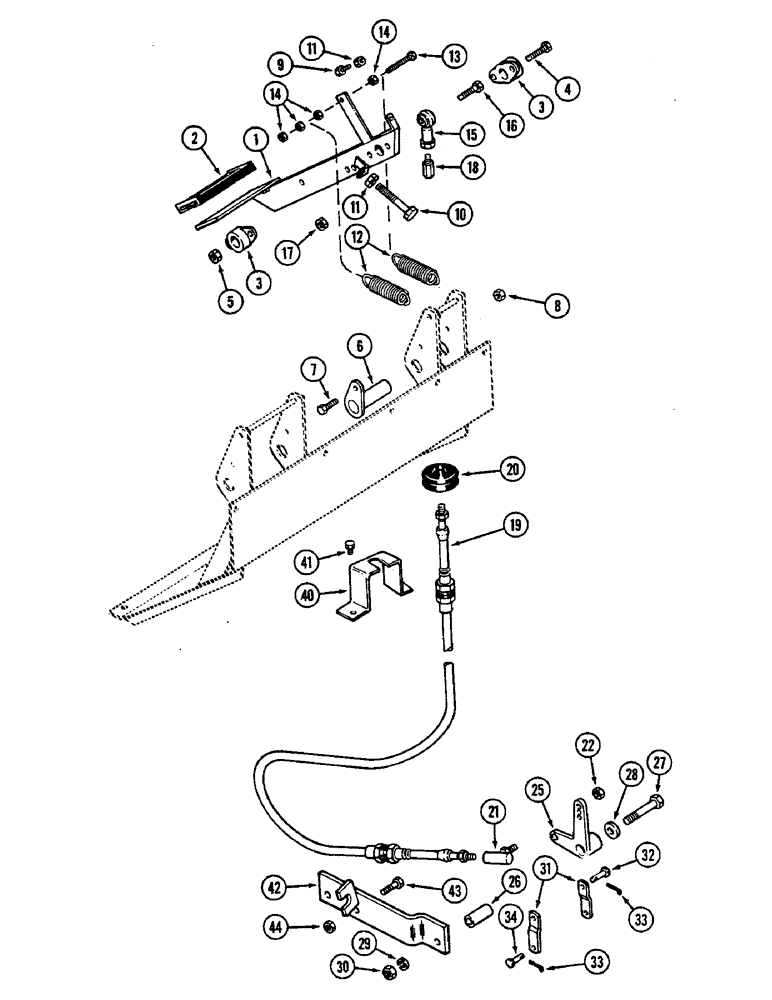

Схема запчастей Case IH 2290 - (6-264) - MECHANICAL SHIFT TRANSMISSION, FOOT CLUTCH LINKAGE (06) - POWER TRAIN
41
1
13
30
14
33
15
5
27
3
42
21
25
2
8
11
7
16
18
29
40
32
9
31
4
44
33
19
10
22
34
26
3
11
12
14
17
20
28
43
6

Артикул

Название

Примечание

Количество

1

A147562

PEDAL

- foot

1шт.

2

F9197

PAD

TREAD - rubber, foot pedal

1шт.

3

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- pivot, foot pedal

2шт.

4

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

5

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

6

A60305

SHAFT

- pivot, foot pedal

1шт.

7

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

8

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex lock, 5/16 inch NC

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Upper stop) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

10

113-116

BOLT,Hex, 5/16" - 18 x 3-1/2", SST

- hex, 5/16 NC x 3-1/2 inch (Lower stop)

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

12

A161864

SPRING

- return, pedal

2шт.

13

113-57

BOLT,Hex, 1/4" - 20 x 2", Gr 5, Full Thd

- hex, 1/4 NC x 2 inch

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

15

A32398

BALL JOINT

END - female, cable to pedal (Replaces A67310)

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

17

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

18

A135242

ADAPTER

- end to cable (3/8 NF to 1/4 inch NF) (Order A161332) (See note)

1шт.

18

A161332

ADAPTER

- end to cable (3/8 NF to 5/16 inch NF)

1шт.

19

A135243

CABLE

- clutch control, 1/4 inch end (Order A161778) (See note)

1шт.

19

A161778

CABLE

- clutch control, 5/16 inch end

1шт.

20

A141739

BOOT

COVER -, Serial Range: cable-floor

1шт.

21

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, cable to bellcrank (1/4 inch NF) (Order A60604) (See note)

1шт.

21

A60604

BALL JOINT

JOINT - ball, cable to bellcrank (5/16 inch NF)

1шт.

22

129-121

NUT,1/4"-28, G5

1шт.

22

129-122

NUT,5/16"-24, G5

1шт.

25

A161350

BUZZER

BELLCRANK - valve spool

1шт.

26

A65345

SHAFT

- pivot, bellcrank

1шт.

27

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

28

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1-1/16 inch (10 x 21 x 2 MM)

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

31

A63367

LINK

-, Serial Range: bellcrank-spool

2шт.

32

141-54

CLEVIS PIN,3/8" x 1 1/16"

link to bellcrank (10 x 28 mm) 3/8" x 1 1/16"

1шт.

33

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

34

A8824

PIN

- link to return lever, 1/4 x 1-7/64 inch (6 x 28 MM)

1шт.

40

A161336

CAB

BRACKET - cable (On platform)

1шт.

41

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

42

A160557

BRACKET

- cable (On torque tube) (Prior to P.I.N. 8845350)

1шт.

42

A161353

BRACKET

- cable (On torque tube) (P.I.N. 8845350 and after)

1шт.

43

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

44

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

Выбрано товаров: 42
