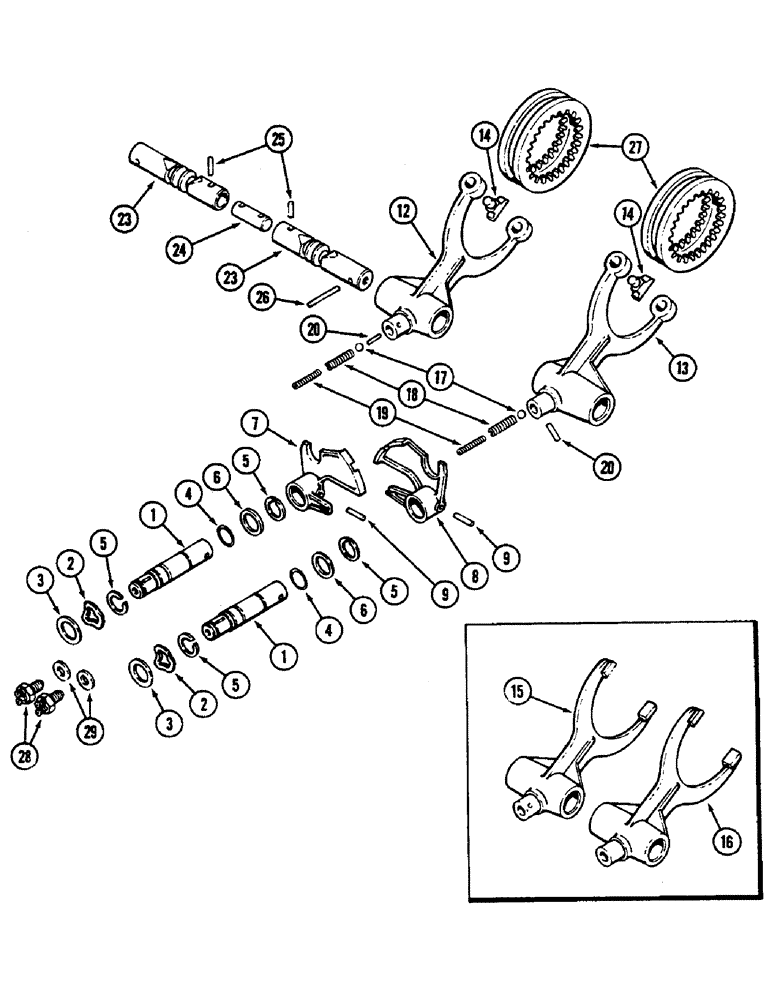

Запчасти Case IH 2290 (6-262) - MECHANICAL SHIFT TRANSMISSION, RANGE SHIFT MECHANISM (06) - POWER TRAIN

1

A140904

SHAFT

- shifter

2шт.

2

A63169

SPRING

- wave, shifter shaft

2шт.

3

G46081

BEARING WASHER

WASHER - 1 x 1-1/2 x 1/32 inch (25 x 38 x 1 MM)

2шт.

4

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- 13/16 x 1 x 3/32 inch (21 x 25 x 2 MM)

2шт.

5

A37235

SNAP RING,#100, .941", Ext

RING - snap

4шт.

6

A155861

WASHER,25.78mm ID x 31.75mm OD x 0.99mm Thk

SHIM - inner

1шт.

7

A146896

LEVER

- shift fork, first and second

1шт.

8

A146895

LEVER

- shift fork, third and fourth

1шт.

9

138-2040

PIN,1/4" x 1 1/2", Coiled

2шт.

12

A153951

FORK

- gear shifter, first and second

1шт.

13

A153952

FORK

- gear shifter, third and fourth

1шт.

14

A151622

AXLE PIN

FINGER - shifter fork

4шт.

15

A152321

FORK

- gear shifter, first and second (Order A153951 and 2-A151622)

1шт.

16

A152322

FORK

- gear shifter, third and fourth (Order A153952 and 2-A151622)

1шт.

17

211-12

BALL,7/16 Dia

- 7/16 inch diameter (11 MM)

2шт.

18

A26530

SPRING

- detent, outer, 13/32 inch (10 MM) OD

2шт.

19

A23886

SPRING

- detent, inner, 1/4 inch (6 MM) OD

2шт.

20

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

2шт.

23

A148936

RAIL

- shifter

2шт.

24

A148938

PIN

- dowel, rail

1шт.

25

138-2005

PIN,1/4" x 1", Coiled

2шт.

26

135-361

GROOVED PIN,1/4" x 2", Type F

PIN - groove, type C, 1/4 x 2 inch

1шт.

27

A152320

COLLAR

- sliding, gear shift

2шт.

28

A160237

SWITCH

- neutral start

2шт.

29

G49402

SHIM,.010" Thk

Switch (0.25 mm) .010" Thk

1шт.
