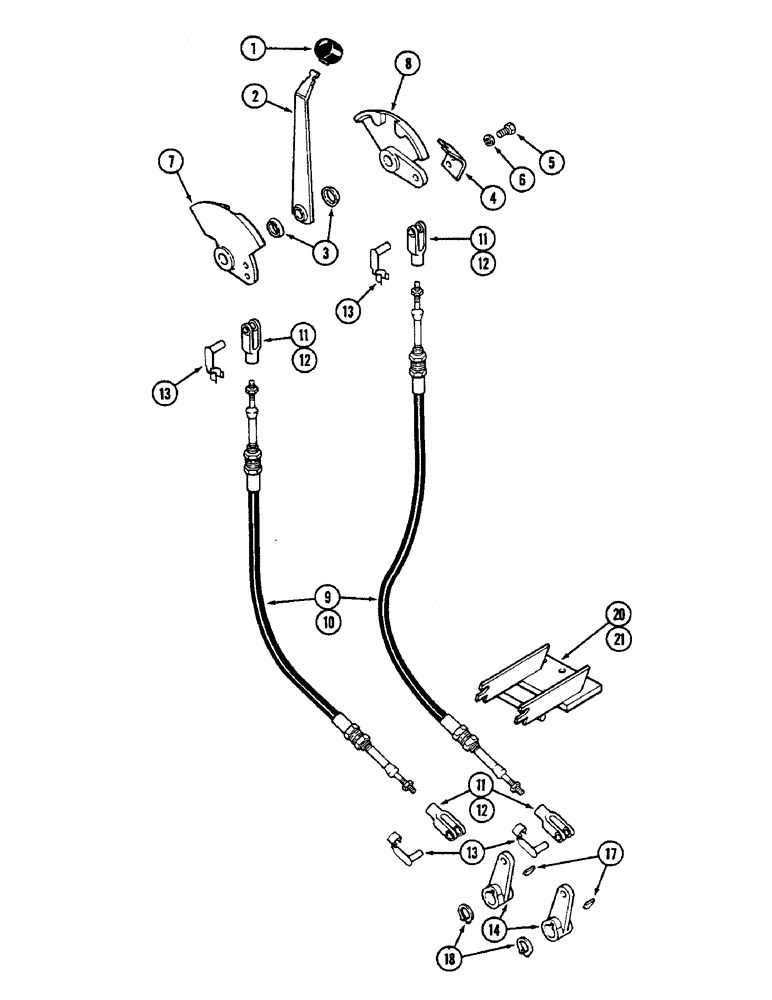

Запчасти Case IH 2290 (6-256) - MECHANICAL SHIFT TRANSMISSION, RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

- hand lever

1шт.

2

A149898

LEVER

- hand, shift control

1шт.

3

A59662

WASHER

- pivot, hand lever

2шт.

4

A160816

BRACKET

- stop, hand lever (Replaces A14770 and A149716)

1шт.

5

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7

A143835

QUADRANT

- range shift

1шт.

8

A139247

QUADRANT

- reverse shift

1шт.

9

A135243

CABLE

- control (1/4 inch Nf thread)

2шт.

10

A161778

CABLE

- control (5/16 inch NF thread)

2шт.

11

A60661

YOKE

- control cable (1/4 inch NF thread)

4шт.

12

A160630

CLEVIS,5/16" - 24

YOKE - control cable (5/16 inch Nf thread)

4шт.

13

A147652

PIN

- yoke

4шт.

14

A147534

LEVER

- transmission shaft, range and reverse

2шт.

17

126-118

WOODRUFF KEY,#10, 5/32" x 7/8", HT

KEY - Woodruff, 5/32 x 7/8 inch (4 x 22 MM)

2шт.

18

F62023

SNAP RING,#93, Ext

Ring, Snap, , lever to shaft #93, Ext

2шт.

20

A147535

STRAP

- control cable (For 1/4 inch cable) (Order A160702)

1шт.

21

A160702

STRAP

- control cable (For 5/16 inch cable)

1шт.
