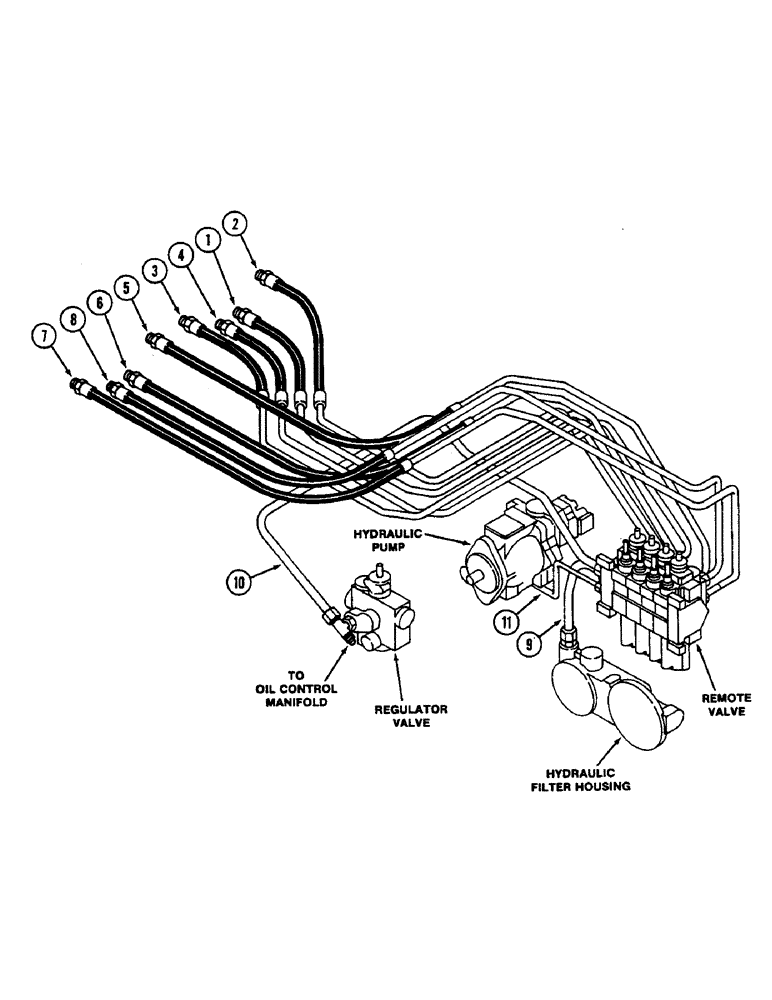

Запчасти Case IH 2290 (1-014) - PICTORIAL INDEX, REMOTE HYDRAULICS (00) - PICTORIAL INDEX
11
5
10
9
8
6
3
2
4
1
7
№
Артикул
Название
Примечание
Количество
1
No. 1 Remote Coupling Hose, Page 8-403
1шт.
2
No. 2 Remote Coupling Hose, Page 8-403
1шт.
3
No. 3 Remote Coupling Hose, Page 8-403
1шт.
4
No. 4 Remote Coupling Hose, Page 8-403
1шт.
5
No. 5 Remote Coupling Hose, Page 8-407
1шт.
6
No. 6 Remote Coupling Hose, Page 8-407
1шт.
7
No. 7 Remote Coupling Hose, Page 8-423
1шт.
8
No. 8 Remote Coupling Hose, Page 8-423
1шт.
9
Remote Valve to Filter Housing Tube, Page 8-403
1шт.
10
Regulator Valve to Remote Valve Tube, Page 8-403
1шт.
11
Pump to Remote Valve Tube, Page 8-371
1шт.
Выбрано товаров: 11
