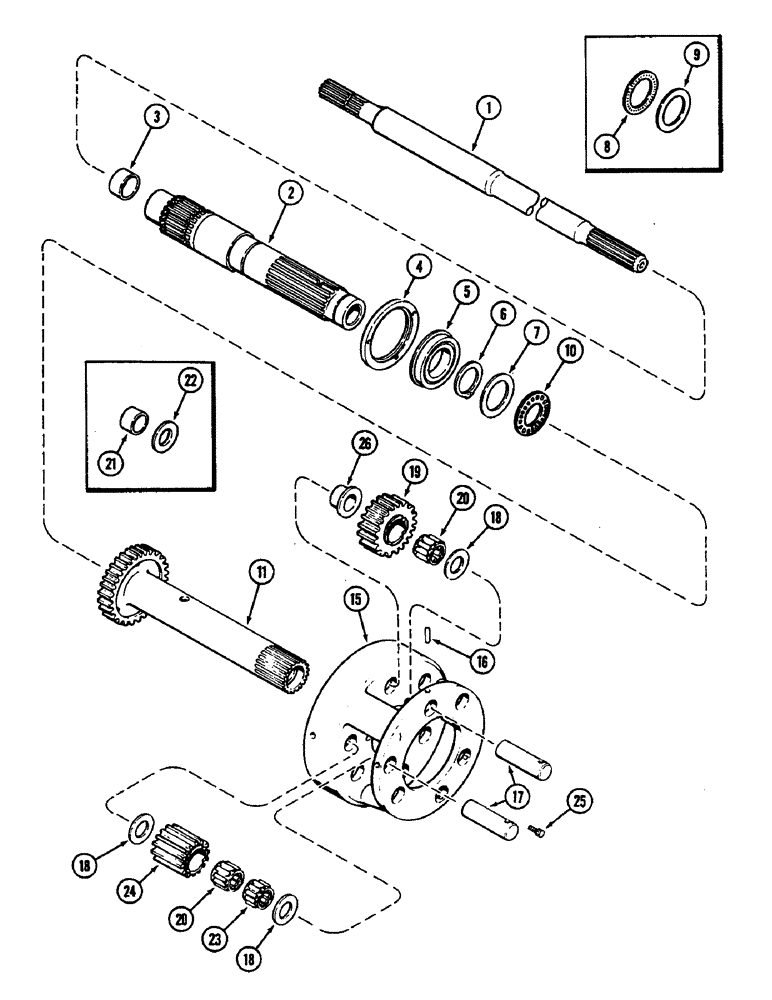

Запчасти Case IH 2290 (6-238) - POWER SHIFT TRANSMISSION, CLUTCH PLANETARY (06) - POWER TRAIN

1

A156861

SHAFT

- input, power and PTO drive, front (Replaces A150822)

1шт.

2

A142243

SHAFT

ASSEMBLY - pinion drive (Order A168013)

1шт.

3

A156939

BUSHING,31.83mm ID x 35.88mm OD x 19.05mm L

- PTO shaft support (Replaces A65421) (1 1/4" I.D.)

1шт.

Ref #3A - A65421 Bushing (1 1/8" I.D.)

1шт.

4

A146603

RETAINER

- carrier bearing

1шт.

5

A63109

BEARING, BALL

BEARING - ball, carrier (Includes snap ring)

1шт.

6

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

7

A54021

WASHER

RACE - thrust, 1-3/4 x 2-1/2 x 3/32 inch (44 x 64 x 2 MM)

1шт.

8

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - needle, thrust

1шт.

9

H147785

BEARING WASHER

WASHER - thrust bearing, 1-3/4 x 2-1/2 x 1/32 inch (44 x 64 x 1 MM)

1шт.

10

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING - flanged, needle thrust (Replaces A54022 and H147785)

1шт.

11

A157947

SHAFT

- planetary input drive (Replaces A148776)

1шт.

15

A148692

CARRIER

- planetary 5.160" Long

1шт.

16

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, (5 x 19 mm) 3/16" x 3/4", Slotted

6шт.

17

A63107

PIN

- planetary gear

6шт.

18

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planetary gear, 1 x 1-3/4 x 1/32 inch (25 x 44 x 1 MM)

6шт.

19

A63105

GEAR

- planetary, short (36 teeth) 1-1/4 inch long (32 MM)

3шт.

20

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planetary gear, 1 x 1-5/16 x 1-1/4 inch (25 x 33 x 32 MM)

6шт.

21

A58407

BUSHING

SPACER - short gear, 1 x 1-1/4 x 49/64 inch (26 x 32 x 19 MM) (Order A140878)

3шт.

22

A150410

SPACER

RACE - thrust, short gear, 1 x 1-3/4 x 3/32 inch (26 x 44 x 2 MM) (Order A140877)

3шт.

23

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller, planetary gear, 1 x 1-5/16 x 1 inch (25 x 33 x 25 MM)

3шт.

24

A63108

GEAR

- planetary, long (24 teeth) (2-5/16 inch long) (59 MM)

3шт.

25

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - hex socket head, 1/4-28 x 5/8 inch

3шт.

26

A140877

SPACER,25.65mm ID x 31.88mm OD x 27.9mm L

- flanged, short gear (Replaces A58407 and A150410)

3шт.
