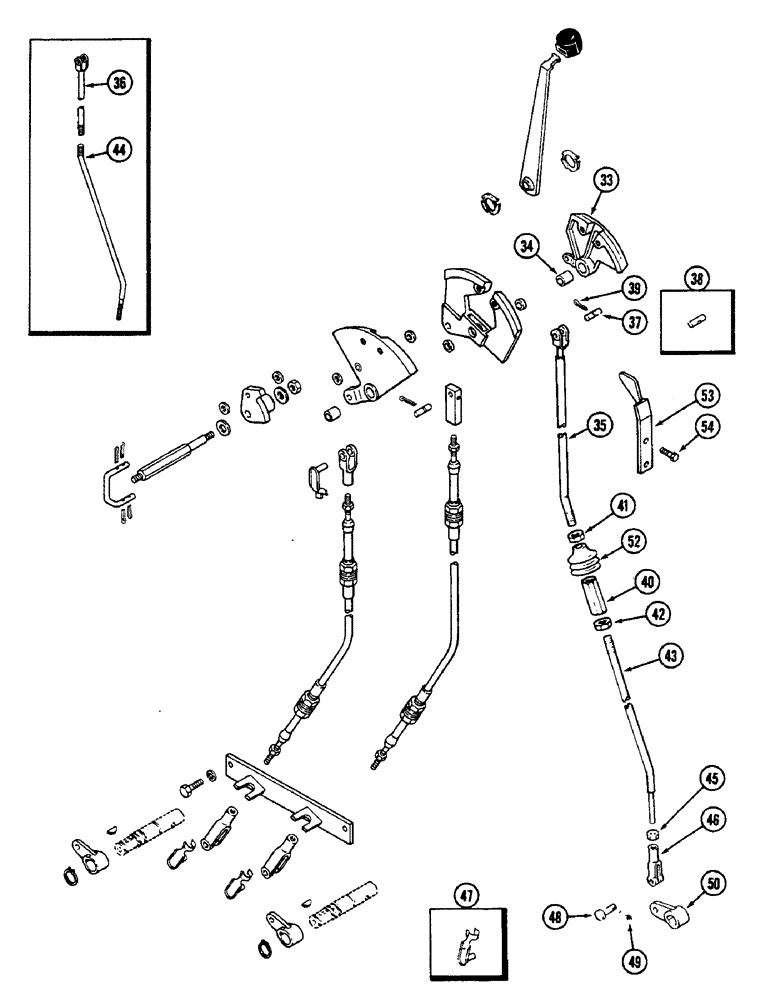

Запчасти Case IH 2290 (6-228) - POWER SHIFT TRANSMISSION, PARKING LOCK CONTROL (06) - POWER TRAIN

33

A160497

QUADRANT

ASSEMBLY - parking lock (Order A161147 and A145484)

1шт.

33

A161147

QUADRANT

ASSEMBLY - parking lock (Replaces A160497), Includes: Ref. 34

1шт.

34

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- pivot

1шт.

35

A161809

ROD

- park lock, upper (P.I.N. 9906292 and after)

1шт.

36

A143673

ROD

- upper, includes yoke (Prior to P.I.N. 9906292)

1шт.

37

A145484

PIN,9.46mm OD x 28.57mm L

- rod to quadrant (With groove used with A161147)

1шт.

38

A59258

PIN

- rod to quadrant (With outer hole used with A160497)

1шт.

39

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

1шт.

40

A145050

TURNBUCKLE

- control rod

1шт.

41

129-165

JAM NUT,Jam, 1/2"-20, G5

(RH thread) Jam, 1/2"-20, G5

1шт.

42

129-376

NUT,Jam, 1/2"-20, G5, LH

- hex jam, 1/2 inch NF (Left-hand thread)

1шт.

43

A161810

ROD

- park lock, lower (P.I.N. 9906292 and after)

1шт.

44

A145930

ROD

- lower (Prior to P.I.N. 9906292)

1шт.

45

129-123

NUT,3/8"-24, G5

1шт.

46

213-41

ADJUSTABLE CLEVIS,3/8"-24

- lower rod 3/8"-24

1шт.

47

A147652

PIN

- yoke (Order ref 48 and 49)

1шт.

48

141-54

CLEVIS PIN,3/8" x 1 1/16"

(Replaces A147652) 3/8" x 1 1/16"

1шт.

49

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

Pin, Split (Cotter), (2 x 51 MM) 3/32" x 2"

1шт.

50

REF

INSTRUCTION

LEVER - parking lock shaft (See Figure 6-290 and 6-292)

1шт.

52

A145931

BELLOWS

GROMMET - rod

1шт.

53

A141543

BRACKET

- guide, hand lever

1шт.

54

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex self tapping, 1/4 x 3/4 inch

2шт.
