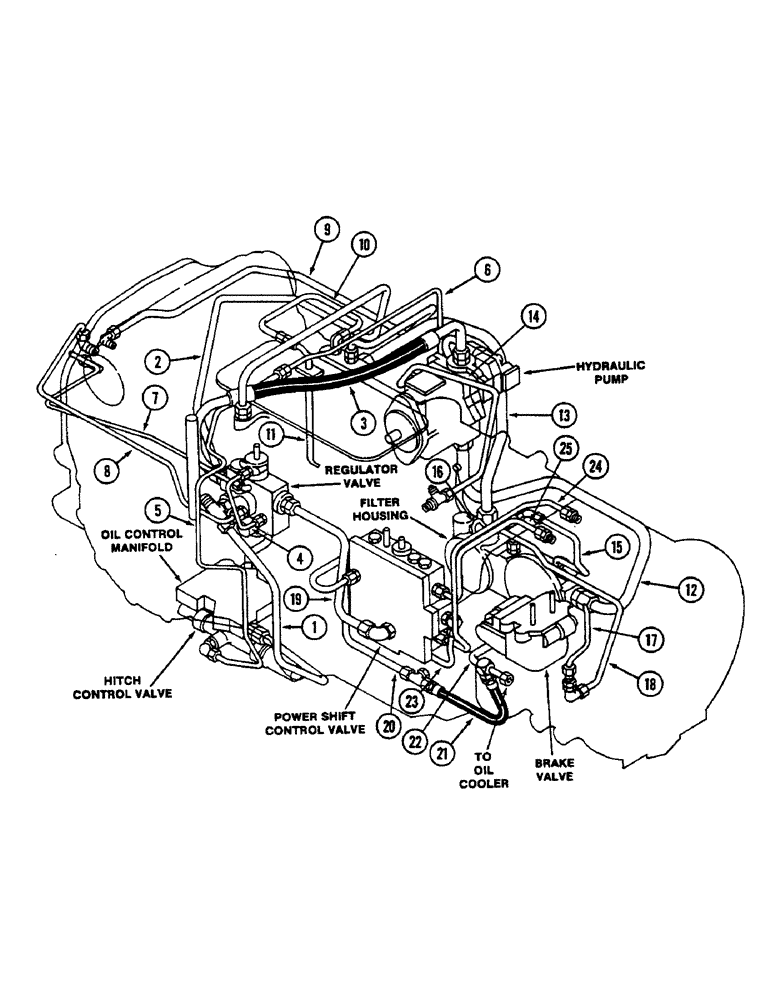

Запчасти Case IH 2290 (1-012) - PICTORIAL INDEX, MAIN HYDRAULICS, POWER SHIFT (00) - PICTORIAL INDEX

1

Regulator Valve to Manifold Tube, Page 4-471

1шт.

2

Manifold to Lift Cylinder Tube, Page 8-471

1шт.

3

Pump to Regular Valve Hose, Page 8-358

1шт.

4

PTO Brake Drain Tube, Page 8-358

1шт.

5

Right Hitch Valve Pilot Tube, Page 8-371

1шт.

6

Left Hitch Valve Pilot Tube, Page 8-371

1шт.

7

Regulator Valve to PTO Brake Tube, Page 8-358

1шт.

8

Regulator Valve to PTO Clutch Tube, Page 8-358

1шт.

9

PTO from Pump Lubrication Tube, Page 8-358

1шт.

10

Spiral Bevel Supply Tube, Page 6-221

1шт.

11

Spiral Bevel Lubrication Tube, Page 6-221

1шт.

12

Filter to Pump Suction Tube, Page 8-371

1шт.

13

Transmission Charge Pump, Page 8-377

1шт.

14

Hydraulic Pump Page 8-371

1шт.

15

Transmission Countershaft Lubrication Tube, Page 8-375

1шт.

16

Transmission Countershaft Internal Lubrication Tube, Page 6-281

1шт.

17

Clutch Internal Lubrication Tube, Page 6-219

1шт.

18

C1 Clutch Lubrication Tube, Page 8-375

1шт.

19

Regulator Valve to Control Valve Supply Tube, Page 8-363

1шт.

20

Transmission Sump to Control Valve Tube, Page 8-363

1шт.

21

Brake Valve to Sump Hose, Page 8-363

1шт.

22

Brake Valve Outlet to Sump Tube, Page 7-335

1шт.

23

Reverse Lock-out Pilot , Page 8-361

1шт.

24

C1 Clutch Fill Tube, Page 8-363

1шт.

25

C4 Clutch Fill Tube, Page 8-363

1шт.
