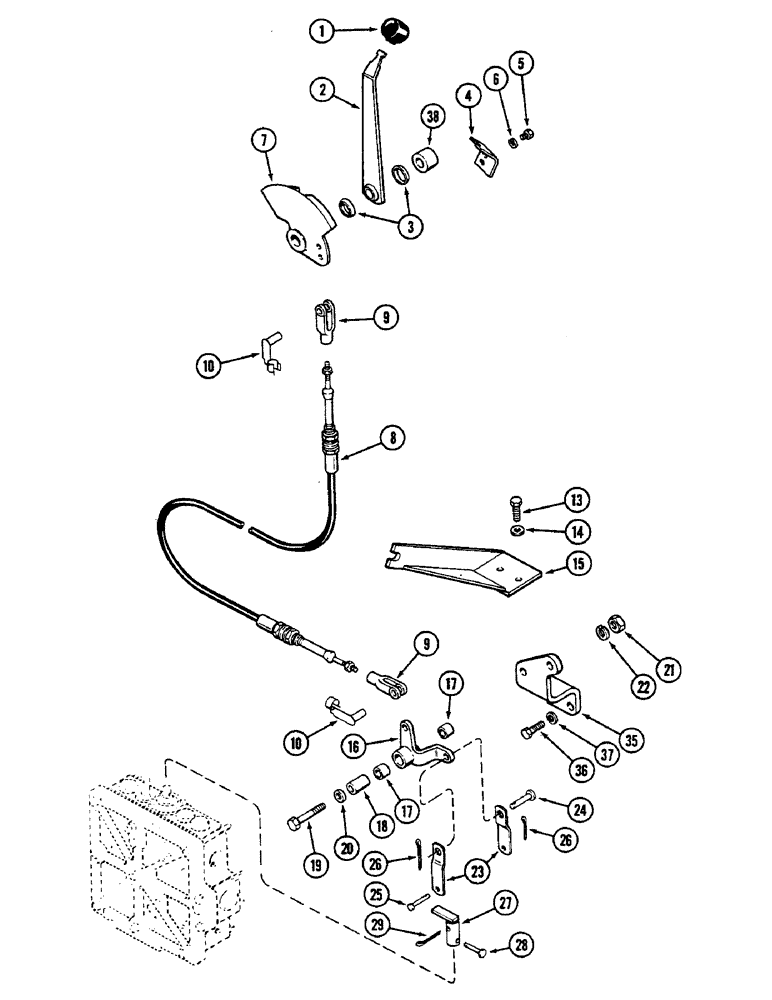

Запчасти Case IH 2290 (6-224) - POWER SHIFT TRANSMISSION, POWER SHIFT LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

- hand lever

1шт.

2

A149898

LEVER

- hand

1шт.

3

A59662

WASHER

- pivot, hand lever

2шт.

4

NLS

NO LONGER SERVICED

- stop, hand lever

1шт.

5

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7

A143835

QUADRANT

- lever

1шт.

8

A139235

CABLE

- quadrant to bellcrank (Order A143872)

1шт.

9

A60661

YOKE

- cable

2шт.

10

A147652

PIN

- yoke, spring

2шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

2шт.

15

A139248

STRAP

- mounting, control cable

1шт.

16

A139252

LEVER ASSY.

BELLCRANK ASSEMBLY - cable, Includes: Ref. 17

1шт.

17

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- pivot

2шт.

18

A65345

SHAFT

- pivot, bellcrank

1шт.

19

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

20

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 MM)

1шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

A63027

LINK

-, Serial Range: bellcrank-spool

2шт.

24

141-54

CLEVIS PIN,3/8" x 1 1/16"

link to bellcrank (10 x 28 mm) 3/8" x 1 1/16"

1шт.

25

A8824

PIN

- link to spool, 1/4 x 1-7/64 inch (6 x 28 MM)

1шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

27

A63028

LEVER

- return, valve spool

1шт.

28

A8823

PIN,6.29mm OD x 26.99mm L

- return lever, 1/4 x 27/64 inch (6 x 11 MM)

1шт.

29

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

35

A63022

BRACKET

PLATE - bellcrank support

1шт.

36

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

A59664

SPACER

- hand lever

1шт.
