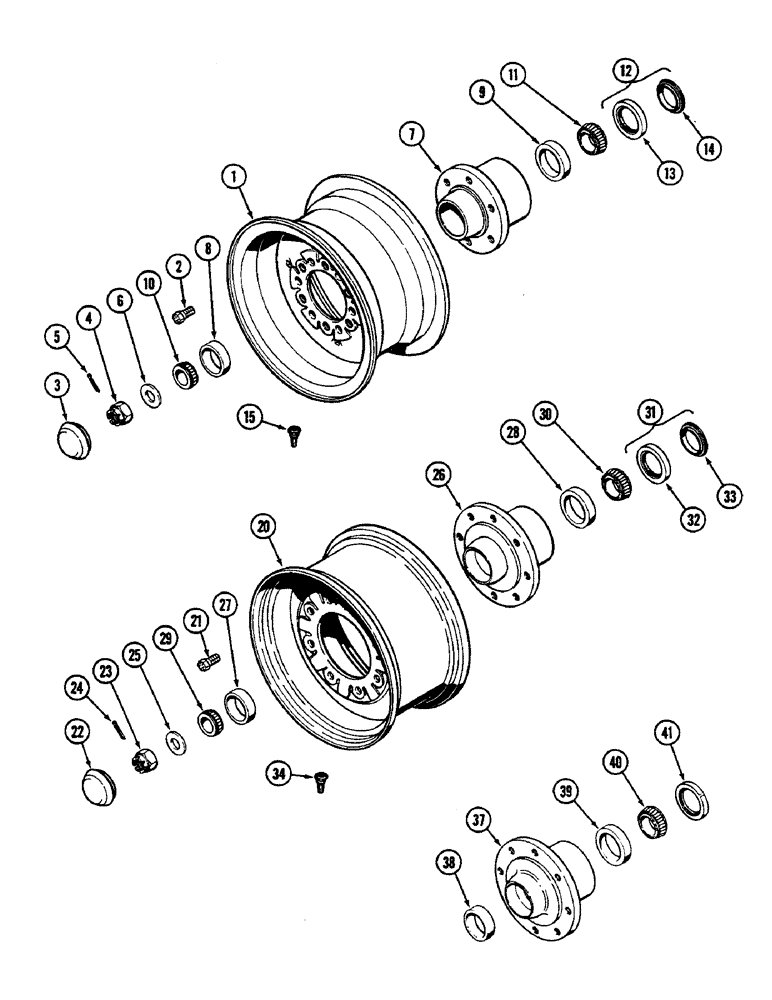

Запчасти Case IH 2290 (5-214) - FRONT WHEEL AND HUB (05) - STEERING

1

A60405

WHEEL

- front (For 10.00 x 16 tire)

2шт.

2

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16-18 x 1-3/32 inch)

12шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex slotted, spindle, 1-1/8 inch NF

2шт.

5

132-306

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle nut

2шт.

7

A57336

HUB

ASSEMBLY - wheel, Includes: Ref. 8, 9

2шт.

8

A27631

CUP

- bearing, outer, 2-7/8 inch OD (73 MM)

1шт.

9

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, 3-17/64 inch OD (83 MM)

1шт.

10

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, 1-3/8 inch ID (35 MM)

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (44 MM)

2шт.

12

A57250

OIL SEAL

OIL SEAL ASSEMBLY, Includes: Ref. 13, 14

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - outer

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - inner

1шт.

15

A38261

VALVE

- tubeless tire

2шт.

20

A62132

WHEEL

- front (For 14L x 16.1 tire)

2шт.

20

A61570

WHEEL

- front (For 11.00 x 16 tire)

2шт.

21

A62567

WHEEL BOLT

BOLT - wheel to hub (Hex special, 5/8-18 x 2 inch)

16шт.

22

A29425

CAP

- hub

2шт.

23

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex slotted, spindle, 1-1/8 inch NF

2шт.

24

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

25

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle nut

2шт.

26

A51157

HUB

- wheel

2шт.

27

A27631

CUP

- bearing, outer, 2-7/8 inch OD (73 MM)

2шт.

28

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner, 3-17/64 inch OD (83 MM)

2шт.

29

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer, 1-3/8 inch ID (35 MM)

2шт.

30

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner, 1-3/4 inch ID (45 MM)

2шт.

31

A57250

OIL SEAL

OIL SEAL ASSEMBLY, Includes: Ref. 32, 33

2шт.

32

NSS

NOT SOLD SEPARAT

SEAL - outer (Reference no. A57247)

2шт.

33

NSS

NOT SOLD SEPARAT

SEAL - inner (Reference no. A57246)

1шт.

34

A38261

VALVE

- tubeless tire

2шт.

A66677

HUB

ASSEMBLY - wheel (Used with A161274 spindle) (Order Components)

2шт.

37

A66678

HUB

- wheel

1шт.

38

G15214

BEARING CUP

CUP - bearing, outer

1шт.

39

A61446

BEARING CUP

CUP - bearing, inner

1шт.

40

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner

1шт.

41

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- inner

1шт.
