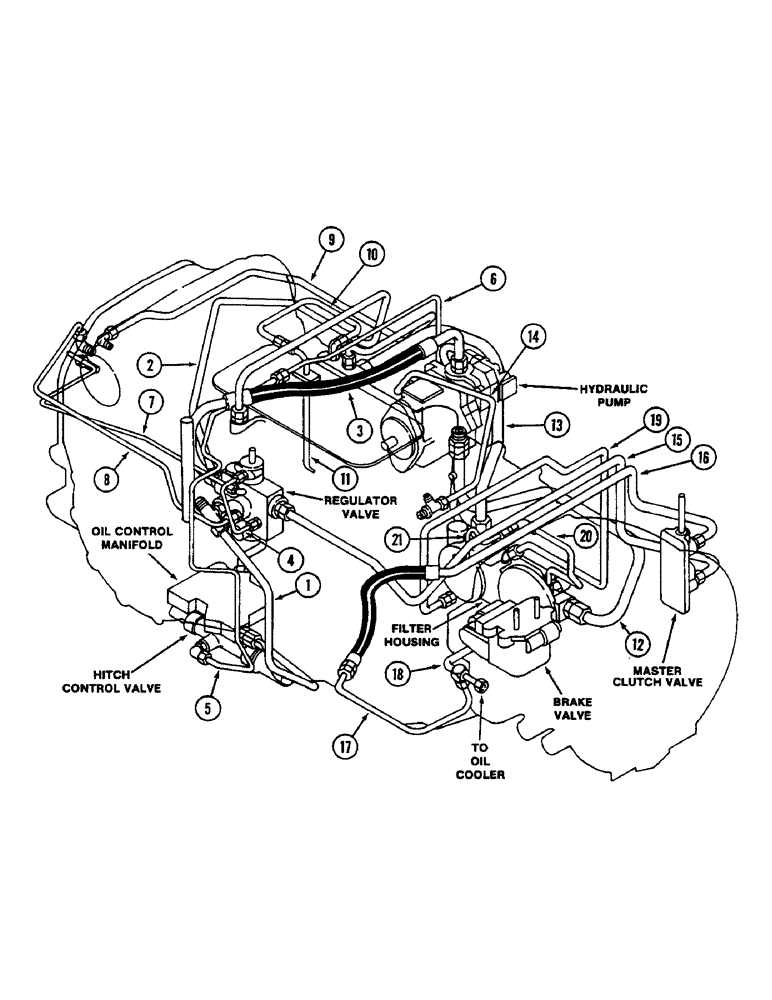

Запчасти Case IH 2290 (1-010) - PICTORIAL INDEX, MAIN HYDRAULICS, MECHANICAL SHIFT (00) - PICTORIAL INDEX

1

Regulator Valve to Manifold Tube, Page 8-471

1шт.

2

Manifold to Lift Cylinder Tube, Page 8-471

1шт.

3

Pump to Regulator Valve Hose, Page 8-359

1шт.

4

PTO Brake Drain Tube, Page 8-359

1шт.

5

Right Hitch Valve Pilot Tube, Page 8-371

1шт.

6

Left Hitch Valve Pilot Tube, Page 8-371

1шт.

7

Regulator Valve to PTO Brake Tube, Page 8-359

1шт.

8

Regulator Valve to PTO Clutch Tube, Page 8-359

1шт.

9

PTO from Pump Lubrication Tube, Page 8-359

1шт.

10

Spiral Bevel Supply Tube, Page 6-249

1шт.

11

Spiral Bevel Lubrication Tube, Page 6-249

1шт.

12

Filter to Pump Suction Tube, Page 8-371

1шт.

13

Transmission Charge Pump Tube, Page 8-377

1шт.

14

Hydraulic Pump Drain Tube, Page 8-371

1шт.

15

Regulator Valve to Clutch Inlet Tube, Page 8-367

1шт.

16

Clutch Valve to Brake Valve Hose, Page 8-367

1шт.

17

Clutch Valve to Brake Valve Tube, Page 8-367

1шт.

18

Brake Valve Manifold Tube, Page 8-367

1шт.

19

Reverse Idler Gear Lubrication Tube, Page 8-377

1шт.

20

Transmission Countershaft Lubrication Tube, Page 8-377

1шт.

21

Transmission Countershaft Internal Lubrication Tube, Page 6-281

1шт.
