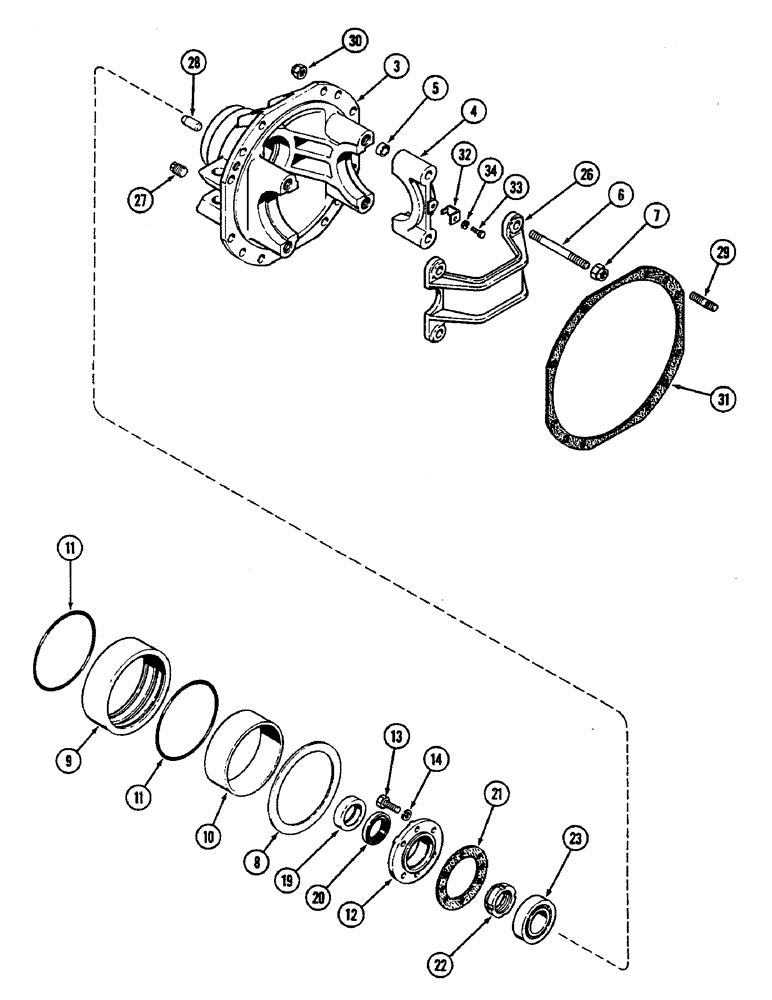

Запчасти Case IH 2290 (5-202) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS (05) - STEERING

A156672

SHAFT

AXLE ASSEMBLY - MFD front (Continued from Figure 5-200), Includes: Ref. 3-34, and Support Assy

1шт.

A48024

SUPPORT

ASSEMBLY - differential (Carraro no. 107764), Includes: Ref. 3-7

1шт.

3

NSS

NOT SOLD SEPARAT

SUPPORT - differential (Order A48024) (Reference no. A48025)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - differential support (Order A48024) (Reference no. A48026)

2шт.

5

A48027

PIN

DOWEL - differential support (Carraro no. 104494)

4шт.

6

A48028

STUD

- differential support (Carraro no. 107491)

4шт.

7

A48148

NUT

- hex lock, M20 x 1.5 (Carraro no. 22441)

4шт.

8

A48023

WASHER

- axle pivot thrust (Carraro no. 107713)

1шт.

9

A48022

BUSHING

- front sleeve (Carraro no. 107714)

2шт.

10

A48021

SLEEVE

- front (Carraro no. 107715)

2шт.

11

S5757

O-RING,6.237" ID x 6.443" OD x 0.103"

- bushing (Carraro no. 28511)

4шт.

12

A48093

SUPPORT

CARRIER - support seal (Carraro no. 107424)

1шт.

13

K260196

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- carrier retaining (Carraro no. 20921) (Order K956926)

6шт.

14

K965425

WASHER

- retaining bolt, lock, M12 (Carraro no. 22861)

6шт.

19

A48095

SEAL

- carrier dust (Carraro no. 107754)

1шт.

20

A48094

OIL SEAL

- carrier oil (Carraro no. 25355)

1шт.

21

A48096

GASKET

- carrier (Carraro no. 107755)

1шт.

22

A48036

NUT

- bearing lock, M50 left thread (Carraro no. 107930)

1шт.

23

A48035

TAPERED BEARING,110mm OD x 42.25mm

BEARING - differential support, rear (Carraro no. 27422)

1шт.

26

A48029

CAP

- differential support (Carraro no. 107414)

1шт.

27

K965379

PIN,M6 x 36, Coiled

PLUG - differential support drain (Carraro no. 92270)

1шт.

28

A48031

PIN

DOWEL - support to axle (Carraro no. 76379)

2шт.

29

A48030

STUD

- support to axle (Carraro no. 106198)

10шт.

30

K965250

NUT

- hex lock, M14 x 1.5 (Carraro no. 22429)

10шт.

31

A48032

GASKET

- support to axle (Carraro no. 107756)

1шт.

32

A48039

LOCK

- bearing (Carraro no. 107489)

2шт.

33

814-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

(Carraro no. 20775) Hex, M8 x 12, 8.8, Full Thd

2шт.

34

K965360

LOCK WASHER,M8

WASHER - lock, (Carraro no. 22856) M8

2шт.
