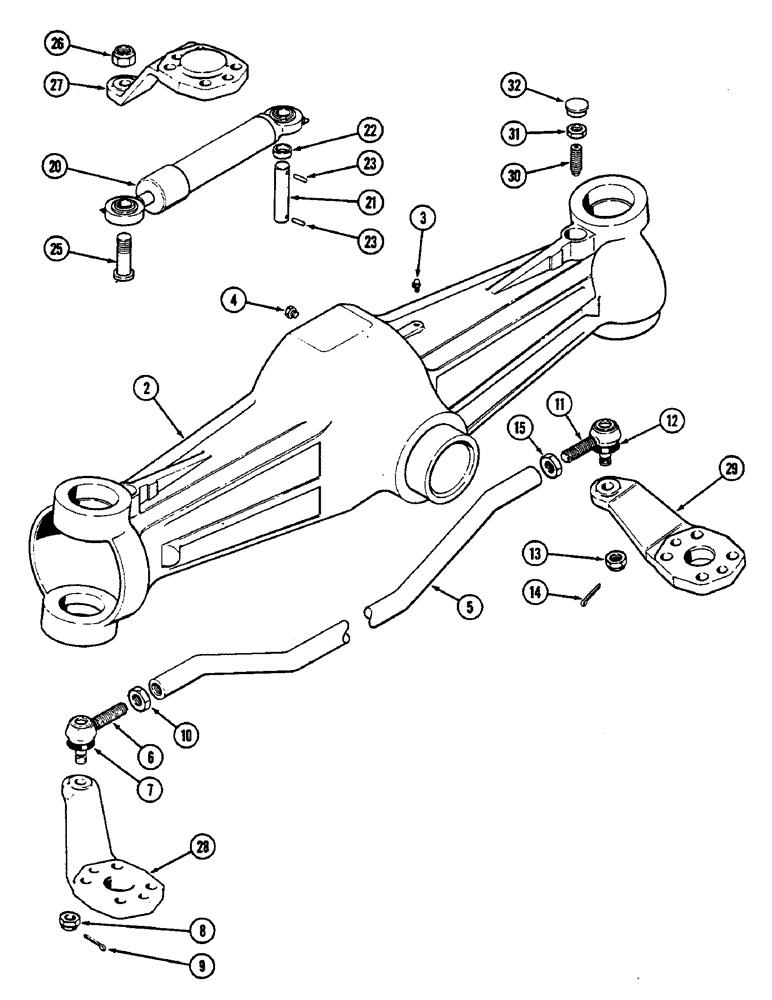

Запчасти Case IH 2290 (5-198) - FRONT AXLE HOUSING AND TIE ROD, MFD TRACTORS (05) - STEERING

A156672

SHAFT

AXLE ASSEMBLY - MFD front (Carraro no. 113114), Includes: Ref. 2-32

1шт.

2

A48020

HOUSING

- front axle (Carraro no. 107374)

1шт.

3

K965231

BREATHER

- axle housing (Carraro no. 104988)

1шт.

4

K965263

PLUG

- housing drain (Carraro no. 92269)

1шт.

5

A48124

ROD

TIE ROD - MFD front axle (Carraro no. 110361)

1шт.

6

A48125

END

- tie rod, right (Carraro no. 107620), Includes: Ref. 7, 8, 9

1шт.

7

A48164

COVER

BOOT - tie rod end (Carraro no. 43965)

1шт.

8

A48163

NUT

- tie rod (Carraro no. 22358)

1шт.

9

632-632

COTTER PIN,M3.2 x 32

- nut retaining (Carraro no. 25567)

1шт.

10

A48126

NUT

- tie rod, right (Carraro no. 107759)

1шт.

11

A48127

END

- tie rod, left (Carraro no. 107619), Includes: Ref. 12, 13, 14

1шт.

12

A48164

COVER

BOOT - tie rod end (Carraro no. 43965)

1шт.

13

A48163

NUT

- tie rod (Carraro no. 22358)

1шт.

14

632-632

COTTER PIN,M3.2 x 32

- nut retaining (Carraro no. 25567)

1шт.

15

A48128

NUT

- tie rod, left (Carraro no. 107760)

1шт.

20

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-184)

2шт.

21

A48120

PIN

- cylinder mounting (Carraro no. 107762)

2шт.

22

A48121

BUSHING

SPACER - mounting pin (Carraro no. 87980)

2шт.

23

A48166

PIN

- upper spirol, M8 x 45 MM (Carraro no. 24447)

4шт.

25

A48122

PIN

- cylinder mounting (Carraro no. 107761)

2шт.

26

A163188

NUT

- mounting pin retaining, hex lock, M22 x 1.5 (Carraro no. 22442)

2шт.

27

A48052

ARM

- steering, upper (Carraro no. 107742)

2шт.

28

A48053

ARM

- steering, lower right (Carraro no. 110363)

1шт.

29

A48054

ARM

- steering, lower left (Carraro no. 110360)

1шт.

30

A48042

ADJUSTMENT SCREW,M18 x 2.5 x 68mm

SCREW - housing bearing adjusting (Carraro no. 107719)

4шт.

31

K956932

JAM NUT

- M18 hex jam (Carraro no. 22132)

4шт.

32

A48043

PLUG

- adjusting screw hole (Carraro no. 107765)

4шт.
