Запчасти Case IH 2290 (5-184) - STEERING CYLINDER, MFD TRACTORS (05) - STEERING

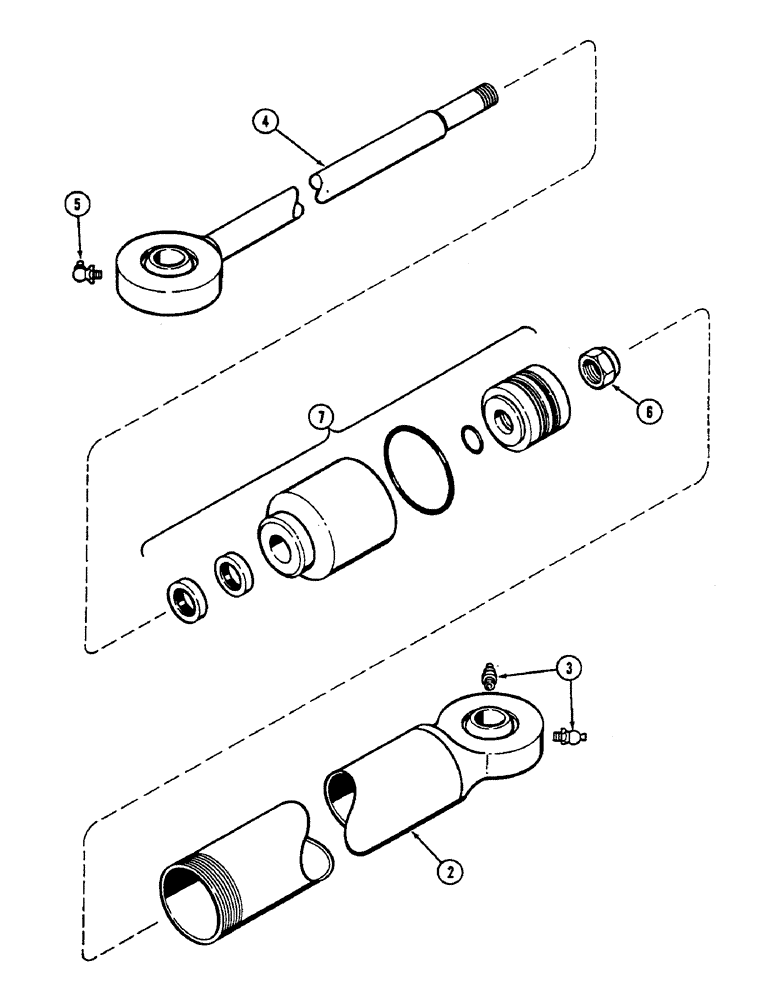

Схема запчастей Case IH 2290 - (5-184) - STEERING CYLINDER, MFD TRACTORS (05) - STEERING
4
6
7
5
3
2

Артикул

Название

Примечание

Количество

A48119

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering (Carraro no. 107745), Includes: All Ref. Below

2шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order A48119)

1шт.

3

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

FITTING - grease, straight (Carraro no. 24210)

2шт.

4

A48167

ROD

- cylinder piston (Carraro no. 43438)

1шт.

5

A48170

FITTING

- grease, 90 degree (Carraro no. 24259)

1шт.

6

K965256

NUT

- piston rod (Carraro no. 22415)

1шт.

7

A48169

SET OF PARTS

KIT - piston and seal repair (Carraro no. 43439)

1шт.

A48168

SET OF PARTS

KIT - seal repair (Carraro no. 43440)

1шт.

Выбрано товаров: 8
